Tempo Nc-520 Netcat Pro Kit With Accessories 52057701
Available*
Item # 800074495
Model # 783310054504
$607.50
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Lan
Test Equipment
LAN- Network
Combination
Tempo Communications Inc
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
Tempo Nc-520 Netcat Pro Kit With Accessories 52057701
Tempo Nc-520 Netcat Pro Kit With Accessories 52057701
Cat No: Nc-520 Tempo Netcat Pro Kit With Accessories Upc: 783310054504 Item: 52057701

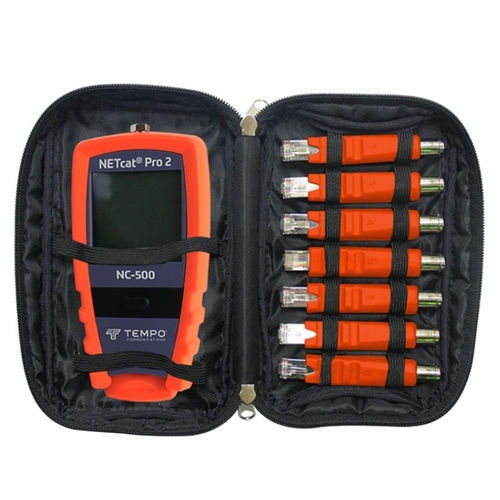

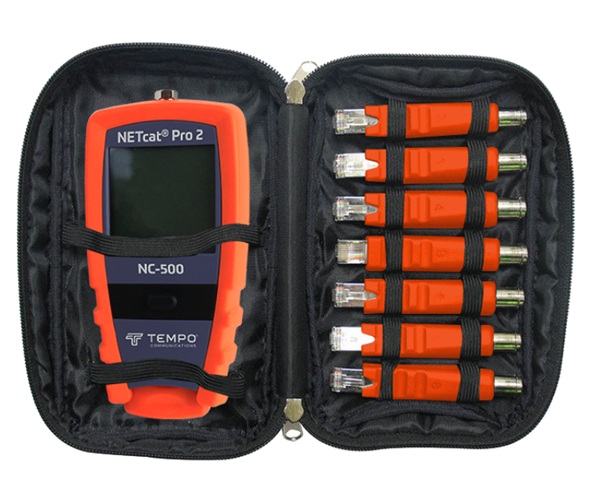

The Nc-520 From Tempo Is The Complete Netcat Pro 2 Kit That Includes Everything An It Technician Should Need To Check Cables, Wiring, Power Over Ethernet (Poe), And Network Service. Operated Using A Back-Lit Touch Screen Display, The Netcat® Pro2 Tests Wiring Continuity And Proper Pair Allocation, Measures The Length Of Cables, Determines If Network Service Is Available And Identifies Poe Wiring.
Netcat® Pro2 Can Uniquely Test Coax Or Twisted Pair Jacks From A Central Location Eight (8) At A Time. Using A Fingertip Or The Built-In Stylus, The Screen Can Be Used To Control And Display A Range Of Tests From Fault Finding To Tdr Length Measurement. The Display Can Be Set To English, Spanish, French, Russian, Ukrainian, Or German Language.
The Nc520 Netcat® Pro 2 Kit Includes:
The Netcat Pro 2 Main Unit With Stylus Removable Remote Jack And Patch Lead Test And Id Unit Twisted Pair (Modular Rj45 Coax(F) And Alligator Clip Test Cords Seven Additional Remote Id And Wiremap Units, Each With Both Rj45 And F (Male) Quick Connect Plugs Carrying Case To Hold Additional Remote Units And All Accessory Cords And Adaptors Of The Nc-500 Main Kit
Specifications
Application Test And Troubleshoot Telephone, Data And Coax Wiring Backlight White Led Battery 9 V Alkaline Battery (Pp3) (Not Included) Buttons Lcd Touch-Screen, Single Momentary Contact Push Button Display 128 X 128 Pixel Lcd, 3" 78Mm Diagonal Interface Connections Rj45 Shielded Jacks F-Type Threaded Female Coaxial Connectors Remote Identifier 2,000 Ft. (609.6 Meters) Maximum Distance Resolution 1 Ft, 0.1 M Tdr Calibration User Selectable Based On A Known Cable Length 40 Pct To 100 Pct In Stepsof 1 Pct
Tdr Range 0 - 2000 Ft (600 M) Weight 0.45 Lb. (200 G) Wiremap 358 Ft. (100 Meters) Maximum Distance Operating Temperature 0°C To 50°C Storage Temperature -20°C To 70°C Accuracy ±2% (To Open) ±4% (To Short Or Id Unit) Or 2 Ft (0.6 M) Whichever Is Greater. Dimensions 3.3 In X 1.4 In X 6.7 In (8.5 Cm X 3.5 Cm X 17 Cm)
Includes Netcat Pro 2 Main Unit With Stylus Removable Remote Jack And Patch Lead Test And Id Unit Twisted-Pair (Modular Rj45), Coax (F) And Alligator Clip Test Cords
Carry Case Tough Polyester Outer, Fine Lining With Elastic Retaining Loops, Pocket For Manual. 9" X 5.5" X 2.5" (23 X 14 X 6 Cm) Office Id Remotes 3.8" (95 Mm) Long With Rj45 And Push-On F Connectors
