GREENLEE DDPM-40S/K03 DD WIRELESS METER,OH/UG SGL K2 52086065 / 783310042952
Available*
Item # 80011830
Model # 783310042952
$4,213.45
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
GREENLEE DDPM-40S/K03 DD WIRELESS METER,OH/UG SGL K2 52086065 / 783310042952
GREENLEE DDPM-40S/K03 DD WIRELESS METER,OH/UG SGL K2 52086065 / 783310042952
Double VisionŽ Dual Display Wireless Phasing Meter 5V-43kV, OH/UG Single Kit 2 Cat #: DDPM-40S/K03 UPC #: 783310042952
Measures voltage from 5V to 43kV line-to-line Can be used individually as voltmeters or together for phasing operations up to 100 ft. (30m) apart Clear indication of phase angle Two LED displays are automatically synchronized during phasing operations Versatile for overhead and underground applications Capacitive Test Point and Peak Hold modes

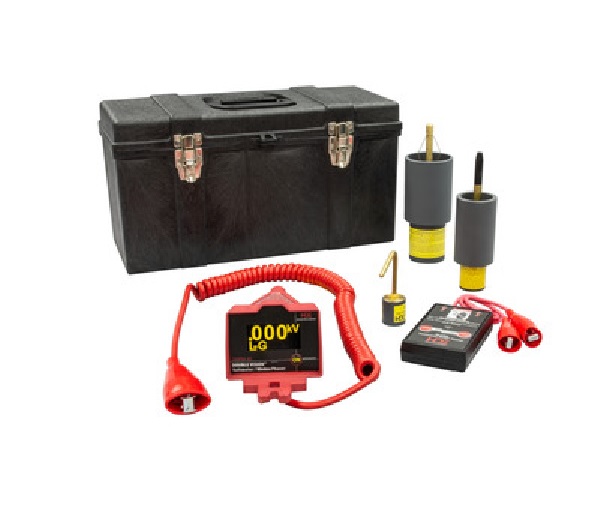

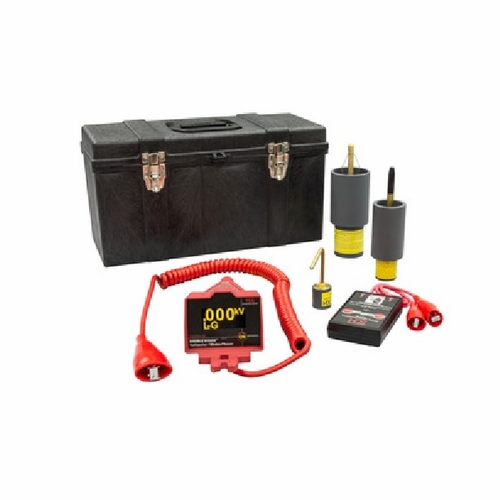

Specifications Sub Brand HDE Type Voltmeter Model DDPM-40 Voltage Rating 5V - 43kV line-to-line, 5V - 25kV line-to-ground Accuracy Within 1% of reading +/- 3 counts (line-to-ground & line-to-line measurements) Display LED display with 0.7" numeral height. Displays 3 digits Operating Temperature -20°F to +120°F (-29°C to +49°C) Dimensions 14" L x 4.1" H x 4.6" W (36 cm x 10 cm x 12 cm) without probes Frequency Rating 25 - 1000Hz AC/DC Phase Indication Phase Angle Included DDPM-40, (1) 025-OLPS-5, ASP-15/25 15kV/25kV UG Bushing Probe, ASP-35U 35kV UG Bushing Probe, PT-5000B Proof Tester, CS-DDVM Case
GREENLEE DDPM-40S/K03 DD WIRELESS METER,OH/UG SGL K2 52086065 / 783310042952
Double VisionŽ Dual Display Wireless Phasing Meter 5V-43kV, OH/UG Single Kit 2 Cat #: DDPM-40S/K03 UPC #: 783310042952
Measures voltage from 5V to 43kV line-to-line Can be used individually as voltmeters or together for phasing operations up to 100 ft. (30m) apart Clear indication of phase angle Two LED displays are automatically synchronized during phasing operations Versatile for overhead and underground applications Capacitive Test Point and Peak Hold modes
Specifications Sub Brand HDE Type Voltmeter Model DDPM-40 Voltage Rating 5V - 43kV line-to-line, 5V - 25kV line-to-ground Accuracy Within 1% of reading +/- 3 counts (line-to-ground & line-to-line measurements) Display LED display with 0.7" numeral height. Displays 3 digits Operating Temperature -20°F to +120°F (-29°C to +49°C) Dimensions 14" L x 4.1" H x 4.6" W (36 cm x 10 cm x 12 cm) without probes Frequency Rating 25 - 1000Hz AC/DC Phase Indication Phase Angle Included DDPM-40, (1) 025-OLPS-5, ASP-15/25 15kV/25kV UG Bushing Probe, ASP-35U 35kV UG Bushing Probe, PT-5000B Proof Tester, CS-DDVM Case
