Greenlee 08290 Head Assembly Rplcmt Es20L 52084517 / 783310082903
Available*
Item # 80012410
Model # 783310082903
$628.26
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
Greenlee 08290 Head Assembly Rplcmt Es20L 52084517 / 783310082903
Greenlee 08290 Head Assembly Rplcmt Es20L 52084517 / 783310082903

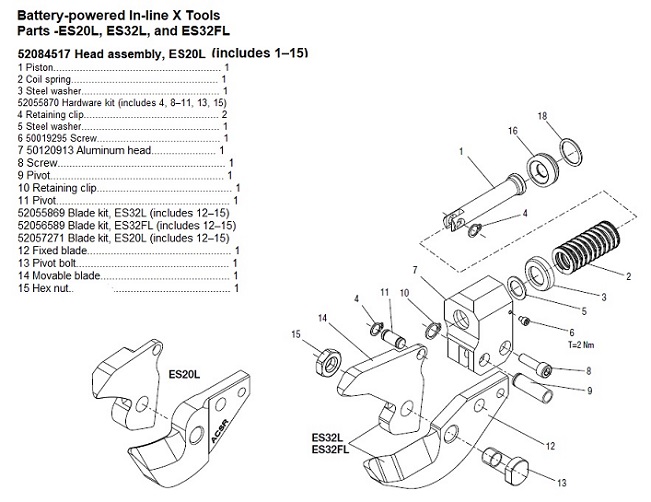

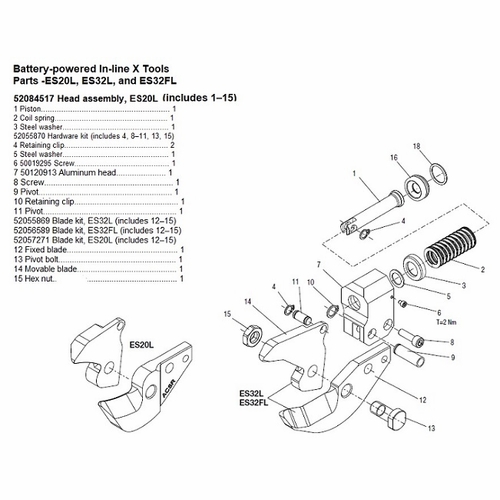

Battery-Powered In-Line X Tools Parts -Es20L, Es32L, And Es32Fl
52084517 Head Assembly, Es20L (Includes 1-15)
1 Piston......................................................... 1 2 Coil Spring.................................................. 1 3 Steel Washer............................................... 1 52055870 Hardware Kit (Includes 4, 8-11, 13, 15) 4 Retaining Clip.............................................. 2 5 Steel Washer............................................... 1 6 50019295 Screw...................................... 1 7 50120913 Aluminum Head.......................1 8 Screw......................................................... 1 9 Pivot........................................................... 1 10 Retaining Clip.............................................. 1 11 Pivot........................................................... 1 52055869 Blade Kit, Es32L (Includes 12-15) 52056589 Blade Kit, Es32Fl (Includes 12-15) 52057271 Blade Kit, Es20L (Includes 12-15) 12 Fixed Blade................................................. 1 13 Pivot Bolt.................................................... 1 14 Movable Blade............................................ 1 15 Hex Nut....................................................... 1
Greenlee 08290 Head Assembly Rplcmt Es20L 52084517 / 783310082903
Battery-Powered In-Line X Tools Parts -Es20L, Es32L, And Es32Fl
52084517 Head Assembly, Es20L (Includes 1-15)
1 Piston......................................................... 1 2 Coil Spring.................................................. 1 3 Steel Washer............................................... 1 52055870 Hardware Kit (Includes 4, 8-11, 13, 15) 4 Retaining Clip.............................................. 2 5 Steel Washer............................................... 1 6 50019295 Screw...................................... 1 7 50120913 Aluminum Head.......................1 8 Screw......................................................... 1 9 Pivot........................................................... 1 10 Retaining Clip.............................................. 1 11 Pivot........................................................... 1 52055869 Blade Kit, Es32L (Includes 12-15) 52056589 Blade Kit, Es32Fl (Includes 12-15) 52057271 Blade Kit, Es20L (Includes 12-15) 12 Fixed Blade................................................. 1 13 Pivot Bolt.................................................... 1 14 Movable Blade............................................ 1 15 Hex Nut....................................................... 1
