Greenlee Hb.7025 Head Assembly (Esc25Lx) 52085484 / 783310086383
Available*
Item # 80012585
Model # 783310086383
$1,152.23
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
Greenlee Hb.7025 Head Assembly (Esc25Lx) 52085484 / 783310086383
Greenlee Hb.7025 Head Assembly (Esc25Lx) 52085484 / 783310086383

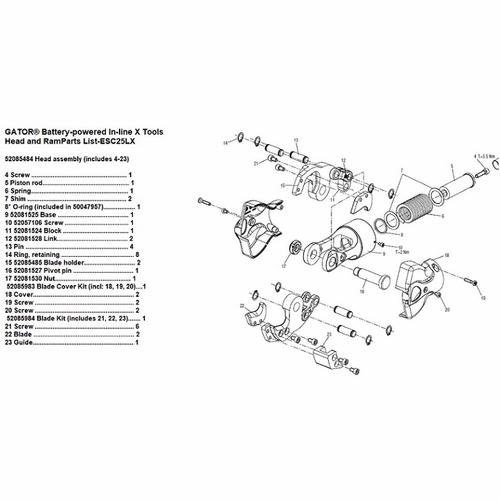

Gator® Battery-Powered In-Line X Tools Head And Ramparts List-Esc25Lx
52085484 Head Assembly (Includes 4-23)
4 Screw ...................................................... 1 5 Piston Rod................................................. 1 6 Spring....................................................... 1 7 Shim ........................................................ 2 8* O-Ring (Included In 50047957).................. 1 9 52081525 Base ........................................ 1 10 52057106 Screw .................................... 1 11 52081524 Block ..................................... 1 12 52081528 Link........................................ 2 13 Pin .......................................................... 4 14 Ring, Retaining ......................................... 8 15 52085485 Blade Holder............................. 2 16 52081527 Pivot Pin .................................. 1 17 52081530 Nut........................................... 1 52085983 Blade Cover Kit (Incl: 18, 19, 20)....1 18 Cover......................................................... 2 19 Screw ........................................................ 2 20 Screw ........................................................ 2 52085984 Blade Kit (Includes 21, 22, 23)....... 1 21 Screw ........................................................ 6 22 Blade ......................................................... 2 23 Guide......................................................... 1
Greenlee Hb.7025 Head Assembly (Esc25Lx) 52085484 / 783310086383

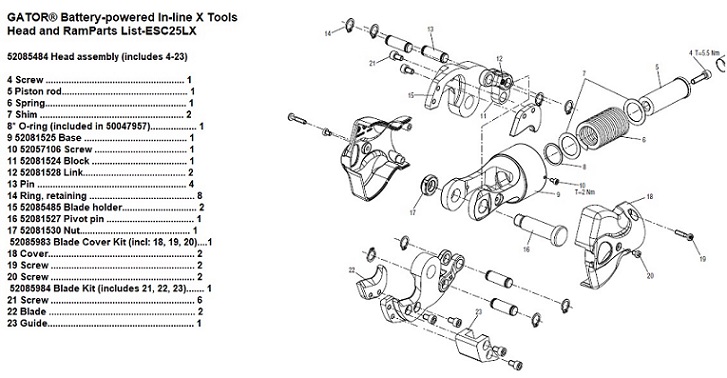

Gator® Battery-Powered In-Line X Tools Head And Ramparts List-Esc25Lx
52085484 Head Assembly (Includes 4-23)
4 Screw ...................................................... 1 5 Piston Rod................................................. 1 6 Spring....................................................... 1 7 Shim ........................................................ 2 8* O-Ring (Included In 50047957).................. 1 9 52081525 Base ........................................ 1 10 52057106 Screw .................................... 1 11 52081524 Block ..................................... 1 12 52081528 Link........................................ 2 13 Pin .......................................................... 4 14 Ring, Retaining ......................................... 8 15 52085485 Blade Holder............................. 2 16 52081527 Pivot Pin .................................. 1 17 52081530 Nut........................................... 1 52085983 Blade Cover Kit (Incl: 18, 19, 20)....1 18 Cover......................................................... 2 19 Screw ........................................................ 2 20 Screw ........................................................ 2 52085984 Blade Kit (Includes 21, 22, 23)....... 1 21 Screw ........................................................ 6 22 Blade ......................................................... 2 23 Guide......................................................... 1
