KLEIN KT4500 Parallel Jaw Grip 4500 Series for ACSR 092644477508
Available*
Item # 80020120
Model # 47750-8
$166.08
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
GRIPS
Tools
Line Construction- Placing
Grips- Strand- Lashing Wire
Klein Tools
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

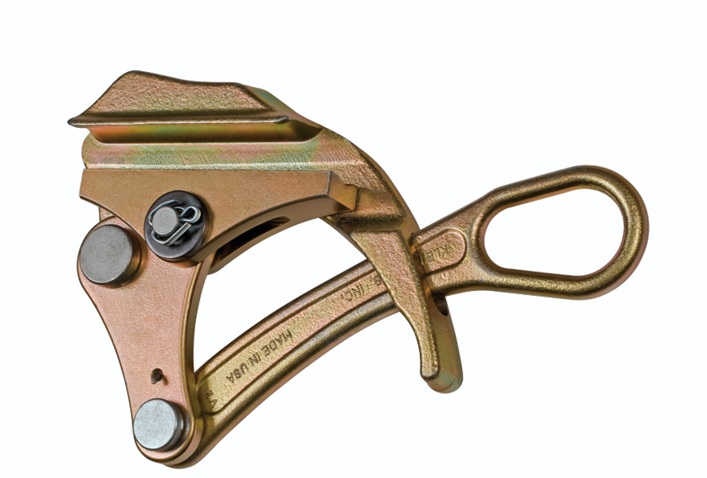

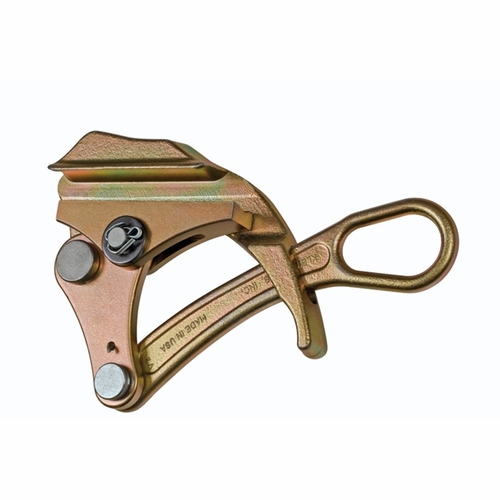

KLEIN KT4500 Parallel Jaw Grip 4500 Series for ACSR 092644477508
KLEIN KT4500 Parallel Jaw Grip 4500 Series for ACSR 092644477508
P/N KT4500 Parallel Jaw Grip 4500 Series For ACSR UPC 092644477508
Versatile grip hold a wider range of ACSR cable sizes reducing the number of grips needed Round serrated jaw holds 0.18 to 0.60-Inch (4.57 to 15.20 mm) diameter cable range Spring closes grip on cable to hold the initial position Spring-loaded for easy one-handed operation Made in USA Large opening in the handle accommodate a wide variety of hooks on hoists, winches and tackle blocks Max Safe Load of 5000-Pound (2268 kg)
Specifications Type: Parallel Jaw Grip Application: Cable Pulling Special Features: Sawtooth Jaw Profile Resists Build-up
Cable Type: ACSR, AAC, Copper Cable Diameter: 0.18'' to 0.6'' (4.57 to 15.2 mm)
Hot Latch: N Swing Latch: N
Spring: Y Locking Handle: N
Jaw Type: Round - Serrated Jaw Length: 4'' (10.2 cm)
Maximum Safe Load: 5000 lb (2268 kg) Weight: 3.8 lb (1.7 kg) UPC: 092644477508
Warnings Grips are to be used for temporary installation, not for permanent anchorage. When used on/or near energized lines, ground, insulate, or isolate grip before pulling. Do not exceed rated capacity. Always match proper size and type of grip to application. Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
KLEIN KT4500 Parallel Jaw Grip 4500 Series for ACSR 092644477508
P/N KT4500 Parallel Jaw Grip 4500 Series For ACSR UPC 092644477508
Versatile grip hold a wider range of ACSR cable sizes reducing the number of grips needed Round serrated jaw holds 0.18 to 0.60-Inch (4.57 to 15.20 mm) diameter cable range Spring closes grip on cable to hold the initial position Spring-loaded for easy one-handed operation Made in USA Large opening in the handle accommodate a wide variety of hooks on hoists, winches and tackle blocks Max Safe Load of 5000-Pound (2268 kg)
Specifications Type: Parallel Jaw Grip Application: Cable Pulling Special Features: Sawtooth Jaw Profile Resists Build-up
Cable Type: ACSR, AAC, Copper Cable Diameter: 0.18'' to 0.6'' (4.57 to 15.2 mm)
Hot Latch: N Swing Latch: N
Spring: Y Locking Handle: N
Jaw Type: Round - Serrated Jaw Length: 4'' (10.2 cm)
Maximum Safe Load: 5000 lb (2268 kg) Weight: 3.8 lb (1.7 kg) UPC: 092644477508
Warnings Grips are to be used for temporary installation, not for permanent anchorage. When used on/or near energized lines, ground, insulate, or isolate grip before pulling. Do not exceed rated capacity. Always match proper size and type of grip to application. Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
