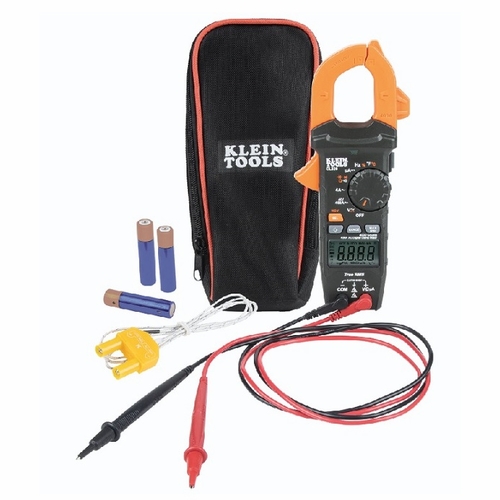

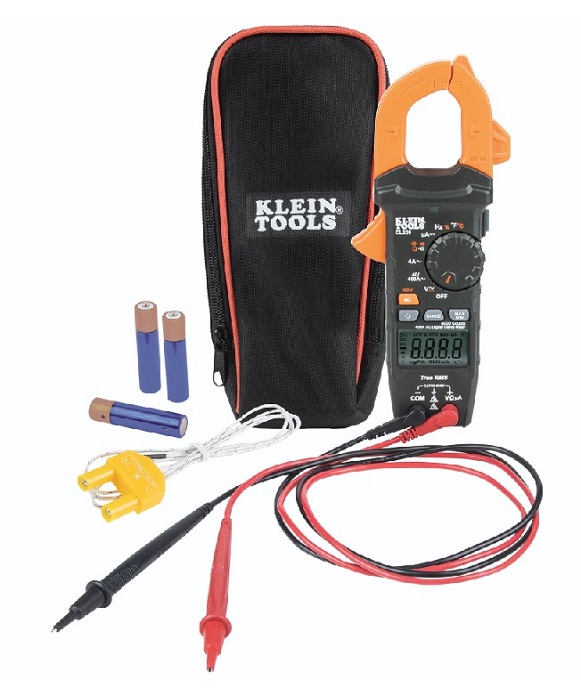

Klein Cl320 Hvac Digital Clamp Meter, Ac Auto-Ranging 400 Amp 0-9264469286-4
Available*
Item # 80020545
Model # CL320
$99.98
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Power
Test Equipment
Electric Power
Voltage
Klein Tools
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
Klein Cl320 Hvac Digital Clamp Meter, Ac Auto-Ranging 400 Amp 0-9264469286-4
Klein Cl320 Hvac Digital Clamp Meter, Ac Auto-Ranging 400 Amp 0-9264469286-4
P/N Cl320 Hvac Digital Clamp Meter Ac Auto-Ranging 400 Amp Upc: 0-9264469286-4
Clamp Meter Measures Ac Current And Ncvt Via Clamp And Ac/Dc Voltage, Resistance, Frequency, Dc Microamps, Capacitance, Duty Cycle, Diode Test, And Continuity Via Test-Leads, And Temperature With Thermocouple Non-Contact Voltage Tester Integrated Into The Clamp Jaw Backlit Lcd For Ease Of Viewing In Low Light Automatically Ranging True Root Mean Squared (Trms) Measurement Technology For Accuracy Test Lead Holder On Side Of Clamp And Optional Magnetic Hanger For Meter (Cat. Nos. 69445 Or 69417) For Hands Free Operation Measures Temperature With A K-Type Thermocouple Probe Auto-Range, Data Hold, And Max/Min Value Auto-Power Off After 10 Minutes To Conserve Battery Life Includes A Carrying Case, Test Leads With Cat Iii/Cat Iv Safety Caps, Thermocouple, Instructions, And 3 X Aaa Batteries Low Battery Indicator And Easily Accessible Battery Compartment Built To Withstand A 6.6-Foot (2 M) Drop Cat Iii 600V, Class 2, Double Insulation Safety Rating Meets Requirements For Use In Basic And Controlled Electromagnetic Environments Like Residential, Office And Light-Industrial Locations
Specifications Type: Hvac Trms Clamp
Application: Measures Ac Current And Ncvt Via Clamp And Ac/Dc Voltage, Resistance, Frequency, Dc Microamp, Capacitance, Duty Cycle, Diode Test, And Continuity Via Test-Leads, And Temperature With Thermocouple
Special Features: Automatically Ranging True Root Mean Squared (Trms) Measurement Technology For Accuracy; Ncvt; Hvac Applications
Material: Abs/Electronics Batteries: 3 X Aaa Auto-Power Off: Yes
Jaw Size: 1.6'' (4.1 Cm) Drop Protection: 6.6' (2 M)
Display: 4000 Count Backlit Lcd Display Size: 1.57'' X 0.87'' (4 X 2.2 Cm)
Functions: Trms, Ac Current, Ncvt, Ac/Dc Voltage, Resistance, Dc Microamp, Frequency, Capacitance, Duty Cycle, Diode Test, Continuity, And Temperature
Auto Ranging: Yes Trms: Yes Voltage: 600V Ac/Dc Frequency: 10 Hz -60 Khz Current: 400 A Ac Capacitance: 4000 µf Ohms (Resistance): 40Mo Ac Voltage: 600V
Dc Voltage: 600V Dc Polarity Indicator: Yes Dc Micro-Amp: 200 µa Temperature Range: -40° - 1832°F (-40° - 1000°C)
Standard: Catiii 600V, Class 2, Double Insulation Safety Rating, Ce Certified
Included: Digital Clamp Meter; Carrying Case; Instructions; Test Leads; Thermocouple; Batteries
Overall Length: 8.45'' (21.5 Cm) Overall Height: 1.5'' (3.8 Cm) Overall Width: 3.5'' (8.9 Cm)
Weight: 11 Oz (314 G) Upc: 092644692864
Warnings Read, Understand And Follow All Instructions, Cautions And Warnings Attached To And /Or Packed With All Test And Measurement Devices Before Each Use. Do Not Attempt To Measure Resistance Or Continuity On Live Circuits. Before Each Use Verify Meter Operation By Measuring A Known Voltage Or Current. Do Not Use The Meter During Electrical Storms Or In Wet Weather, And Do Not Use The Meter Or Test Leads If They Appear To Be Damaged. Usage Of This Meter In Any Way Other Than That Specified By The Manufacturer Can Impair Safe Operation, Resulting In Severe Injury Or Death.
