KLEIN CL390 AC/DC Digital Clamp Meter, Auto-Ranging 400 Amp 0-9264469287-1
Available*
Item # 80020560
Model # CL390
$99.97
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
POWER
Test Equipment
Electric Power
Voltage
Klein Tools
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
KLEIN CL390 AC/DC Digital Clamp Meter, Auto-Ranging 400 Amp 0-9264469287-1
KLEIN CL390 AC/DC Digital Clamp Meter, Auto-Ranging 400 Amp 0-9264469287-1
P/N CL390 AC/DC Digital Clamp Meter Auto-Ranging 400 Amp UPC: 0-9264469287-1
Test lead holder on side of clamp and optional magnetic hanger for meter (Cat. Nos. 69445 or 69417) for hands free operation Non-contact voltage tester integrated into the clamp jaw High-visibility reverse contrast LCD display for improved view ability in all ambient lighting conditions Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy Measures AC/DC current and NCVT via clamp and AC/DC voltage, resistance, frequency, DC microamps, capacitance, duty cycle, diode test, and continuity via test-leads, and temperature with thermocouple Measures temperature with a K-Type thermocouple probe Max/Min, Rel/Zero and Data Hold capability Auto-power off after 10 minutes to conserve battery life Includes a carrying case, test leads with CAT III/CAT IV safety caps, thermocouple, instructions, and 3 x AAA batteries Low battery indicator and easily accessible battery compartment Built to withstand a 6.6-Foot (2 m) drop CAT III 600V, Class 2, Double insulation safety rating Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
Specifications Type: AC/DC Current TRMS Clamp
Application: Measures both AC/DC current and NCVT via the clamp and AC/DC voltage, DC microamp current, resistance, continuity, frequency, duty-cycle, capacitance and tests diodes via the test leads, and temperature with thermocouple
Special Features: Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology for Accuracy; AC/DC Current Measurement; High Visibility Reverse Contrast LCD; NCVT
Material: ABS/Electronics Batteries: 3 x AAA Auto-Power Off: Yes
Jaw Size: 1.6'' (4.1 cm) Drop Protection: 6.6' (2 m) Display: 4000 Count Reverse Contrast LCD
Functions: TRMS, AC/DC Current, NCVT, AC/DC Voltage, Resistance, DC microamp, Frequency, Capacitance, Continuity, Duty Cycle, Diode Test, and Temperature
Voltage: 600 V AC/DC Frequency: 10 Hz to 60 kHz for 8 V to 220 V AC RMS Current: 400 A AC/DC Capacitance: 4000 µF Ohms (Resistance): 40 M?
AC Voltage: 600 V DC Voltage: 600 V DC Polarity Indicator: Yes DC Micro-Amp: 200 µA Temperature Range: -40° - 1832°F (-40° - 1000°C)
Standard: CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified

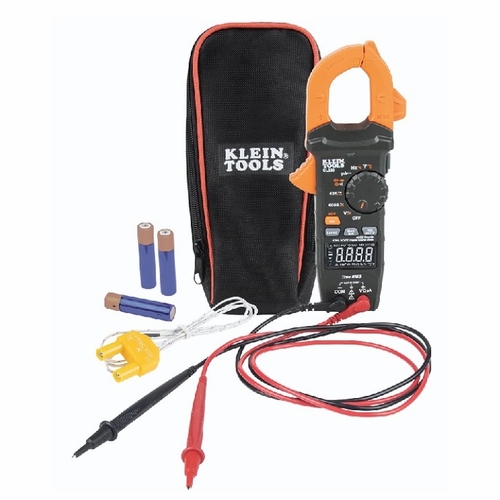

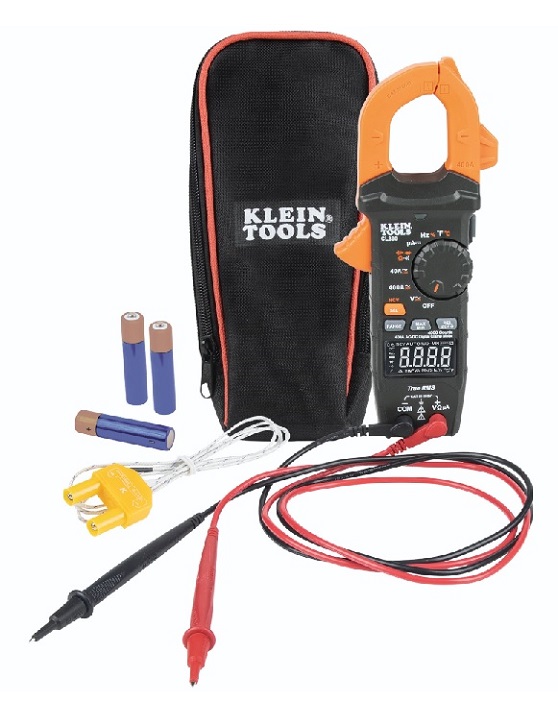

Included: Clamp Meter; Carrying Case; Instructions; Test Leads; Thermocouple; Batteries
Overall Length: 8.45'' (21.5 cm) Overall Height: 1.5'' (3.8 cm) Overall Width: 3.5'' (8.9 cm)
Weight: 11 oz (314 g) UPC: 092644692871
Warnings Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use. Do not attempt to measure resistance or continuity on live circuits. Before each use verify meter operation by measuring a known voltage or current. Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged. Usage of this meter in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death.
KLEIN CL390 AC/DC Digital Clamp Meter, Auto-Ranging 400 Amp 0-9264469287-1
P/N CL390 AC/DC Digital Clamp Meter Auto-Ranging 400 Amp UPC: 0-9264469287-1
Test lead holder on side of clamp and optional magnetic hanger for meter (Cat. Nos. 69445 or 69417) for hands free operation Non-contact voltage tester integrated into the clamp jaw High-visibility reverse contrast LCD display for improved view ability in all ambient lighting conditions Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy Measures AC/DC current and NCVT via clamp and AC/DC voltage, resistance, frequency, DC microamps, capacitance, duty cycle, diode test, and continuity via test-leads, and temperature with thermocouple Measures temperature with a K-Type thermocouple probe Max/Min, Rel/Zero and Data Hold capability Auto-power off after 10 minutes to conserve battery life Includes a carrying case, test leads with CAT III/CAT IV safety caps, thermocouple, instructions, and 3 x AAA batteries Low battery indicator and easily accessible battery compartment Built to withstand a 6.6-Foot (2 m) drop CAT III 600V, Class 2, Double insulation safety rating Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
Specifications Type: AC/DC Current TRMS Clamp
Application: Measures both AC/DC current and NCVT via the clamp and AC/DC voltage, DC microamp current, resistance, continuity, frequency, duty-cycle, capacitance and tests diodes via the test leads, and temperature with thermocouple
Special Features: Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology for Accuracy; AC/DC Current Measurement; High Visibility Reverse Contrast LCD; NCVT
Material: ABS/Electronics Batteries: 3 x AAA Auto-Power Off: Yes
Jaw Size: 1.6'' (4.1 cm) Drop Protection: 6.6' (2 m) Display: 4000 Count Reverse Contrast LCD
Functions: TRMS, AC/DC Current, NCVT, AC/DC Voltage, Resistance, DC microamp, Frequency, Capacitance, Continuity, Duty Cycle, Diode Test, and Temperature
Voltage: 600 V AC/DC Frequency: 10 Hz to 60 kHz for 8 V to 220 V AC RMS Current: 400 A AC/DC Capacitance: 4000 µF Ohms (Resistance): 40 M?
AC Voltage: 600 V DC Voltage: 600 V DC Polarity Indicator: Yes DC Micro-Amp: 200 µA Temperature Range: -40° - 1832°F (-40° - 1000°C)
Standard: CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified
Included: Clamp Meter; Carrying Case; Instructions; Test Leads; Thermocouple; Batteries
Overall Length: 8.45'' (21.5 cm) Overall Height: 1.5'' (3.8 cm) Overall Width: 3.5'' (8.9 cm)
Weight: 11 oz (314 g) UPC: 092644692871
Warnings Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use. Do not attempt to measure resistance or continuity on live circuits. Before each use verify meter operation by measuring a known voltage or current. Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged. Usage of this meter in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death.
