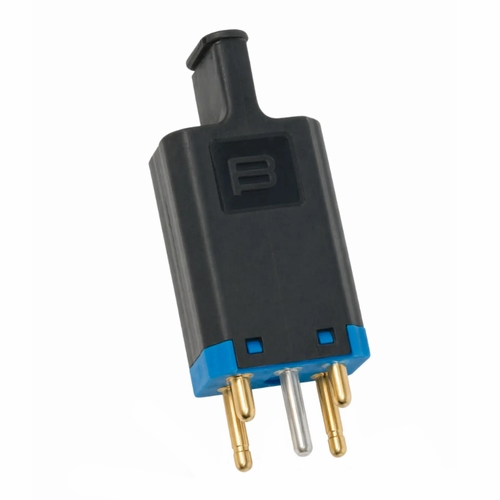

Bourns 2420-31-G 3 Series 5-Pin Gas Discharge Tube (Gdt) Protector Black Gas Fuse Replace 3B1E

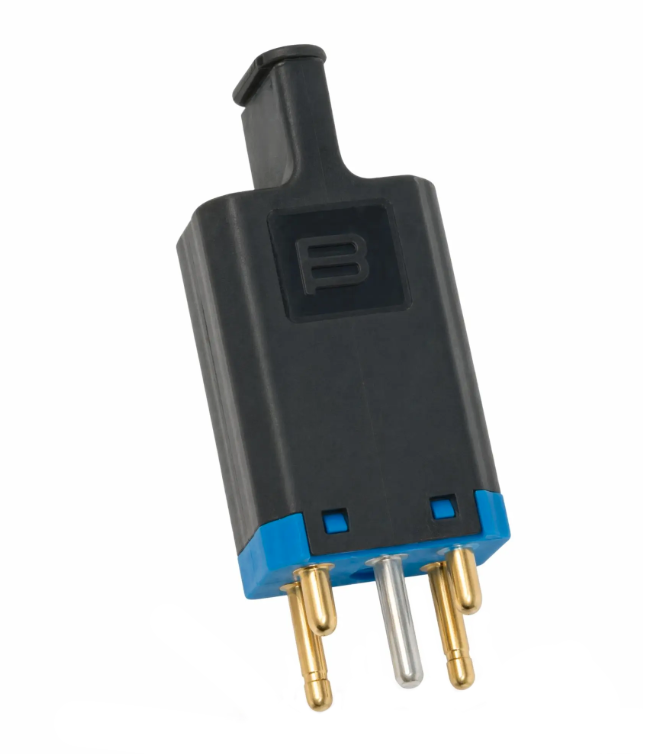

Bourns 2420-31-G 3 Series 5-Pin Gas Discharge Tube (Gdt) Protector New Black Gas Fuse Replace 3B1E

Features

• Superior Protection At A Low Price
• Patented Switch-Grade Fail-Short Device
• Quick Response And High Energy Handling
• Low Capacitance (<2.5 Pf) - Ideal For High-Speed Networks In High Exposure Environments
• Per Ul497 (File E53117)
• Meets Test Requirements Of Telcordia Gr 974, Gr1361, Sbc Sr 5165 And Rus Pe-80
• Solid Brass, Gold Plated Pins
• Test Point Access Option
• Sealed Option For Harsh Environments

The Bourns® 3-Type 2420 Overvoltage Protection Modules Utilize Bourns® Propietary High-Efficiency Gas Discharge Tube With Our Patented Switch-Grade Fail-Short Mechanism To Provide Robust And Reliable Surge And Thermal Overload Protection At A Very Competitive Price. The 2420 Series Is Based On Bourns® Three-Terminal Common Chamber Gdt. This Design Provides Greatly Improved And Balanced Turn-On Characteristics For Overvoltage Protection.The Gdt Is Ul Approved For Use Without A Back-Up Device. Air Back-Up Devices Can Become Contaminated; The Circuitry Of The 2420 Eliminates This Possibility. Our Unique Switch-Grade Fail-Short Device Provides More Reliable Thermal Overload Protection Compared To Commonly Used Solder Pellet Or Insulation Burn-Through Designs. Bourns® 2420 Series 5-Pin Protectors Can Be Used Universally For Broadband Voice And Data Circuits Including Adsl, Adsl2+, Vdsl Isdn And High-Speed Ethernet. The 2420 Series Is An Economical, Reliable And Low Capacitance Choice For Overvoltage Protection Of Copper Pair Circuits.

Characteristics

• Dc Breakdown 300-400 V
• Ac Breakdown @ 60 Hz 300-400 V
• Impulse Breakdown
• 100 V/µs 625 V
• 1000 V/µs 875 V
• Insulation Resistance @ 100 Vdc >1 GΩ
• Insertion Loss @ 100 Mhz Exceeds Category 5
• Return Loss @ 100 Mhz Exceeds Category 5
• Capacitance Tip To Ring @ 1 Mhz <1.25 Pf Typical
• Capacitance Tip Or Ring To Ground @ 1 Mhz <2.50 Pf Typical
• Impulse Reset1
• 52 V, 260 Ma <10 Ms
• 135 V, 200 Ma <10 Ms
• 150 V, 200 Ma <150 Ms

Impulse Life Characteristics (Tip And Ring To Ground Simultaneously)

• 10 A, 10/1000 µs ..................................... >3000 Operations
• 100 A, 10/1000 µs ................................... >300 Operations
• 300 A, 10/1000 µs ................................... >100 Operations
• 500 A, 10/1000 µs ................................... >400 Operations2
• 2,000 A, 10/250 µs .................................. >25 Operations
• 5,000 A, 20/100 µs .................................. >2 Operations
• 20,000 A, 8/20 µs .................................... >1 Operation

AC Life Characteristics (Tip And Ring To Ground Simultaneously)

• 0.5 A Rms Continuous ...................................... >30 Seconds
• 1 A Rms, 1 Second, 600 Ft. Cable ..................... >60 Operations
• 1 A Rms, 1 Second, 1 Mile Cable ...................... >60 Operations
• 10 A Rms, 1 Second ......................................... >5 Operations
• 65 A Rms, 11 Cycles ......................................... >1 Operation2
• 120 A Rms, 0.1 Second .................................... 1 Operation
• High Current Capability And Thermal Operation (Tip And Ring To Ground Simultaneously) ............... >30 A Rms, 15 Min.
• Storage And Operating Temperature ................... -55 To +85 °C

The Bourns® 3-Type 2420 Overvoltage Protection Modules Utilize Bourns® Propietary High-Efficiency Gas Discharge Tube With Our Patented Switch-Grade Fail-Short Mechanism To Provide Robust And Reliable Surge And Thermal Overload Protection At A Very Competitive Price. The 2420 Series Is Based On Bourns® Three-Terminal Common Chamber Gdt. This Design Provides Greatly Improved And Balanced Turn-On Characteristics For Overvoltage Protection.The Gdt Is Ul Approved For Use Without A Back-Up Device. Air Back-Up Devices Can Become Contaminated; The Circuitry Of The 2420 Eliminates This Possibility. Our Unique Switch-Grade Fail-Short Device Provides More Reliable Thermal Overload Protection Compared To Commonly Used Solder Pellet Or Insulation Burn-Through Designs. Bourns® 2420 Series 5-Pin Protectors Can Be Used Universally For Broadband Voice And Data Circuits Including Adsl, Adsl2+, Vdsl Isdn And High-Speed Ethernet. The 2420 Series Is An Economical, Reliable And Low Capacitance Choice For Overvoltage Protection Of Copper Pair Circuits. Rev. G 08/07

• Meets Test Requirements Of Telcordia Gr 974, Gr1361, Sbc Sr 5165 And Rus Pe-80
• Solid Brass, Gold Plated Pins
• Test Point Access Option
• Sealed Option For Harsh Environments

Telcordia Analyzed For Controlled (Non-Sealed) And Uncontrolled, High-Exposure (Sealed) Environments Per Gr 974 And Sbc Sr 5165.
Telcordia Technical Analysis Report Da-1597.
Notes: 1 Network Applied 2 Per Rus Pe-80

How To Order
Model Number Designator
2420 - X Xx - X - Xx

Module Length
3 = Standard: 52.37 Mm (2.06 In.)
7 = Special Short: 41.19 Mm (1.62 In.)

Housing Color/Circuit Type
1 = Black/Standard 6 = Blue/Standard 10 = Yellow/Standard
3 = Red/Special 9 = Orange/Standard Service (Non-Bridgelifter)

Pin Plating
G = Gold Plated N = Tin Plated

Special Options
S = Sealed Case
T = Test Points
St = Sealed Case And Test Points

Examples:
3B1E = 2420-31-G (Black, No Test Points)
3C1E = 2420-31-G-T (Black, With Test Points)
3B3E = 2420-33-G (Red, No Test Points)
3C3E = 2420-33-G-T (Red, With Test Points)
