TII 365 SCREW IN FUSE TWO ELECTRODE SURGE
Item # 10000090
Model # TII 365
Call for FREE Estimate
CLICK OR DIAL 800-422-4823
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
FUSES
Material and Supplies
Fuses- Over Voltage Protectors
Arrestor- Gas Screw In
TII Network Technologies
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
TII 365 SCREW IN FUSE TWO ELECTRODE SURGE
TII 365 SCREW IN FUSE TWO ELECTRODE SURGE
P/N 365 TII SCREW IN FUSE TWO ELECTRODE SURGE

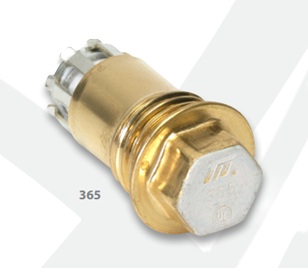

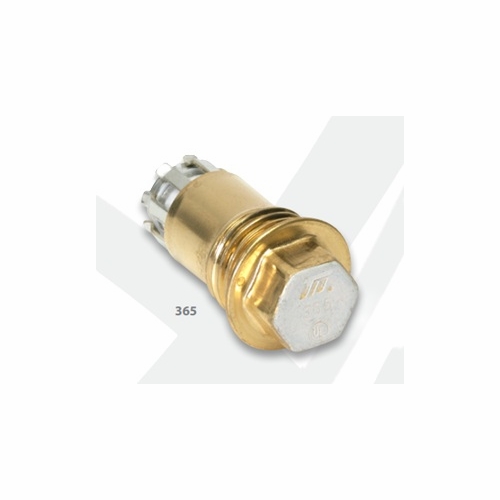

365 Protector Units are designed as direct field replacements for carbon or other gas tube protector assemblies in blocks with 1/2 inch -20 threaded wells.
KEY PRODUCT BENEFITS X Offers extended service life and consistent efficiency with minimal maintenance X Both models consist of a Heavy-Duty two-electrode gas tube, fusible alloy pellet, airgap, protector cage and spring in a threaded shell X Failsafe protection is provided in three ways: 1) On transient surges the two-electrode gas tube operates quickly to shunt the surge to ground 2) The airgap functions as a backup in the unlikely event that the gas tube seal is damaged 3) The failshort mechanism shorts the line to ground in a power cross situation X Tii gas tubes are constructed of selected metal alloy and ceramic materials to insure many years of dependable service X The two-electrode gas tube provides low maintenance cost without the problems associated with carbon airgap protectors X The sealed atmosphere in the gas tube assures fast and consistent responses with a stable breakdown voltage X After a surge has passed, self-restoration is rapid and uniformly predictable
INDUSTRY STANDARDS X Listed to UL 497 X Meets Telcordia GR-1361-CORE X Tested to RUS PE-80
TII 365 SCREW IN FUSE TWO ELECTRODE SURGE
P/N 365 TII SCREW IN FUSE TWO ELECTRODE SURGE
365 Protector Units are designed as direct field replacements for carbon or other gas tube protector assemblies in blocks with 1/2 inch -20 threaded wells.
KEY PRODUCT BENEFITS X Offers extended service life and consistent efficiency with minimal maintenance X Both models consist of a Heavy-Duty two-electrode gas tube, fusible alloy pellet, airgap, protector cage and spring in a threaded shell X Failsafe protection is provided in three ways: 1) On transient surges the two-electrode gas tube operates quickly to shunt the surge to ground 2) The airgap functions as a backup in the unlikely event that the gas tube seal is damaged 3) The failshort mechanism shorts the line to ground in a power cross situation X Tii gas tubes are constructed of selected metal alloy and ceramic materials to insure many years of dependable service X The two-electrode gas tube provides low maintenance cost without the problems associated with carbon airgap protectors X The sealed atmosphere in the gas tube assures fast and consistent responses with a stable breakdown voltage X After a surge has passed, self-restoration is rapid and uniformly predictable
INDUSTRY STANDARDS X Listed to UL 497 X Meets Telcordia GR-1361-CORE X Tested to RUS PE-80
