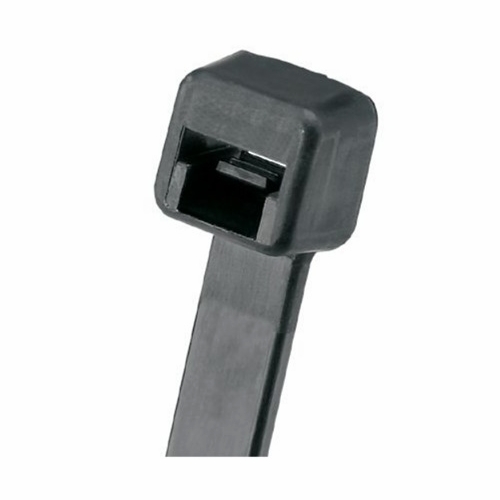

Panduit Plt2S-C0 7.4 Inch Pan-Ty® Locking Cable Tie, Black, Uv Pa6.6, 50Lb, Pk100 07498354046
Available*
Item # 13860370
Model # PLT2S-C0
$18.93
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Materials
Material and Supplies
Tie wraps- Binder Ties-Straps
Supporting- Securing
Panduit Corp
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
Panduit Plt2S-C0 7.4 Inch Pan-Ty® Locking Cable Tie, Black, Uv Pa6.6, 50Lb, Pk100 07498354046
Panduit Plt2S-C0 7.4 Inch Pan-Ty® Locking Cable Tie, Black, Uv Pa6.6, 50Lb, Pk100 07498354046
P/N Plt2S-C0 Pan-Ty® Locking Cable Tie 7.4 Inch L Black Uv Pa6.6 50Lb, Pk100 Upc 07498354046
Panduit Plt2S-C0 Locking Cable Ties Are Designed To Satisfy The Needs Of General Applications, While Delivering Consistent Performance And Reliability. Featuring A Curved Tip To Allow For Easy Pick Up From Flat Surfaces And Faster Initial Threading. Standard Cross Section, 7.4 Inches (188Mm) Length. For Indoor/Outdoor Use, Made Of Weather Resistant Nylon 6.6, Are Black In Color And Come In Packages Of 100.
Specifications Material Description Nylon 6.6 (Uv-Resistant, Weather-Resistant)
Product Type Premium Cable Tie Color Black
Environment Indoor/Outdoor Material Nylon 6.6 Resistance Properties Uv-Resistant, Weather-Resistant
Overall Length (In.) 7.4 Overall Length (Mm) 188
Body Width (In.) 0.19 Body Width (Mm) 4.8 Body Thickness (In.) 0.052 Body Thickness (Mm) 1.3
Maximum Bundle Diameter (In.) 1.88 Maximum Bundle Diameter (Mm) 47.8 Minimum Bundle Diameter (In.) 0.06 Minimum Bundle Diameter (Mm) 1.5
Minimum Loop Tensile Strength (N) 222 Minimum Loop Tensile Strength (Lb) 50
Maximum Operating Temperature (°C) 85 Maximum Operating Temperature (°F) 185 Minimum Operating Temperature (°C) -60 Minimum Operating Temperature (°F) -76
Minimum Installation Temperature (°C) -20 Minimum Installation Temperature (°F) -4
Standards Met Csa Certified, Ul Recognized (File #E56854), Ul 62275 Compliant (Type 2, 21), Rohs Compliant
For Use With Gts-E, Gs2B-E, Gth-E, Gs4H-E, Pts, Ppts, Pth, Sts2, Sth2
Part Features One-Piece Locking Wedge For Consistent Performance And Reliability. Low
Thread Force And High Loop Tensile Strength. Label Dimensions (In.) W X H
Packaging Detail Upc 07498354046 Std. Pkg. Qty. 100 Std. Pkg. Volume (Cf) 0.0321 Std. Ctn. Qty. 1000 Std. Ctn. Volume (Cf) 0.3207
Panduit Plt2S-C0 7.4 Inch Pan-Ty® Locking Cable Tie, Black, Uv Pa6.6, 50Lb, Pk100 07498354046
P/N Plt2S-C0 Pan-Ty® Locking Cable Tie 7.4 Inch L Black Uv Pa6.6 50Lb, Pk100 Upc 07498354046
Panduit Plt2S-C0 Locking Cable Ties Are Designed To Satisfy The Needs Of General Applications, While Delivering Consistent Performance And Reliability. Featuring A Curved Tip To Allow For Easy Pick Up From Flat Surfaces And Faster Initial Threading. Standard Cross Section, 7.4 Inches (188Mm) Length. For Indoor/Outdoor Use, Made Of Weather Resistant Nylon 6.6, Are Black In Color And Come In Packages Of 100.
Specifications Material Description Nylon 6.6 (Uv-Resistant, Weather-Resistant)
Product Type Premium Cable Tie Color Black
Environment Indoor/Outdoor Material Nylon 6.6 Resistance Properties Uv-Resistant, Weather-Resistant
Overall Length (In.) 7.4 Overall Length (Mm) 188
Body Width (In.) 0.19 Body Width (Mm) 4.8 Body Thickness (In.) 0.052 Body Thickness (Mm) 1.3
Maximum Bundle Diameter (In.) 1.88 Maximum Bundle Diameter (Mm) 47.8 Minimum Bundle Diameter (In.) 0.06 Minimum Bundle Diameter (Mm) 1.5
Minimum Loop Tensile Strength (N) 222 Minimum Loop Tensile Strength (Lb) 50
Maximum Operating Temperature (°C) 85 Maximum Operating Temperature (°F) 185 Minimum Operating Temperature (°C) -60 Minimum Operating Temperature (°F) -76
Minimum Installation Temperature (°C) -20 Minimum Installation Temperature (°F) -4
Standards Met Csa Certified, Ul Recognized (File #E56854), Ul 62275 Compliant (Type 2, 21), Rohs Compliant
For Use With Gts-E, Gs2B-E, Gth-E, Gs4H-E, Pts, Ppts, Pth, Sts2, Sth2
Part Features One-Piece Locking Wedge For Consistent Performance And Reliability. Low
Thread Force And High Loop Tensile Strength. Label Dimensions (In.) W X H
Packaging Detail Upc 07498354046 Std. Pkg. Qty. 100 Std. Pkg. Volume (Cf) 0.0321 Std. Ctn. Qty. 1000 Std. Ctn. Volume (Cf) 0.3207
