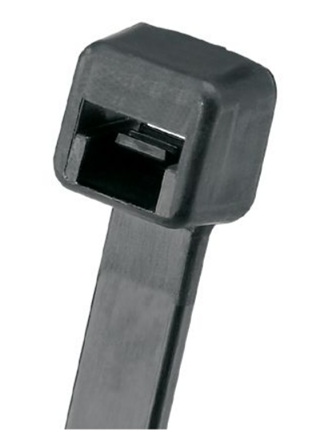

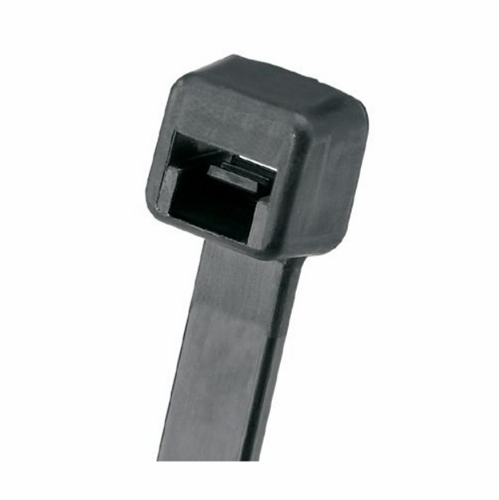

PANDUIT PLT2I-C0 Pan-Ty® Locking Cable Tie, Black, UV PA6.6, 8 inch L, 40lb, PK100 07498354075
Available*
Item # 13860360
Model # PLT2I-C0
$45.24
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
TIE WRAPS
Material and Supplies
Tie wraps- Binder Ties-Straps
Supporting- Securing
Panduit Corp
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
PANDUIT PLT2I-C0 Pan-Ty® Locking Cable Tie, Black, UV PA6.6, 8 inch L, 40lb, PK100 07498354075
PANDUIT PLT2I-C0 Pan-Ty® Locking Cable Tie, Black, UV PA6.6, 8 inch L, 40lb, PK100 07498354075
P/N PLT2I-C0 . Pan-Ty® Locking Cable Tie Black UV PA6.6 8 inch L 40lb, PK100 UPC 07498354075
Panduit PLT2M-C0 Locking Cable Ties are designed to satisfy the needs of weather resistant applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster initial threading. Miniature cross section, 8.0" (203mm) length. Made of Weather Resistant Nylon 6.6 with high resistance to ultraviolet light, are black in color and come in packages of 100.
Specifications Material Description Nylon 6.6 (UV-Resistant, Weather-Resistant) Product Type Premium Cable Tie Color Black Environment Indoor/Outdoor Material Nylon 6.6 Resistance Properties UV-Resistant, Weather-Resistant
Overall Length (In.) 8 Overall Length (mm) 203
Body Width (In.) 0.098 Body Width (mm) 2.5 Body Thickness (In.) 0.043 Body Thickness (mm) 1.1
Maximum Bundle Diameter (In.) 2 Maximum Bundle Diameter (mm) 51 Minimum Bundle Diameter (In.) 0.06 Minimum Bundle Diameter (mm) 1.5
Minimum Loop Tensile Strength (N) 80 Minimum Loop Tensile Strength (lb) 18
Maximum Operating Temperature (°C) 85 Maximum Operating Temperature (°F) 185
Minimum Operating Temperature (°C) -60 Minimum Operating Temperature (°F) -76 Minimum Installation Temperature (°C) -20 Minimum Installation Temperature (°F) -4
Standards Met CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 2, 21), RoHS Compliant
For Use With GTS-E, GS2B-E, PTS, PPTS, STS2
Part Features One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength. Label Dimensions (In.) W x H
Packaging Detail
UPC 07498354076 Std. Pkg. Qty. 100 Std. Pkg. Volume (cf) 0.0321 Std. Ctn. Qty. 1000 Std. Ctn. Volume (cf) 0.3207
