PANDUIT PLC2S-S10-C0 7.9 inch Pan-Ty Weather Locking Clamp Tie PK 100 UPC 07498355097
Available*
Item # 14150500
Model # PLC2S-S10-C0
$27.26
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
TIE WRAPS
Material and Supplies
Tie wraps- Binder Ties-Straps
Supporting- Securing
Panduit Corp
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

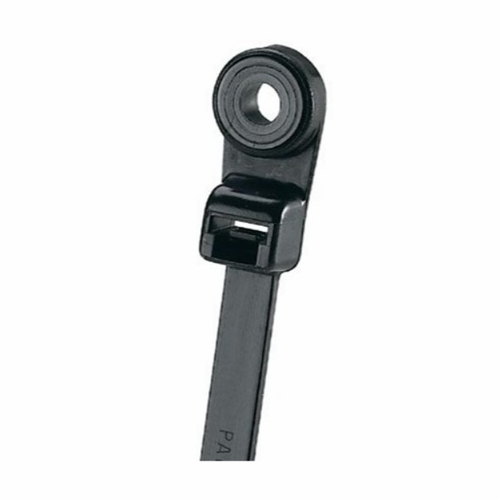

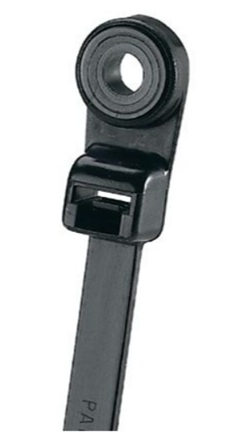

PANDUIT PLC2S-S10-C0 7.9 inch Pan-Ty Weather Locking Clamp Tie PK 100 UPC 07498355097
PANDUIT PLC2S-S10-C0 7.9 inch Pan-Ty Weather Locking Clamp Tie PK 100 UPC 07498355097
P/N PLC2S-S10-C0 Pan-Ty Locking Clamp Tie Weather Resistant Black 7.9 inch length UV PA6.6 M5 50 lb. PK 100 UPC 07498355097
Secure cables easily with our locking clamp tie. Bundle before or after screwing with this durable, flexible, and weather-resistant clamp tie.
Specifications
Product Type Locking Clamp Tie Color Black Environment Indoor/Outdoor Material Nylon 6.6 Resistance Properties UV-Resistant, Weather-Resistant
Overall Length (In.) 7.9 Overall Length (mm) 200.7 Body Width (In.) 0.19 Body Width (mm) 4.8 Body Thickness (In.) 0.047 Body Thickness (mm) 1.2
Maximum Bundle Diameter (In.) 1.84 Maximum Bundle Diameter (mm) 47 Minimum Bundle Diameter (In.) 0.06 Minimum Bundle Diameter (mm) 1.5 Minimum Loop Tensile Strength (N) 222 Minimum Loop Tensile Strength (lb) 50 Screw Size #10
Maximum Operating Temperature (°C) 85 Maximum Operating Temperature (°F) 185 Minimum Operating Temperature (°C) -60 Minimum Operating Temperature (°F) -76 Minimum Installation Temperature (°C) -20 Minimum Installation Temperature (°F) -4
Mounting Hole Width (In.) 0.373 Mounting Hole Width (mm) 9.5 Mounting Hole Diameter (In.) 0.2 Mounting Hole Diameter (mm) 5.1
Standards Met CE Compliant; CSA Certified; UL 62275 Compliant (Type 1, 11); UL Recognized
For Use With GTS-E, GS2B-E, GTH-E, GS4H-E
Application Used to secure a cable bundle to another surface such a control panel, wall or ceiling.
Part Features Used to secure a cable bundle to another surface such as a control panel, communication rack, wall or ceiling.
Packaging Detail UPC 07498355097 Std. Pkg. Qty. 100 Std. Pkg. Volume (cf) 0.0321 Std. Ctn. Qty. 1000 Std. Ctn. Volume (cf) 0.3207
PANDUIT PLC2S-S10-C0 7.9 inch Pan-Ty Weather Locking Clamp Tie PK 100 UPC 07498355097
P/N PLC2S-S10-C0 Pan-Ty Locking Clamp Tie Weather Resistant Black 7.9 inch length UV PA6.6 M5 50 lb. PK 100 UPC 07498355097
Secure cables easily with our locking clamp tie. Bundle before or after screwing with this durable, flexible, and weather-resistant clamp tie.
Specifications
Product Type Locking Clamp Tie Color Black Environment Indoor/Outdoor Material Nylon 6.6 Resistance Properties UV-Resistant, Weather-Resistant
Overall Length (In.) 7.9 Overall Length (mm) 200.7 Body Width (In.) 0.19 Body Width (mm) 4.8 Body Thickness (In.) 0.047 Body Thickness (mm) 1.2
Maximum Bundle Diameter (In.) 1.84 Maximum Bundle Diameter (mm) 47 Minimum Bundle Diameter (In.) 0.06 Minimum Bundle Diameter (mm) 1.5 Minimum Loop Tensile Strength (N) 222 Minimum Loop Tensile Strength (lb) 50 Screw Size #10
Maximum Operating Temperature (°C) 85 Maximum Operating Temperature (°F) 185 Minimum Operating Temperature (°C) -60 Minimum Operating Temperature (°F) -76 Minimum Installation Temperature (°C) -20 Minimum Installation Temperature (°F) -4
Mounting Hole Width (In.) 0.373 Mounting Hole Width (mm) 9.5 Mounting Hole Diameter (In.) 0.2 Mounting Hole Diameter (mm) 5.1
Standards Met CE Compliant; CSA Certified; UL 62275 Compliant (Type 1, 11); UL Recognized
For Use With GTS-E, GS2B-E, GTH-E, GS4H-E
Application Used to secure a cable bundle to another surface such a control panel, wall or ceiling.
Part Features Used to secure a cable bundle to another surface such as a control panel, communication rack, wall or ceiling.
Packaging Detail UPC 07498355097 Std. Pkg. Qty. 100 Std. Pkg. Volume (cf) 0.0321 Std. Ctn. Qty. 1000 Std. Ctn. Volume (cf) 0.3207
