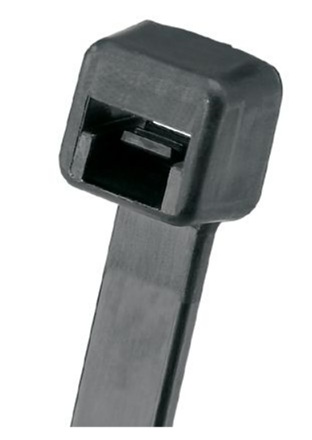

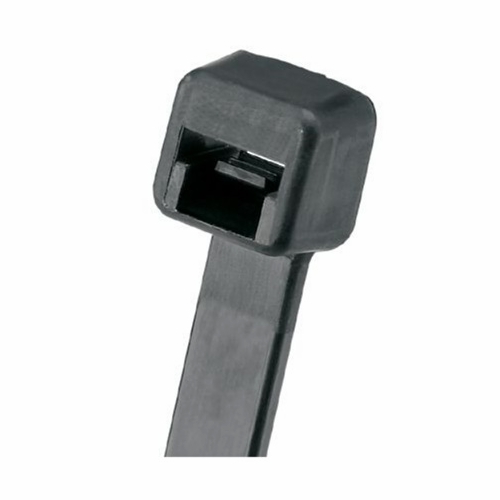

PANDUIT PLT4H-L0 14.5 inch Pan-Ty® Locking Cable Tie, Black, UV PA6.6,120lb, PK50 07498354092
PANDUIT PLT4H-L0 14.5 inch Pan-Ty® Locking Cable Tie, Black, UV PA6.6,120lb, PK50 07498354092
P/N PLT4H-L0 Pan-Ty® Locking Cable Tie 14.5 inch Length Black UV PA6.6 120lb PK50 UPC 07498354092
Panduit PLT4H-L0 Locking Cable Ties are designed to satisfy the needs of general applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster initial threading. Light-heavy cross section, 14.5 inch (368mm) length. For Indoor/Outdoor use, made of Weather Resistant Nylon 6.6, are black in color and come in packages of 50.
Specifications Material Description Nylon 6.6 (UV-Resistant, Weather-Resistant) Product Type Premium Cable Tie Color Black Environment Indoor/Outdoor Material Nylon 6.6 Resistance Properties UV-Resistant, Weather-Resistant
Overall Length (In.) 14.5 Overall Length (mm) 368
Body Width (In.) 0.3 Body Width (mm) 7.6
Body Thickness (In.) 0.075 Body Thickness (mm) 1.9
Maximum Bundle Diameter (In.) 4 Maximum Bundle Diameter (mm) 102 Minimum Bundle Diameter (In.) 0.188 Minimum Bundle Diameter (mm) 4.8
Minimum Loop Tensile Strength (N) 534 Minimum Loop Tensile Strength (lb) 120
Maximum Operating Temperature (°C) 85 Maximum Operating Temperature (°F) 185 Minimum Operating Temperature (°C) -60 Minimum Operating Temperature (°F) -76
Minimum Installation Temperature (°C) -20 Minimum Installation Temperature (°F) -4
Standards Met CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 2, 21), RoHS Compliant
For Use With GTH-E, GS4H-E, GS4EH-E, PTH, STH2, ST3EH
Part Features One piece construction provides consistent, reliable performance. Low thread force. Label Dimensions (In.) W x H
Packaging Detail UPC 07498354092 Std. Pkg. Qty. 50 Std. Pkg. Volume (cf) 0.0534 Std. Ctn. Qty. 500 Std. Ctn. Volume (cf) 0.5339
