PANDUIT PLT6H-L0 20.9 inch Pan-Ty® Locking Cable Tie Weather Resistant PK50 07498354107
Available*
Item # 14084975
Model # PLT6H-L0
$179.55
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
TIE WRAPS
Material and Supplies
Tie wraps- Binder Ties-Straps
Supporting- Securing
Panduit Corp
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
PANDUIT PLT6H-L0 20.9 inch Pan-Ty® Locking Cable Tie Weather Resistant PK50 07498354107
PANDUIT PLT6H-L0 20.9 inch Pan-Ty® Locking Cable Tie Weather Resistant PK50 07498354107
P/N PLT6H-L0 Pan-Ty® Locking Cable Tie 20.9 inch Length Weather Resistant PK50 UPC 07498354107

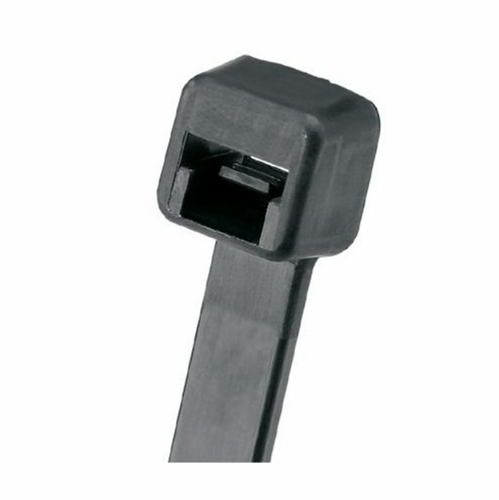

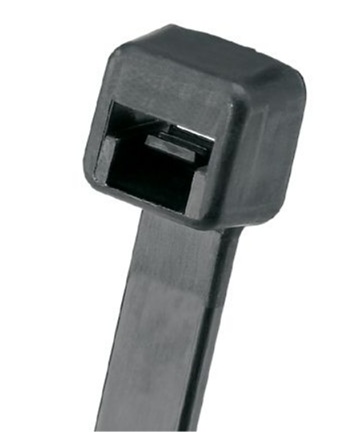

Panduit PLT6H-L0 Locking Cable Ties are designed to satisfy the needs of weather resistant applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster initial threading. Heavy cross section, 20.9" (530mm) length. Made of Weather Resistant Nylon 6.6, are black in color and come in packages of 50.
Specifications Material Description Nylon 6.6 (UV-Resistant, Weather-Resistant) Product Type Premium Cable Tie Color Black Environment Indoor/Outdoor Material Nylon 6.6 Resistance Properties UV-Resistant, Weather-Resistant
Overall Length (In.) 20.9 Overall Length (mm) 530
Body Width (In.) 0.35 Body Width (mm) 8.9 Body Thickness (In.) 0.078 Body Thickness (mm) 2
Maximum Bundle Diameter (In.) 6 Maximum Bundle Diameter (mm) 152 Minimum Bundle Diameter (In.) 0.188 Minimum Bundle Diameter (mm) 4.8
Minimum Loop Tensile Strength (N) 778 Minimum Loop Tensile Strength (lb) 175
Maximum Operating Temperature (°C) 85 Maximum Operating Temperature (°F) 185 Minimum Operating Temperature (°C) -60 Minimum Operating Temperature (°F) -76
Minimum Installation Temperature (°C) -20 Minimum Installation Temperature (°F) -4
Standards Met CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 1, 11), RoHS Compliant
For Use With GTH-E, GS4H-E, GS4EH-E, PTH, STH2, ST3EH
Part Features One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength. Label Dimensions (In.) W x H
Packaging Detail
UPC 07498354107 Std. Pkg. Qty. 50 Std. Pkg. Volume (cf) 0.1174 Std. Ctn. Qty. 500 Std. Ctn. Volume (cf) 1.1740
