PROGRESSIVE 2003 PULSER LOCATOR W/A FRAME, REPAIRED

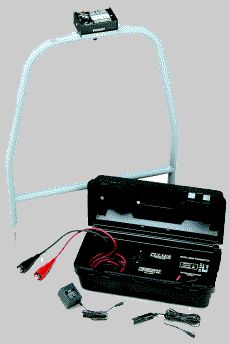

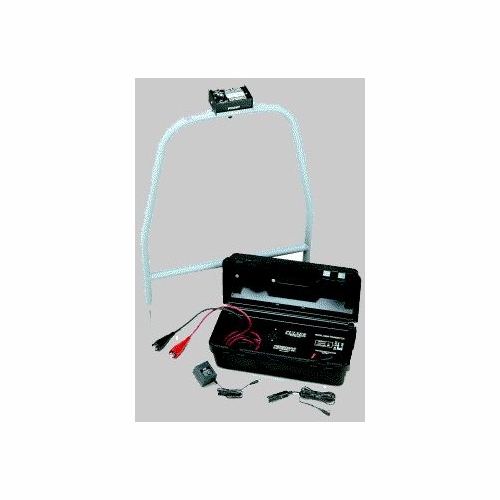

GREENLEE 2003 PULSER LOCATOR W/A FRAME, REPAIRED Completes your buried cable troubleshooting tool set. The Model 2003 Pulser Cable Fault Locator pinpoints even the smallest breaks in buried cable insulation. Portable transmitter pulses a high voltage signal that radiates into the earth at fault locations. With the A-frame mounted receiver, a visual analog meter points the way to the source of the voltage. Identifies multiple faults on a single wire, indicating the need to replace instead of repair. Complete with a rechargeable transmitter, receiver, A-frame, ground stake, 120VAC charger, 12 volt DC cigarette lighter adapter and complete operating instructions. Extra long test leads feature heavy duty alligator clips for use on multiple cable types. Built to withstand years of demanding service, the 2003 Pulser Fault Locator is a great complement to any buried cable locator.

Pinpoints underground wire breaks & insulation nicks and eliminates time wasted digging.

Specifications: Power; receiver, one 9v battery; transmitter, one 12V rechargeable battery Battery life; transmitter, 23 hrs per charge; receiver, 200 hrs Transmitter power; 3400 VDC peak Voltage protection; 240 VAC, 400 VDC Transmitter; aluminum housing, polyethylene case, 6.5 x 8.5 x 17" in case Receiver; powder coated aluminum, 3.25 x 21.75 x 33.5" on A-frame Total weight; 12.5 lbs

shipping dimensions and weights (2 packages) 21"x12"x11" 12 lbs 25"x3"x35" 5 lbs
