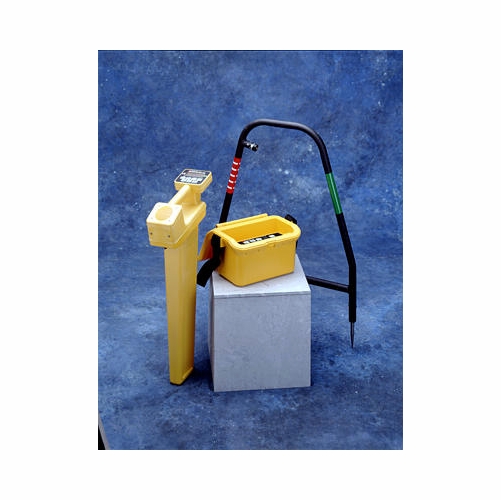

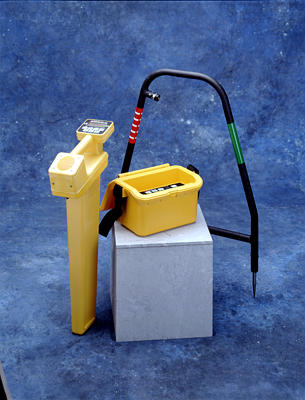

3M DYNATEL 2273M-ID/UC3W/RT FAULT LOCATOR W/MARKER ID 7000132846 80611140940

3M DYNATEL 2273M-IDUC3W/RT FAULT LOCATOR W/MARKER ID NEW 80611140940 Precise location of sheath (earth return) faults. The 3M Dynatel 2273M and 2273M-iD Cable/Pipe and Fault Locators can precisely locate conductor or sheath (earth return) faults on both short and long cable sections faster than ever before. The transmitter unit sends a trace signal simultaneously with a fault-locate signal, allowing the operator to use the cable-locate function when locating faults in long cable sections. Fault strength is indicated on the receiver liquid crystal display (LCD) screen, allowing minor faults to be ignored, if desired. Up to two fault readings may be stored for quick reference.

2273M-iD Directional peak, directional null single peak locate modes Large backlit, high resolution graphic display Push button cable/pipe depth readout with continuous depth measurement mode Active duct probe (Sonde) depth measurement Signal current measurement Toning amplifier function Cable/pair identification Marker alert mode while path tracing Wet section tagging Digital fault strength indicator Expander amplifier Pre-set auxiliary frequencies for power, CATV, radio and long haul fiber applications Four user-definable auxiliary frequencies Self-calibration mode, on demand PC interface via standard RS232 serial port User-configurable features and interface Detects all seven EMS marker frequencies Marker-Link and Locator PC tools software ID marker read/write capability Dual marker frequency search-simultaneous Marker depth estimation Conductor or sheath (earth return) fault locating

3 watt version.
