FLUKE PRO3000 TONE AND PROBE KIT 26000900
Available*
Item # 24885800
Model # 26000900
$133.65
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
TONE
Test Equipment
Tone Generators- Probes-Amplifiers
Kits
Fluke Networks
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
FLUKE PRO3000 TONE AND PROBE KIT 26000900 NEW
FLUKE PRO3000 TONE AND PROBE KIT 26000900 NEW

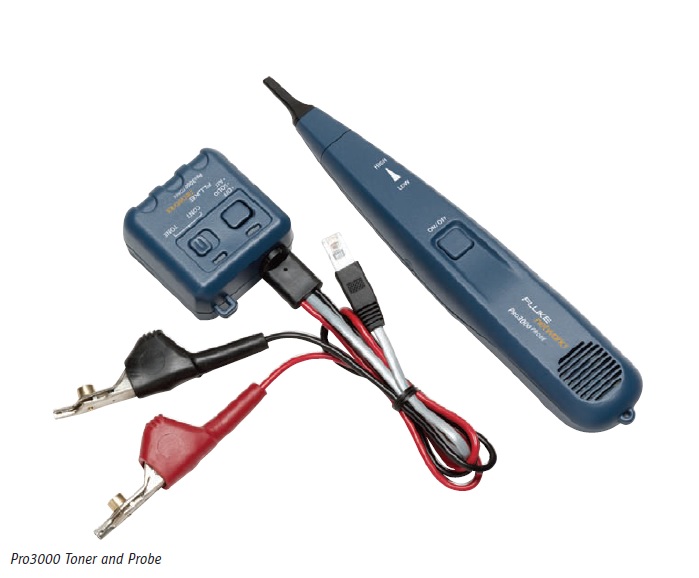

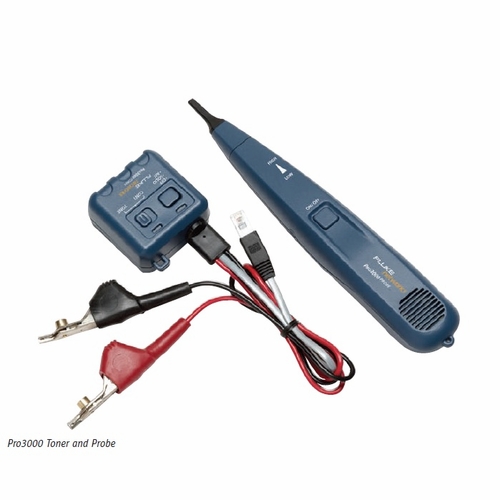

Model # 26000900 Pro3000 Analog Tone & Probe Kit
Includes Pro3000, Angled bed-of-nails clips for individual pairs/RJ-11 connector for use on telephone jacks and case
Pro3000 Analog Toner Specifications User interface: Slide switch selects Continuity or Tone Mode Push button switch selects SOLID, ALT or OFF Tone mode LED Continuity/Polarity LED
Solid Frequency 1000 Hz nominal Alternating Frequency 1000/1500 Hz nominal Over Voltage Protection 60 Vdc in Toner/Polarity Mode Output Power in Tone Mode 8 dbm into 600 ohms Output Voltage Level in Continuity Mode 8 Vdc with fresh battery Battery 9V alkaline Temperature Operating: -20° C to 60° C, Storage: -40° C to 70° C Case dimensions 2.7 in. x 2.4 in. x 1.4 in. (6.9 cm x 6.1 cm x 3.6 cm)
Pro3000 Analog Probe Specifications User interface: ON/OFF push button Volume dial Replaceable tip 3.5 mm earphone jack
Battery 9V alkaline Temperature Operating: -20° C to 60° C, Storage: -40° C to 70° C Case dimensions 9.8 in. x 1.6 in. x 1.3 in. (24.9 cm x 4.1 cm x 3.3 cm)
Product Highlights Pro3000 Series Tone & Probe Kits tone and trace inactive wiring.
Clear - Innovative filter technology blocks interference (buzz) that makes tracing difficult (F models only) Precise SmartTone technology provides five distinct tones for exact pair identification Sends loud tone up to 10 miles (16 kilometers) on most cables Loud speaker on probe makes the tone easier to hear through drywall, wood, and other enclosures Angled bed-of-nails clips allow easy access to individual pairs RJ-11 connector is ideal for use on telephone jacks Attach nylon pouch (included in kit) to your belt for easy transport
FLUKE PRO3000 TONE AND PROBE KIT 26000900 NEW
Model # 26000900 Pro3000 Analog Tone & Probe Kit
Includes Pro3000, Angled bed-of-nails clips for individual pairs/RJ-11 connector for use on telephone jacks and case
Pro3000 Analog Toner Specifications User interface: Slide switch selects Continuity or Tone Mode Push button switch selects SOLID, ALT or OFF Tone mode LED Continuity/Polarity LED
Solid Frequency 1000 Hz nominal Alternating Frequency 1000/1500 Hz nominal Over Voltage Protection 60 Vdc in Toner/Polarity Mode Output Power in Tone Mode 8 dbm into 600 ohms Output Voltage Level in Continuity Mode 8 Vdc with fresh battery Battery 9V alkaline Temperature Operating: -20° C to 60° C, Storage: -40° C to 70° C Case dimensions 2.7 in. x 2.4 in. x 1.4 in. (6.9 cm x 6.1 cm x 3.6 cm)
Pro3000 Analog Probe Specifications User interface: ON/OFF push button Volume dial Replaceable tip 3.5 mm earphone jack
Battery 9V alkaline Temperature Operating: -20° C to 60° C, Storage: -40° C to 70° C Case dimensions 9.8 in. x 1.6 in. x 1.3 in. (24.9 cm x 4.1 cm x 3.3 cm)
Product Highlights Pro3000 Series Tone & Probe Kits tone and trace inactive wiring.
Clear - Innovative filter technology blocks interference (buzz) that makes tracing difficult (F models only) Precise SmartTone technology provides five distinct tones for exact pair identification Sends loud tone up to 10 miles (16 kilometers) on most cables Loud speaker on probe makes the tone easier to hear through drywall, wood, and other enclosures Angled bed-of-nails clips allow easy access to individual pairs RJ-11 connector is ideal for use on telephone jacks Attach nylon pouch (included in kit) to your belt for easy transport
