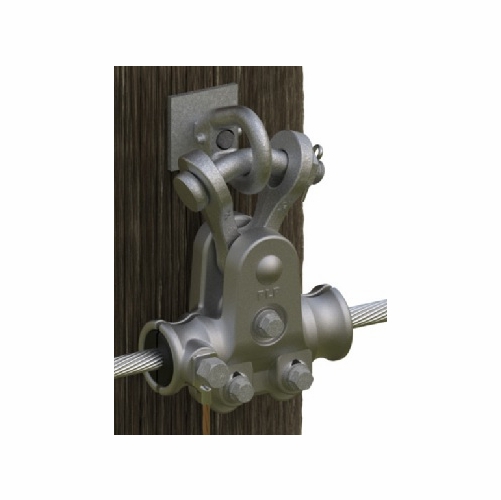

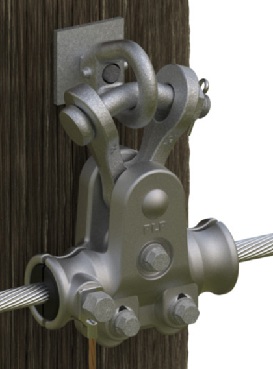

PLP 4700310 FIBERLIGN Cushioned Suspension *Ins 0.491 - 0.516 inches
Available*
Item # 30187985
Model # 4700310
$100.25
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
OPGW
Fiber Optic Products
Fiber Optic Infrastructure
Fiber Cable Suspension Clamps
Preformed Line Products
Fiber Clamps For OPGW Cable
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
PLP 4700310 FIBERLIGN Cushioned Suspension *Ins 0.491 - 0.516 inches
PLP 4700310 FIBERLIGN Cushioned Suspension *Ins 0.491 - 0.516 inches
P/N 4700310 Preformed Line Products FIBERLIGN Cushioned Suspension *Ins Cable Range Diameter 0.491 - 0.516 inches (11.8 - 12.4 mm)
The FIBERLIGN EZ Cushion Suspension uses elastomer inserts to reduce static and dynamic stresses at the support point in the OPGW system.
Features
Field-proven, elastomer cushion inserts guard against abrasion, wear, and fatigue
Inserts have a unique hourglass shape that helps expand the angle rating to 30 degrees
Structural reinforcing rods are not needed for installation; strain relief relies solely on the cushion inserts.
All fasteners are factory-installed and captive, eliminating lost hardware in the field
Fastener-retained housing halves allow the suspension to be installed over OPGW simply by loosening the captive fasteners and spreading the halves open
Cushion-style suspension reduces dynamic strain levels on OPGW by 40% to 50% when compared to bare suspension clamps
An optional ground wire assembly can be included with the suspension
The FIBERLIGN EZ Cushion Suspension has been thoroughly tested for vibration, mechanical loading, and optical attenuation in accordance with IEEE Standard 1138 and IEEE Standard 1591.1
PLP 4700310 FIBERLIGN Cushioned Suspension *Ins 0.491 - 0.516 inches
P/N 4700310 Preformed Line Products FIBERLIGN Cushioned Suspension *Ins Cable Range Diameter 0.491 - 0.516 inches (11.8 - 12.4 mm)
The FIBERLIGN EZ Cushion Suspension uses elastomer inserts to reduce static and dynamic stresses at the support point in the OPGW system.
Features
Field-proven, elastomer cushion inserts guard against abrasion, wear, and fatigue
Inserts have a unique hourglass shape that helps expand the angle rating to 30 degrees
Structural reinforcing rods are not needed for installation; strain relief relies solely on the cushion inserts.
All fasteners are factory-installed and captive, eliminating lost hardware in the field
Fastener-retained housing halves allow the suspension to be installed over OPGW simply by loosening the captive fasteners and spreading the halves open
Cushion-style suspension reduces dynamic strain levels on OPGW by 40% to 50% when compared to bare suspension clamps
An optional ground wire assembly can be included with the suspension
The FIBERLIGN EZ Cushion Suspension has been thoroughly tested for vibration, mechanical loading, and optical attenuation in accordance with IEEE Standard 1138 and IEEE Standard 1591.1
