DCD 41000-400 TUF-Lugger™ Lite Lifting - Gas pulling/lifting winch: 2200lb Max lift cap. 990 lb
Available*
Item # 30509194
Model # 41000-400
$3,132.00
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
TUGGERS
Tools
Line Construction- Placing
Puller- Tuggers- Winches
DCD Design And Manufacturing Ltd
Pullers-Tuggers-Winches
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
DCD 41000-400 TUF-Lugger™ Lite Lifting - Gas pulling/lifting winch: 2200lb Max lift cap. 990 lb
DCD 41000-400 TUF-Lugger™ Lite Lifting - Gas pulling/lifting winch: 2200lb Max lift cap. 990 lb
Part # 41000-400 Description TUF-Lugger™ Lite Lifting - Gas pulling/lifting winch: 2200lb Max lift cap. 990 lb
Application Pulling and Lifting Engine 4-Stroke Honda GXH-50cc Turns at Idle No Gearbox (Ratio) Aluminum Alloy (110:1) Maximum Pulling Force 1,700 lb Maximum Lifting Force 555 lb Standard Capstan Size 2-1/4 inch Drum Pulling Speed (2.25 inch Drum) 40' per min Max Force: 1700 lb Pulling Speed (3-3/8 inch Drum) 60' per min. Max Force: 1200 lb Rope Size (Pulling) 3/8 to 5/8 inch Rope Size (Lifting) 1/2 inch Dimesions 19-7/8" L x 14-5/8" W x 14-1/4" H Work Cycle 100% Continuous Work Weight 42 lbs

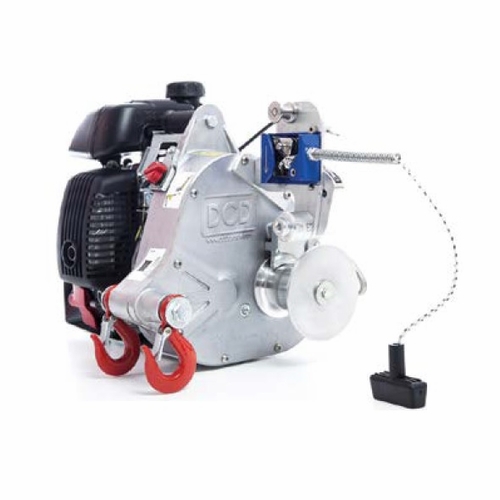

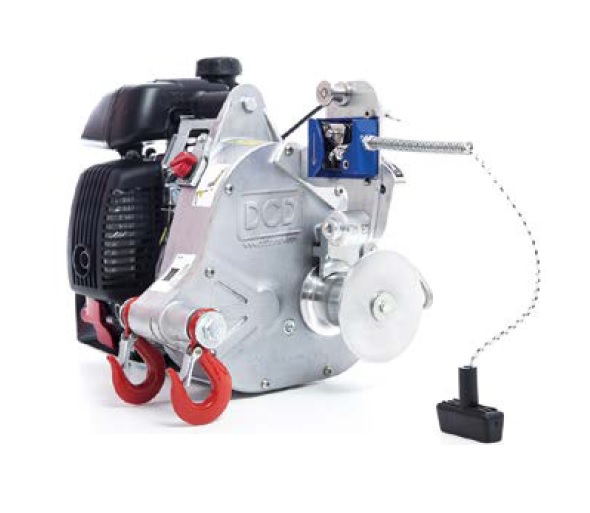

TUF-Lugger™ Lite Lifting - Gas This gas powered unit is used for jobs which require pulling and lifting. The capstan drum comes standard with a safety lip to prevent the rope from slipping off the drum during lifting jobs, and a rope grabbing system to prevent slack or rope slippage if the rope is released during a lift. This puller also features a clutch system which does not turn when idling.
DCD 41000-400 TUF-Lugger™ Lite Lifting - Gas pulling/lifting winch: 2200lb Max lift cap. 990 lb
Part # 41000-400 Description TUF-Lugger™ Lite Lifting - Gas pulling/lifting winch: 2200lb Max lift cap. 990 lb
Application Pulling and Lifting Engine 4-Stroke Honda GXH-50cc Turns at Idle No Gearbox (Ratio) Aluminum Alloy (110:1) Maximum Pulling Force 1,700 lb Maximum Lifting Force 555 lb Standard Capstan Size 2-1/4 inch Drum Pulling Speed (2.25 inch Drum) 40' per min Max Force: 1700 lb Pulling Speed (3-3/8 inch Drum) 60' per min. Max Force: 1200 lb Rope Size (Pulling) 3/8 to 5/8 inch Rope Size (Lifting) 1/2 inch Dimesions 19-7/8" L x 14-5/8" W x 14-1/4" H Work Cycle 100% Continuous Work Weight 42 lbs
TUF-Lugger™ Lite Lifting - Gas This gas powered unit is used for jobs which require pulling and lifting. The capstan drum comes standard with a safety lip to prevent the rope from slipping off the drum during lifting jobs, and a rope grabbing system to prevent slack or rope slippage if the rope is released during a lift. This puller also features a clutch system which does not turn when idling.
