DCD 41000-500 Tuf-Lugger™ Lite Lifting - Ac Electric Pulling/Lifting Winch Max Pull 1800 Lb
Available*
Item # 30509196
Model # 41000-500
$4,102.92
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Tuggers
Tools
Line Construction- Placing
Puller- Tuggers- Winches
DCD Design And Manufacturing Ltd
Pullers-Tuggers-Winches
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

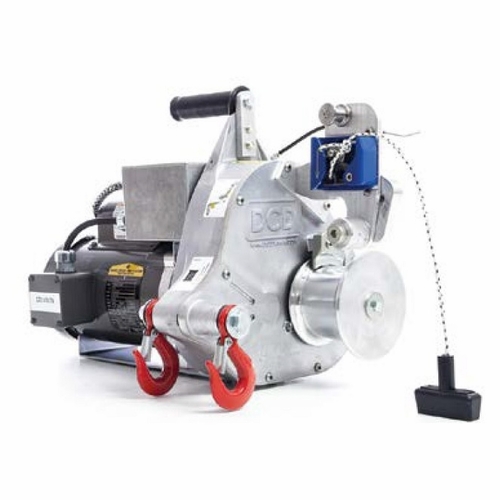

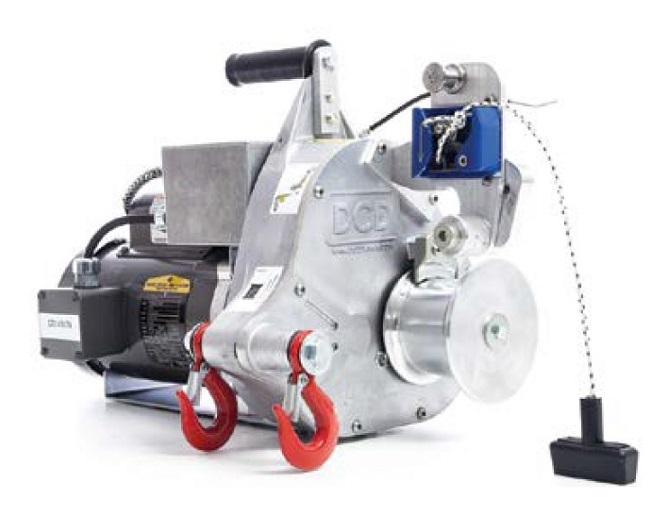

DCD 41000-500 Tuf-Lugger™ Lite Lifting - Ac Electric Pulling/Lifting Winch Max Pull 1800 Lb
DCD 41000-500 Tuf-Lugger™ Lite Lifting - Ac Electric Pulling/Lifting Winch Max Pull 1800 Lb Max Lift 555 Lb
Part # 41000-500 Description Tuf-Lugger™ Lite Lifting - Ac Electric Pulling/Lifting Winch Max Pull 1800 Lb Max Lift 555 Lb
Application Pulling And Lifting Engine Ac Electric Baldor Tefc 115/230 Vac - 1 Ph - 3/4 Hp - 60 Hz Gearbox (Ratio) Aluminum Alloy (110:1) Maximum Pulling Force 1,800 Lb Maximum Lifting Force 555 Lb Standard Capstan Size 2-1/4 Inch Drum Pulling Speed (2.25 Inch Drum) 22' Per Min Pulling Speed (3-3/8 Inch Drum) 35' Per Min. Rope Size (Pulling) 3/8 To 5/8 Inch Rope Size (Lifting) 1/2 Inch Dimesions 21-7/8" L X 14-3/8" W X 14-3/8" H Work Cycle 15 Min/Hr (To Avoid Overheating) Weight 53 Lbs
Tuf-Lugger™ Lite Lifting - Electric This Electric Model Gives You The Option Of Working In Areas Where Gas Motors Are Prohibited, Such As Indoors. With A Higher Pull Load Than Its Gas Powered Counterpart This Electric Puller Makes A Powerful Addition To The Team. It Comes Standard With The Same Rope Grabbing System As Our Other Lifting Unit, So You Can Feel Confident That This Machine Is Just As Safe And Reliable.
DCD 41000-500 Tuf-Lugger™ Lite Lifting - Ac Electric Pulling/Lifting Winch Max Pull 1800 Lb Max Lift 555 Lb
Part # 41000-500 Description Tuf-Lugger™ Lite Lifting - Ac Electric Pulling/Lifting Winch Max Pull 1800 Lb Max Lift 555 Lb
Application Pulling And Lifting Engine Ac Electric Baldor Tefc 115/230 Vac - 1 Ph - 3/4 Hp - 60 Hz Gearbox (Ratio) Aluminum Alloy (110:1) Maximum Pulling Force 1,800 Lb Maximum Lifting Force 555 Lb Standard Capstan Size 2-1/4 Inch Drum Pulling Speed (2.25 Inch Drum) 22' Per Min Pulling Speed (3-3/8 Inch Drum) 35' Per Min. Rope Size (Pulling) 3/8 To 5/8 Inch Rope Size (Lifting) 1/2 Inch Dimesions 21-7/8" L X 14-3/8" W X 14-3/8" H Work Cycle 15 Min/Hr (To Avoid Overheating) Weight 53 Lbs
Tuf-Lugger™ Lite Lifting - Electric This Electric Model Gives You The Option Of Working In Areas Where Gas Motors Are Prohibited, Such As Indoors. With A Higher Pull Load Than Its Gas Powered Counterpart This Electric Puller Makes A Powerful Addition To The Team. It Comes Standard With The Same Rope Grabbing System As Our Other Lifting Unit, So You Can Feel Confident That This Machine Is Just As Safe And Reliable.
