Dcd 24000-500 Power-Grip Pulling Eye 5000 Mcm Lug Style
Dcd 24000-500 Power-Grip Pulling Eye 5000 Mcm Lug Style

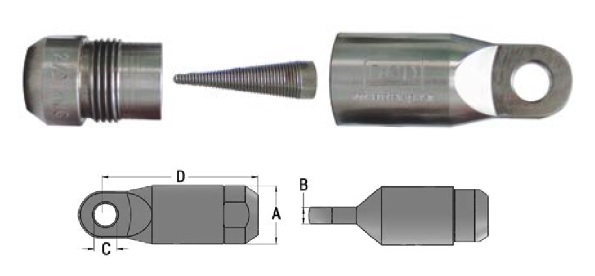

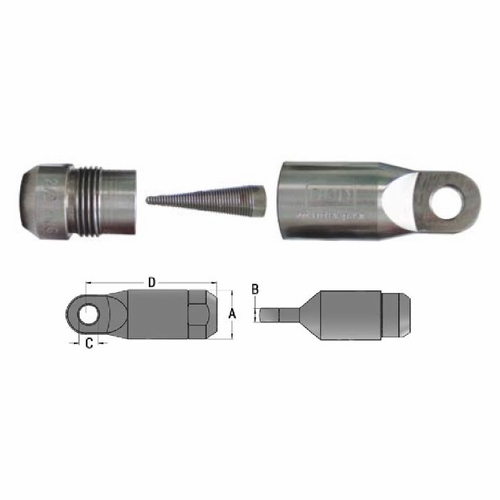

Part # 24000-500 Description Power-Grip Pulling Eye 5000 Mcm Lug Style Maximum Cable Size 5000 Mcm Maximum Core Diameter 2.52 Inch 64.04 Mm A 4-1/2 Inch B 1 Inch C 1-3/4 Inch D 11-11/16 Inch Weight 23.7 Lb Larger Power-Grips Are Machined From Alloy Steel And Plated. Power-Grip Components Include: Threaded Cone Nut # 24006-500 Tapered Insert # 24005-500 Body # 24007-500 Fits Line Swivels 00505-045 To 00505-050
The Power-Grip™ Pulling Eye Is Reusable And Has A Lug Style Head That Will Attach Directly To A Swivel. All Materials Are Stainless Steel. Only Four Body Sizes Are Used To Cover The Range From 1/0 To 5000 Mcm Cable. Note That These Pulling Eyes Should Always Be Used With A Line Swivel (00505 Series).
Dcd 24000-500 Power-Grip Pulling Eye 5000 Mcm Lug Style
Part # 24000-500 Description Power-Grip Pulling Eye 5000 Mcm Lug Style Maximum Cable Size 5000 Mcm Maximum Core Diameter 2.52 Inch 64.04 Mm A 4-1/2 Inch B 1 Inch C 1-3/4 Inch D 11-11/16 Inch Weight 23.7 Lb Larger Power-Grips Are Machined From Alloy Steel And Plated. Power-Grip Components Include: Threaded Cone Nut # 24006-500 Tapered Insert # 24005-500 Body # 24007-500 Fits Line Swivels 00505-045 To 00505-050
The Power-Grip™ Pulling Eye Is Reusable And Has A Lug Style Head That Will Attach Directly To A Swivel. All Materials Are Stainless Steel. Only Four Body Sizes Are Used To Cover The Range From 1/0 To 5000 Mcm Cable. Note That These Pulling Eyes Should Always Be Used With A Line Swivel (00505 Series).
