DCD 00600-100 Plow Grip 1 inch Nom. Pipe Pvc & Poly
Available*
Item # 30513215
Model # 00600-100
$280.77
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
PULL EYES
Tools
Line Construction- Placing
Eyes- Cable Pulling
DCD Design And Manufacturing Ltd
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
DCD DESIGN/CABLE SPINNING EQUIPMENT 00600-100 Plow Grip 1" Nom. Pipe Pvc & Poly NEW

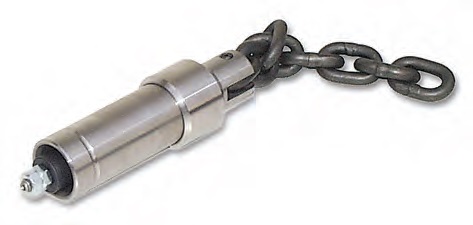

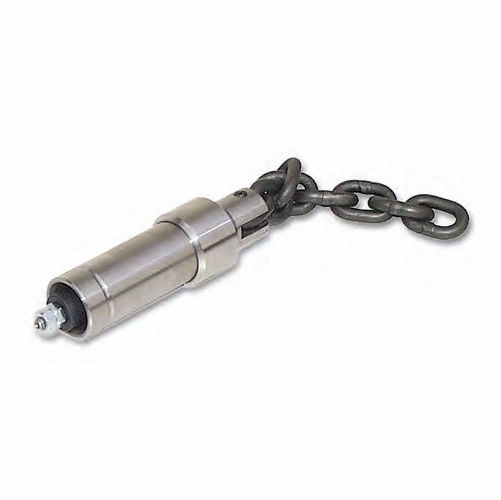

This product is specifically designed for installation of PVC or PE duct by vibratory plow and is particularly suited to agricultural applications because of its quick installation and removal. DCD DESIGN/CABLE SPINNING EQUIPMENT Plow-Grips are comprised of a stainless steel body and a clevis head with 8 links of hardened steel chain attached and hardened stainless steel expanding jaws with teeth that grip the inside of the ducting. Since there are various outside and inside diameters for ducting, the DCD DESIGN/CABLE SPINNING EQUIPMENT plow grip now has a single sleeve with a different bore size at each end. Should your ducting not fit at one end, reverse the sleeve and check the other end. The two sleeve sizes will cover 80 lb. and 100 lb. PE duct and Sched. 40 up to SDR 26 PVC duct as well as CSA B137.1 PE duct. To assemble the Plow-Grip to the ducting, the head is pushed against a spring which contracts the hardened steel jaws. The Plow-Grip can then be sleeved over the ducting. When the head is released, the jaws expand inside the duct and bite into the duct wall. As the pulling load is applied, it increases the bite of the jaws. When the pull is complete, pushing the head down will again contract the jaws allowing the Plow-Grip to be removed from the ducting.
This product is specifically designed for installation of PVC or PE duct by vibratory plow and is particularly suited to agricultural applications because of its quick installation and removal. DCD DESIGN/CABLE SPINNING EQUIPMENT Plow-Grips are comprised of a stainless steel body and a clevis head with 8 links of hardened steel chain attached and hardened stainless steel expanding jaws with teeth that grip the inside of the ducting. Since there are various outside and inside diameters for ducting, the DCD DESIGN/CABLE SPINNING EQUIPMENT plow grip now has a single sleeve with a different bore size at each end. Should your ducting not fit at one end, reverse the sleeve and check the other end. The two sleeve sizes will cover 80 lb. and 100 lb. PE duct and Sched. 40 up to SDR 26 PVC duct as well as CSA B137.1 PE duct. To assemble the Plow-Grip to the ducting, the head is pushed against a spring which contracts the hardened steel jaws. The Plow-Grip can then be sleeved over the ducting. When the head is released, the jaws expand inside the duct and bite into the duct wall. As the pulling load is applied, it increases the bite of the jaws. When the pull is complete, pushing the head down will again contract the jaws allowing the Plow-Grip to be removed from the ducting.
