GMP CIVITELLA LASHER WITH CASE
Item # 30550100
Model # CIVITELLA LASHE
Call for FREE Estimate
CLICK OR DIAL 800-422-4823
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
LASHERS
Tools
Line Construction- Placing
Lashers- Spinners
GMP General Machine Products
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

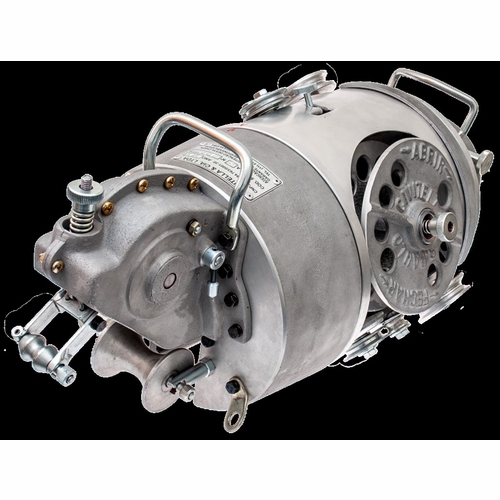

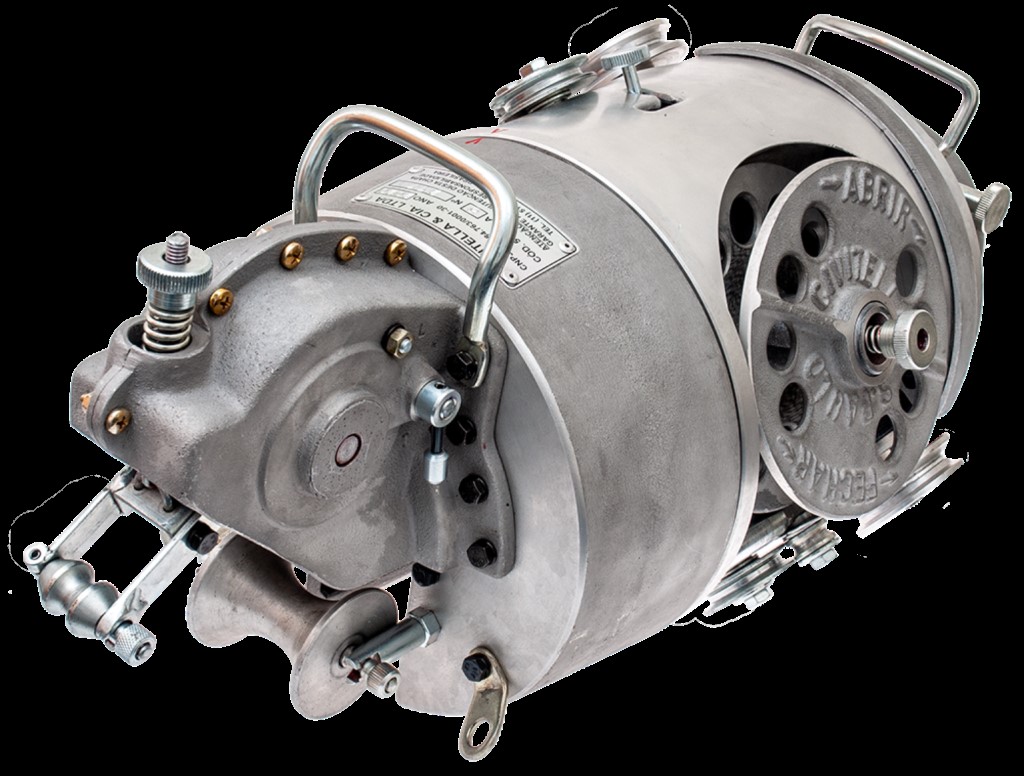

The Civitella cable lasher has been designed to string cable quickly and easily with its lightweight and parallel-pull capability. It can be used for new installs or with existing cables in place.
Max Bundle Size: 2.2 in. (56mm) Strand Size: 1/4 – 1/2 in. 6.6M, 5/16M, 10M Drive: Parallel Pull Wire Drive Wire Size: .038, .045 Stainless Coil Capacity: 1 or 2 depending on whether single or double lashing Main Features Lashes single or bundled cables up to 2.2 in. (56mm) onto strand sizes 1/4 in. to 1/2 in. (6-12mm) diameter A simple capstan drive yields a reliable smooth and quiet machine. Dual wire magazines for loading two coils of stainless steel lashing wire Lightweight and compact: Unloaded weight 40 lbs. (34kgs.); only 10.6 in. O.D. x 22.5 in. long (26 x 57cm). Furnished with a sturdy wooden carry case, a bridle pull rope with snap hooks, a screwdriver, a wrench, and an instruction manual.
Documents Instruction Manual Available Replacement Parts SPECIFICATIONS Max Bundle Size 2.2 in. (56mm) Strand Size 1/4 - 1/2 in. 6.6M, 5/16M, 10M Overlashing Yes Drive Parallel Pull Wire Drive Wire Size .038, .045 Coil Capacity 1 or 2 depending on whether single or double lashing Length 22.5 in. (570mm) Width 10.6 in. (270mm) Weight 40 lbs. (34kgs.)
Max Bundle Size: 2.2 in. (56mm) Strand Size: 1/4 – 1/2 in. 6.6M, 5/16M, 10M Drive: Parallel Pull Wire Drive Wire Size: .038, .045 Stainless Coil Capacity: 1 or 2 depending on whether single or double lashing Main Features Lashes single or bundled cables up to 2.2 in. (56mm) onto strand sizes 1/4 in. to 1/2 in. (6-12mm) diameter A simple capstan drive yields a reliable smooth and quiet machine. Dual wire magazines for loading two coils of stainless steel lashing wire Lightweight and compact: Unloaded weight 40 lbs. (34kgs.); only 10.6 in. O.D. x 22.5 in. long (26 x 57cm). Furnished with a sturdy wooden carry case, a bridle pull rope with snap hooks, a screwdriver, a wrench, and an instruction manual.
Documents Instruction Manual Available Replacement Parts SPECIFICATIONS Max Bundle Size 2.2 in. (56mm) Strand Size 1/4 - 1/2 in. 6.6M, 5/16M, 10M Overlashing Yes Drive Parallel Pull Wire Drive Wire Size .038, .045 Coil Capacity 1 or 2 depending on whether single or double lashing Length 22.5 in. (570mm) Width 10.6 in. (270mm) Weight 40 lbs. (34kgs.)
