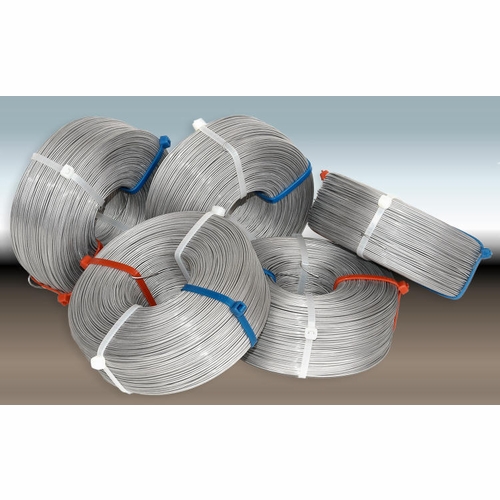

Gmp 71530 Wire Lash 430 .045"X1200' (Box Of 6 Rolls) New

Gmp 71530 Wire Lash 430 .045"X1200' (Box Of 6 Rolls) New

Available*
Item # 30786055
Model # 71530
$204.09
Peac Financing financing available. Learn More
Qty:

* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)

  • Product Description
  • You Might Also like
  • Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
WIRE LASH
Material and Supplies
Lashing- Supporting
Wire
GMP GENERAL MACHINE PRODUCTS
CA Prop 65 Warning Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov

Product Description

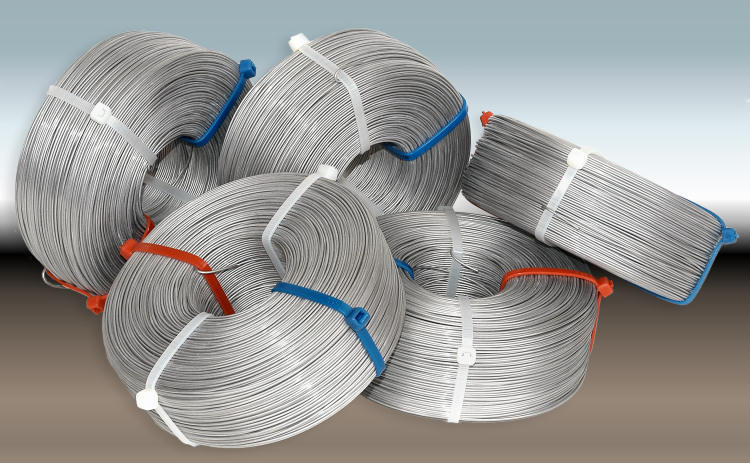

General Machine Products 71530 Wire Lash 430 .045"X1200' 6/Ct New Stainless Steel Lashing Wire Is Used In A Lasher To Lash An Aerial Cable Or Combination Of Cables To A Supporting Strand.

A Specially Controlled Annealing Process Yields A Uniform,Fine Grain Structure Throughout Wire Length And Cross Section For Best Results

The General Machine Products Lashing Wire Is Packaged As 6 Coils Per Carton For Your Ordering Convenience

Is Available In A 430, 302, And 316 Stainless Steel Alloy

Type 430 Stainless

Low Carbon, 17% Chromium Wire

Suitable For General Use And In Ordinary Atmospheric Exposure

Will Acquire Only A Dark Surface Stain

Specifically Not Recommended For Use Within 25 Miles Of Salt Water Or Industrial Operations Which Emit Pollutants

Type 302 Stainless

18% Chromium, 8% Nickel Analysis

This Wire Has Excellent Resistance To Corrosion From Industrial Atmospheres

Its Higher Tensile Strength And Breaking Load Are An Added Benefit

A .038 In. Diameter Type 302 Wire Provides Strength Equal To A .045 In. Type 430 Wire With Better Ductility (Easier Bending And Unwinding) And Better Elongation (Less Chance Of Wire Breakage From Stress)

Type 316 Stainless

Modified 18-10 Analysis Containing Approximately 2.5% Molybdenum

More Resistant To The Corrosive Action Of Most Chemicals, Including Chlorides And Sulfides, Than Any Other Wire

Particularly Resistant To Pitting And Pin Hole Corrosion Of The Kind Commonly Caused By Salt Spray

Its Use Provides The Best Insurance Against Failure Under The Most Severe Atmospheric Conditions

All Lashing Wire Is Wound In A Straight Hub Configuration To Fit All The Standard General Machine Products Lashers

Buying Tip: When Estimating The Length Of Lashing Wire Required For A Cable Run, Add The Following Amounts To The Length Of The Run For Single Lashing.

Add For Cables Up To

--------------------------------------------------------------------------------

5% 1 1/2 In. Dia. 10% 1 1/2 In. To 3 In. Dia. 20% Over 3 In. Dia.

For Double Lashing, Double The Quantity



P/N Alloy Dia. Ft. Coil Mtr. Coil Wt. Coil -----------------------------------------------------------

71530 430 045 1200 365.8 6.5 Lbs. 71531 430 065 650 198.1 7.5 Lbs. 71532 430 065 450 137.2 5.3 Lbs. 71533 302 045 1200 365.8 6.3 Lbs. 71534 316 045 1200 365.8 6.4 Lbs. 71535 302 038 1600 487.7 6.3 Lbs. 71541 430 045 2200 670.6 14 Lbs.

P/N Coil Dia. Coil Width Coil Pkg. Note

--------------------------------------------------------------------------------

71530 5.38 In. 1.81 In. 6 1 71531 6.50 In. 1.69 In. 6 3 71532 5.50 In. 1.69 In. 6 2 71533 5.38 In. 1.81 In. 6 1 71534 5.38 In. 1.81 In. 6 1 71535 5.38 In. 1.81 In. 6 1

Notes: 1. Fits Standard C, J2 Lashers And Apollo Lasher. 2. Fits G Lasher Or .065 Mods. 3. For B Lasher Only.

For Wire Types Other Than Shown Above Consult The Factory.
