GMP 10727 General Machine Products PULLING CAPSTAN 7 inch diameter Aluminum Alloy
Available*
Item # 31006120
Model # 10727
$1,070.50
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
CAPSTANS
Tools
Line Construction- Placing
Capstans
GMP General Machine Products
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

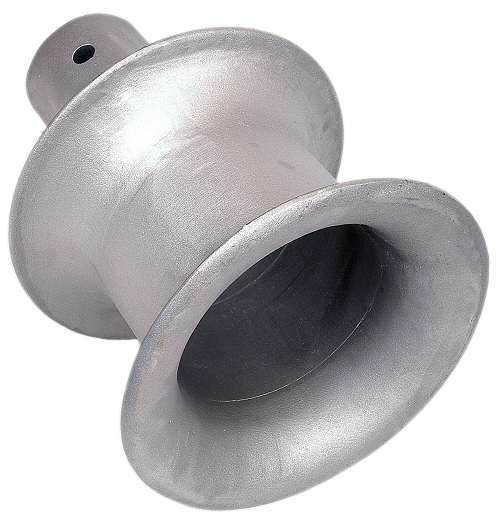

GMP 10727 General Machine Products PULLING CAPSTAN 7 inch diameter Aluminum Alloy
GMP 10727 General Machine Products PULLING CAPSTAN 7 inch diameter Aluminum Alloy
GENERAL MACHINE PRODUCTS 10727 CAPSTAN 7" DIA ALLOY NEW This general purpose capstan is used for a wide variety of pulling and hoisting applications. Cast from a high strength aluminum alloy for low weight
Will fit on any 2-7/16 in. (62 mm) diameter winch extension shaft equipped with a bayonet or pin type mount
The working surface is 7-1/4 in. diameter x 8 in. (184 mm x 200 mm) wide. The maximum allowable pull is 4000 lbs. (1814 kgs).
Capstan P/N 10727 Weight: 21 lbs. (9.5 kgs)
GMP 10727 General Machine Products PULLING CAPSTAN 7 inch diameter Aluminum Alloy
GENERAL MACHINE PRODUCTS 10727 CAPSTAN 7" DIA ALLOY NEW This general purpose capstan is used for a wide variety of pulling and hoisting applications. Cast from a high strength aluminum alloy for low weight
Will fit on any 2-7/16 in. (62 mm) diameter winch extension shaft equipped with a bayonet or pin type mount
The working surface is 7-1/4 in. diameter x 8 in. (184 mm x 200 mm) wide. The maximum allowable pull is 4000 lbs. (1814 kgs).
Capstan P/N 10727 Weight: 21 lbs. (9.5 kgs)
