Gmp 70643 Jamb Skid 84 To 121 Inches 76 Inch Extension Included
Available*
Item # 31313605
Model # 70643
$3,072.18

* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Jamb Skid
Tools
Line Construction- Placing
Jamb Skid
GMP General Machine Products

Product Description
Gmp 70643 Jamb Skid 84 To 121 Inches 76 Inch Extension Included New
Gmp 70643 Jamb Skid 84 To 121 Inches 76 Inch Extension Included New

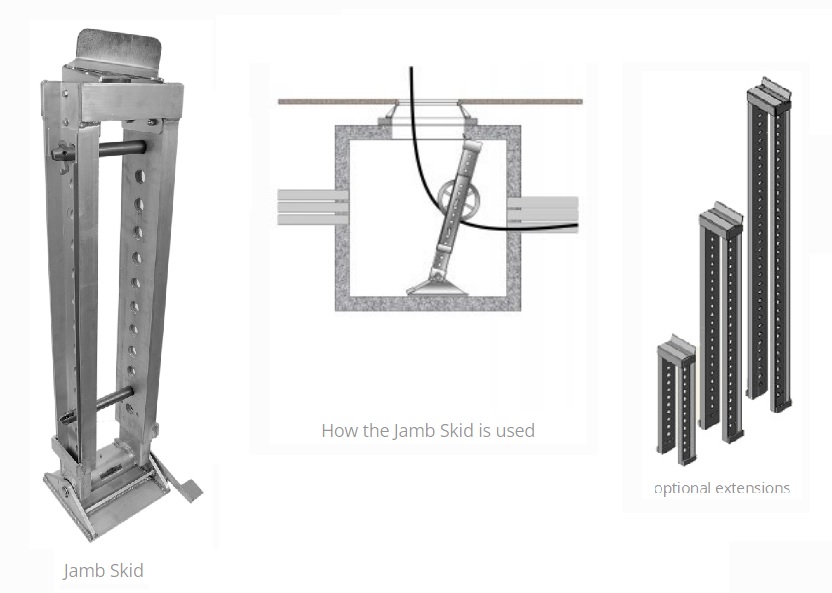

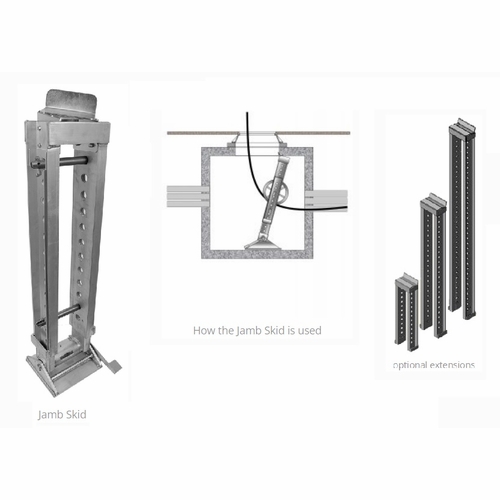

P/N 70643 Jamb Skid Used To Support Quadrant Blocks And Sheaves When Pulling Cable Through Underground Conduit. Overall Height Ranging From 84 In. To 121 In. (213.4 To 307.3Cm). Includes 76 In. (200.7Cm) Extension. Rated At 10,000 Lbs. (44.48Kn) Cable Tension. Weight 180 Lbs. (81.6 Kg)
Lightweight, Constructed Primarily Of Aluminum Corrosion Resistant Top Swivels For Easier Placement Within Vault Includes (2) 1 5/16 In. (33Mm) Diameter Locking Pins (71717) To Lock The Jamb Skid Height And Secure The Sheave Or Quadrant Block Accepts All Gmp Sheaves And Quadrant Blocks With Widths Up To 7 In. (178Mm) Includes A Base Unit To Accept The Upper Extensions Do Not Exceed 10,000 Lbs. (44.48Kn) Cable Tension When Using The Short Or Intermediate Extension Do Not Exceed 5,000 (22.24Kn) Lbs. Cable Tension When Using The Long Extension
Gmp 70643 Jamb Skid 84 To 121 Inches 76 Inch Extension Included New
P/N 70643 Jamb Skid Used To Support Quadrant Blocks And Sheaves When Pulling Cable Through Underground Conduit. Overall Height Ranging From 84 In. To 121 In. (213.4 To 307.3Cm). Includes 76 In. (200.7Cm) Extension. Rated At 10,000 Lbs. (44.48Kn) Cable Tension. Weight 180 Lbs. (81.6 Kg)
Lightweight, Constructed Primarily Of Aluminum Corrosion Resistant Top Swivels For Easier Placement Within Vault Includes (2) 1 5/16 In. (33Mm) Diameter Locking Pins (71717) To Lock The Jamb Skid Height And Secure The Sheave Or Quadrant Block Accepts All Gmp Sheaves And Quadrant Blocks With Widths Up To 7 In. (178Mm) Includes A Base Unit To Accept The Upper Extensions Do Not Exceed 10,000 Lbs. (44.48Kn) Cable Tension When Using The Short Or Intermediate Extension Do Not Exceed 5,000 (22.24Kn) Lbs. Cable Tension When Using The Long Extension
