GMP 70640 JAMB SKID 48 to 85 inches 43 inch extension included
Available*
Item # 31313600
Model # 70640
$3,083.01
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
JAMB SKID
Tools
Line Construction- Placing
Jamb Skid
GMP General Machine Products
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
GMP 70640 JAMB SKID 48 to 85 inches 43 inch extension included NEW
GMP 70640 JAMB SKID 48 to 85 inches 43 inch extension included NEW

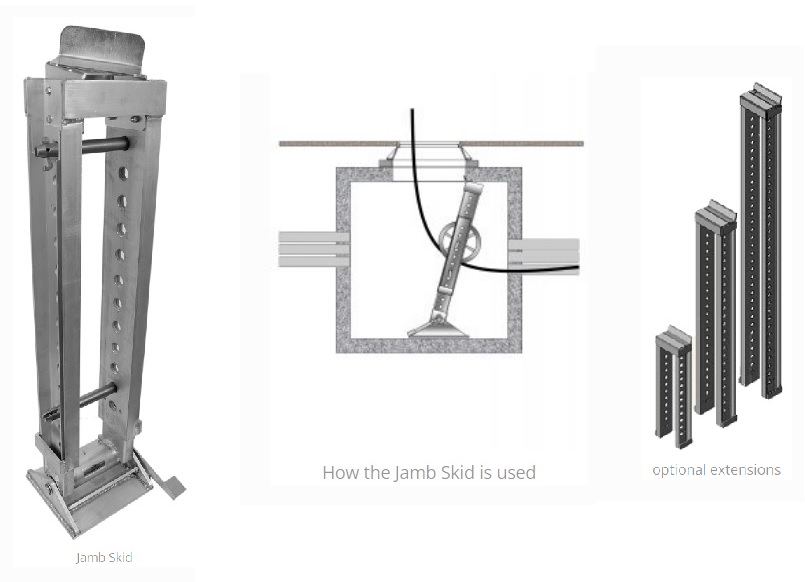

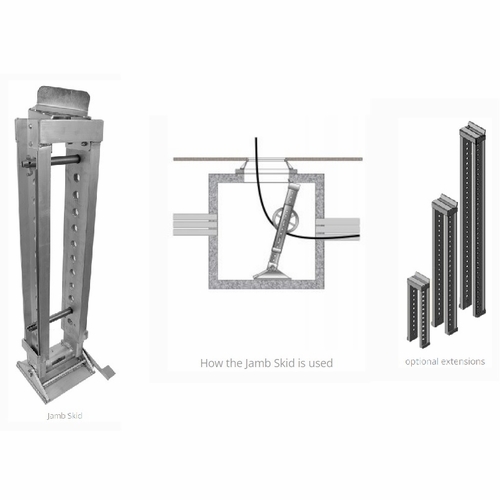

P/N 70640 Jamb Skid Used to support quadrant blocks and sheaves when pulling cable through underground conduit. Overall height ranging from 48 in. to 85 in. (121.9 to 215.9cm). Includes 43 in. (109.2cm) extension. Rated at 10,000 lbs. (44.48kN) cable tension. Weight 100 lbs. (45.0kg)
Lightweight, constructed primarily of aluminum Corrosion Resistant Top Swivels for easier placement within vault Includes (2) 1 5/16 in. (33mm) diameter locking pins (71717) to lock the jamb skid height and secure the sheave or quadrant block Accepts all GMP sheaves and quadrant blocks with widths up to 7 in. (178mm) Includes a base unit to accept the upper extensions Do not exceed 10,000 lbs. (44.48kN) cable tension when using the short or intermediate extension Do not exceed 5,000 (22.24kN) lbs. cable tension when using the long extension
GMP 70640 JAMB SKID 48 to 85 inches 43 inch extension included NEW
P/N 70640 Jamb Skid Used to support quadrant blocks and sheaves when pulling cable through underground conduit. Overall height ranging from 48 in. to 85 in. (121.9 to 215.9cm). Includes 43 in. (109.2cm) extension. Rated at 10,000 lbs. (44.48kN) cable tension. Weight 100 lbs. (45.0kg)
Lightweight, constructed primarily of aluminum Corrosion Resistant Top Swivels for easier placement within vault Includes (2) 1 5/16 in. (33mm) diameter locking pins (71717) to lock the jamb skid height and secure the sheave or quadrant block Accepts all GMP sheaves and quadrant blocks with widths up to 7 in. (178mm) Includes a base unit to accept the upper extensions Do not exceed 10,000 lbs. (44.48kN) cable tension when using the short or intermediate extension Do not exceed 5,000 (22.24kN) lbs. cable tension when using the long extension
