GMP 71568 KIT TR/LT 24 inch NON-WOOD 4WX6W
Available*
Item # 34700120
Model # 71568
$826.66
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
POLE LIGHT
Tools
Line Construction- Placing
Pole Trailer Light Kits
GMP General Machine Products
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
GENERAL MACHINE PRODUCTS 71568 KIT TR/LT 24" NON-WOOD 4WX6W NEW

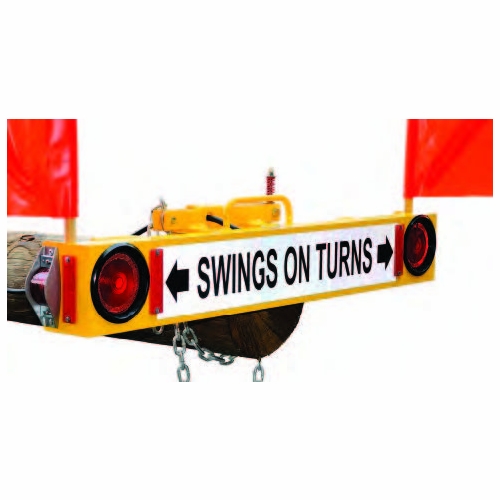

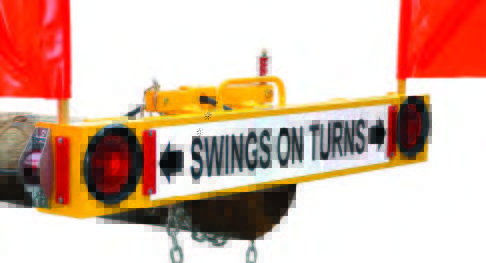

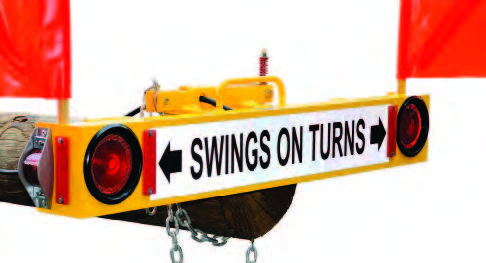

Thanks to GENERAL MACHINE PRODUCTS 's Pole Trailer Light Kits you can transport utility poles with greater visibility while meeting DOT requirements and only adding minimal width to your trailer.
In addition to their compact design and secure attachments, the kits are also loaded with well designed features for maximum visibility. Click on image above for a larger view of the Pole Trailer Light Kits
The frame is made from an extruded aluminum weldment with a durable bright yellow polyester powder coating.
D.O.T. approved lights (bulb or LED depending on model) and reflectors are mounted on the back and both sides.
Shock mounts provide greater bulb life and simplify bulb replacement.
The kit uses a Reflexite label with 3 in. (76mm) high lettering and a standard legend, ("Swings on Turns" with directional arrows).
Pole Trailer Light The unit comes with a 40 ft. (12.2m) 18 gauge S.O. trailer cord with a heavy-duty 4-way or 6-way trailer plug for plugging into either the trailer or the vehicle pulling the trailer. This gives motorists the added information of turn signals and brake lights; not just blinking lights. Environmental concerns are also reduced as our kits don't use disposable batteries
The width of the unit is minimized with up-right flags (included) and cordage storage arms located within the outer dimensions of the frame for storing excess cordage
The flag holders are oversized to allow for swelling of the wooden staff when wet. Each holder includes a pin retainer to keep the flag secure during transportation
Positive attachment to the pole is created with an over center chain binder that uses 5 ft. (152cm) of chain and hardened steel spikes that bury in the pole when the binder is tightened on the wooden pole only version
Heavy duty strap binder version available for attaching to both wood or non-wooden poles.
Sockets for both the 4-way and 6-way plugs can be ordered separately
Ordering Information
Chain Binder Attachment Strap Binder Attachement Chain Binder Attachment for wood poles only Strap Binder Attachement for both wood and non-wood poles Optional LED lights available for all variations. Please call factory for details.
P/N Description Weight 70274 46 in. (117 cm) Wide w/4-Way Plug for wood poles only 26 lbs. (12kg) 70276 46 in. (117 cm) Wide w/6-Way Plug for wood poles only 26 lbs. (12kg) 70270 46 in. (117 cm) Wide w/6-Way Plug for wood poles only-LED Light Option 26 lbs. (12kg) 70277 24 in. (61 cm) Wide w/4-Way Plug for wood poles only 14 lbs. (6.5kg) 70278 24 in. (61 cm) Wide w/6-Way Plug for wood poles only 14 lbs. (6.5kg) 71566 46 in. (117 cm) Wide w/7-Way RV Plug for wood or non-wood poles 26 lbs. (12kg) 71567 46 in. (117 cm) Wide w/4-Way Plug for wood or non-wood poles 26 lbs. (12kg) 71569 46 in. (117 cm) Wide w/6-Way Plug for wood or non-wood poles 26 lbs. (12kg) 26006 4-Way Socket 2 oz. (57g) 26007 6-Way Socket 2 oz. (57g)
