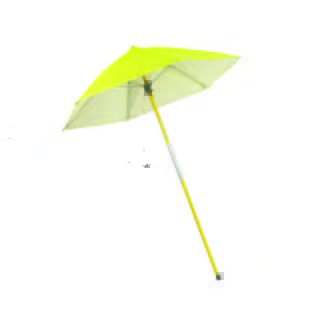

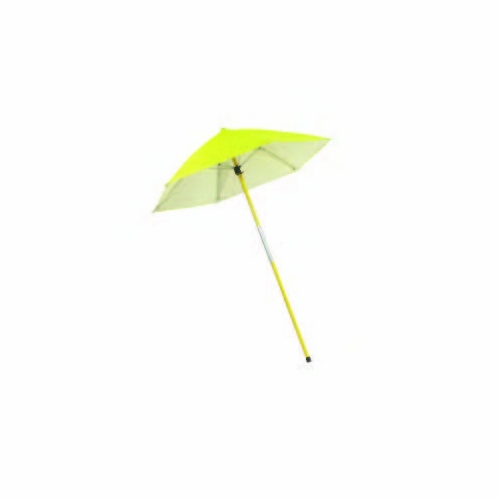

Gmp 70353 Umbrella Dieletric Without Lr Pole New

Gmp 70353 Umbrella Dieletric Without Lr Pole New

Item # 37995005
Model # 70353
Peac Financing financing available. Learn More

* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)

  • Product Description
  • You Might Also like
  • Recently Viewed
Tents- Umbrellas-- Canvases
Umbrellas And Accessories
CA Prop 65 Warning Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov

Product Description

General Machine Products 70353 Umbrella Dieletric W/O Lr Pole New Whether You'Re Working In A Bucket Or On The Ground, General Machine Products Sunshades Give You Fast Shelter From The Sun. General Machine Products Offers A Choice Of Rugged Umbrellas And A Complete Line Of Accessories That Provide Maximum Mounting And Angle-Adjustment Flexibility.

Choose Between Our Model D Umbrella For Standard Use Or Our Dielectric Umbrella (Rated To 40 Kv Per Astm D-149) To Reduce The Potential Of Electrical Shock When Working Near Power Wires. To Make Your Umbrella Even More Useful, Our Optional Umbrella Angle Adapter (P/N 71572) Provides Five Tilt-Angle Adjustment Settings For Maximum Protection No Matter Where The Sun Is Located. This Adapter Can Be Offered With A One-Piece 24 In. (609.6 Mm) Pole Extension (P/N 71647) Or With A Two-Piece Pole Extension Set (P/N 71640), Giving You A Full 45 Inches (1.125 M) Of Pole Length.

For Protection While Working At Ground Level, We Offer A Sturdy Tripod Umbrella Kit (P/N 71649) That Features Weighted-Leg Construction. The Kit Comes Complete With A Durable Storage Bag.

For Weather Protection While Working Aloft, A Convenient Bucket Holder (P/N 28210) Pole Attachment Is Available For Securely Mounting Your Umbrella To Any Flat Bucket Surface (Requires P/N 71647 Angle Adapter With One-Piece Pole Extension. The Umbrella'S Lower Pole Is Not To Be Used In The Bucket Holder.).Bucket Holder Thumb Screws Make Precise Umbrella Positioning A Snap. All Accessories Accommodate General Machine Products Manufactured Umbrellas.

A Tough Plastic 68 In. (173 Cm) Dia. Umbrella Cover Is Colored Safety Yellow On The Top (Custom Company Logos Available)

A Reflective White Underside Cuts Down On Interior Heat Absorption And Is Vinyl-Coated; Nylon Rib-End Pockets Keep The Frame From Tearing The Cover

Self-Sealing Waterproofed, Waxed Stitching And Improved Construction, Using A Nylon Sleeve And Rib Retainers For Attaching The Frame'S Six Collapsible Ribs

The Frame'S Collapsible Fiberglass Ribs Connect At A Ring-Type Lock That Slides Along The Pole As You Open Or Close The Umbrella

To Lock The Ring, Just Slide It Over The Set Pin In The Pole, And Rotate It

The 43 In. (109 Cm) Long Wooden Pole Has A Male Ferrule So You Can Attach The 29 In. (74 Cm) Extension Section For A Height Of 6 Ft. (1.83 M)

When Working Near Power Wires Choose The Dielectric Umbrella To Reduce Potential Sources Of Electrical Shock (See O.S.H.A. Statement)

P/N 71572 Angle Adapter P/N 71647 Angle Adapter & 1 Pc Pole Ext. Combination P/N 71640 Angle Adapter & 2 Pc Pole Ext. Combination P/N 28210 Bucket Holder

Angle Adapter (P/N 71572) Has Five Settings To Allow Either Style Of Umbrella To Be Tilted As The Sun Moves.

One-Piece Angle Adapter (P/N 71647) Accepts Upper Pole Of The General Machine Products Umbrella. This Adapter Is Required To Mount General Machine Products Umbrellas To The General Machine Products Bucket Holder.

Two-Piece Angle Adapter (P/N 71640) Accepts Upper Pole Of The General Machine Products Umbrella And Provides Added Height For Those Customers Without A Lower Pole.

The Tripod Kit (P/N 71649) Accepts Upper Pole Of Umbrella. Kit Includes Weighted-Leg Construction, Angle Adapter And Telescoping Stand.

Ordering Information

P/N Description Weight


28210 Holder Bucket For Umbrella Accommodates 1 Pc Pole Ext P/N 71647 (Mounting Hardware Not Included) 1.75 Lbs. (.79 Kg) 71572 Adapter, Angle Umbrella 1.75 Lbs. (.79 Kg) 71640 Adapter, Angle With 2 Pc Pole Ext. 3.25 Lbs. (1.47 Kgs) 71647 Adapter, Angle With 1 Pc Pole Ext 2.5 Lbs. (1.13 Kgs) 71649 Kit Tripod W/Bag 37 Lbs. (16.7 Kgs) 70098 Umbrella D W/O Lower Pole Assembly 6.75 Lbs. (3.06 Kgs) 80920 Umbrella D With 72" Pole 9 Lbs. (4.1 Kgs) 70352 Umbrella Dielectric With 72" Pole Rated To 40 Kv Per Astm D-149 7.5 Lbs. (3.4 Kgs) 80921 Case, Umbrella 1 Lb. (.453 Kg)
