JONARD PIC-G Picabond Crimping Tool UPC 810053350652
Available*
Item # 38280792
Model # PIC-G
$400.95
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
AMP
Tools
Splicing Single Pair- Two Pair
AMP VS3-Guns- Applicators
Jonard Industries Corp
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

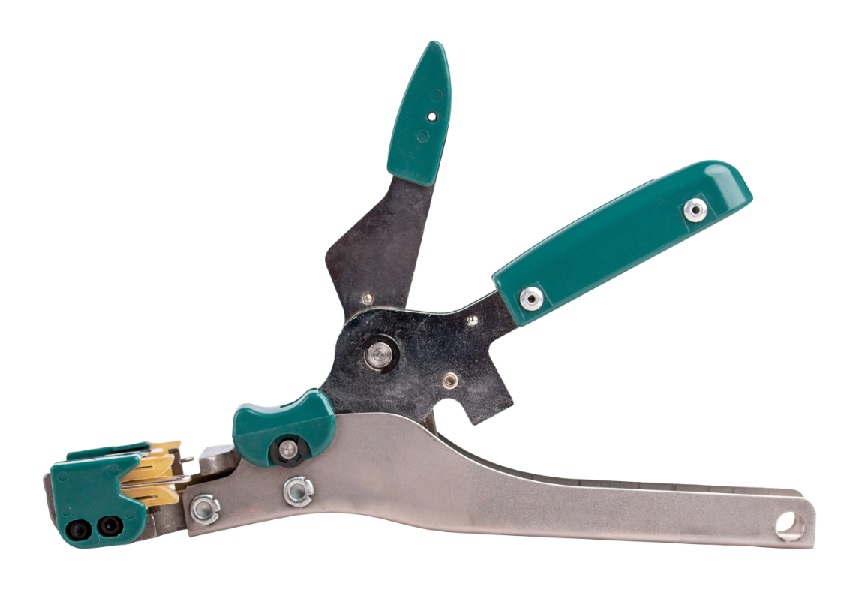

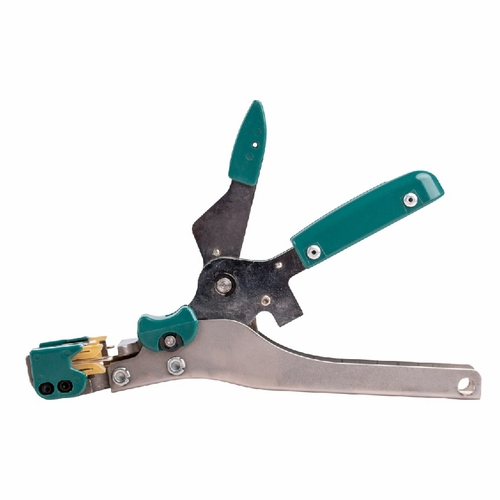

JONARD PIC-G Picabond Crimping Tool UPC 810053350652
JONARD PIC-G Picabond Crimping Tool UPC 810053350652
This VS-3 style hand tool is designed to crimp various AMP Picabond connectors onto 19 - 28 AWG wires. This crimper also features the following:
Moveable anvil and two fixed dies crimp the connector perfectly every time Rubber wire supports hold wire in place while crimping Built-in wire cutter locates the connector on the anvil and cuts excess wire during crimping Unique moving handle pushes connectors into the crimping dies, ensuring highly uniform connections with every crimp Fixed handle provides additional support during crimping Compatible with AMP Picabond Connectors with the following stripe colors: Orange, Green, Purple, Green/Amber, Purple/Amber, Red, and Yellow Specifications Connector Type AMP Picabond Connectors (Striped Connectors)
Compatible Stripe Colors Orange, Green, Purple, Green/Amber, Purple/Amber, Red, & Yellow
Wire Range 28 AWG - 19 AWG
Tool Dimensions 7.75" x 1.8" x 2.6" (19.7 cm x 4.6 cm x 6.6 cm)
Dimensions w/ Case 10.5" x 7.5" x 2.5" (26.67 cm x 19.05 cm x 6.35 cm)
Dimensions 10.5 in x 7.5 in x 2.5 in (26.67 cm x 19.05 cm x 6.35 cm) Weight 2.06 lb (935.24 g) UPC # 810053350652
JONARD PIC-G Picabond Crimping Tool UPC 810053350652
This VS-3 style hand tool is designed to crimp various AMP Picabond connectors onto 19 - 28 AWG wires. This crimper also features the following:
Moveable anvil and two fixed dies crimp the connector perfectly every time Rubber wire supports hold wire in place while crimping Built-in wire cutter locates the connector on the anvil and cuts excess wire during crimping Unique moving handle pushes connectors into the crimping dies, ensuring highly uniform connections with every crimp Fixed handle provides additional support during crimping Compatible with AMP Picabond Connectors with the following stripe colors: Orange, Green, Purple, Green/Amber, Purple/Amber, Red, and Yellow Specifications Connector Type AMP Picabond Connectors (Striped Connectors)
Compatible Stripe Colors Orange, Green, Purple, Green/Amber, Purple/Amber, Red, & Yellow
Wire Range 28 AWG - 19 AWG
Tool Dimensions 7.75" x 1.8" x 2.6" (19.7 cm x 4.6 cm x 6.6 cm)
Dimensions w/ Case 10.5" x 7.5" x 2.5" (26.67 cm x 19.05 cm x 6.35 cm)
Dimensions 10.5 in x 7.5 in x 2.5 in (26.67 cm x 19.05 cm x 6.35 cm) Weight 2.06 lb (935.24 g) UPC # 810053350652
