Multilink 020-004-23 Slack Box, Exterior with 3, 1 inch holes FITTINGS for MRM & MRC Series Moldi
Available*
Item # 51293215
Model # 020-004-23
$30.35
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
RACEWAY
Fiber Optic Products
Duct- Conduit
Raceway- Trays- Cable
Multilink
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
Multilink 020-004-23 Slack Box, Exterior with 3, 1" holes FITTINGS for MRM & MRC Series Molding
Multilink 020-004-23 Slack Box, Exterior with 3, 1" holes FITTINGS for MRM & MRC Series Molding

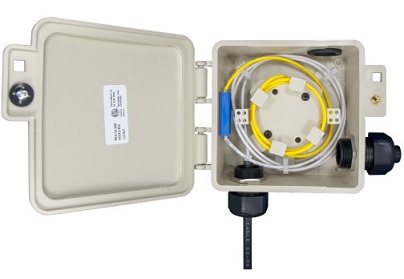

Fiber Optic Exterior Slack Storage Box 020-004-23 3, 1in. holes, Ivory and 4.8" L x 4.8" W x 2.2"D. Multilink’s OSP slack storage box is ideal for exterior slack storage applications using small diameter fiber cable. There are two stackable storage spools that allow storage of multiple single fiber cable drops. Both of these spools are removable, which allows additional storage under the spool. This includes three entry points sealed with removable cap plugs, or it can be ordered without holes. The diameter of each entry hole is 1". The box is equipped with a hex bolt, including a retainer that can be secured using a standard 216C type wrench. In addition to the above, the box is also equipped with a provision for a hasp lock. A built-in hinge allows captive and non-captive flexibility.
General Specifications Bend Radius 1.263" Fiber Specifications Cable Type 3mm Fiber Optic Cable Physical Specifications Width 4.8" Height 4.8" Depth 2.2" Color Ivory
Multilink 020-004-23 Slack Box, Exterior with 3, 1" holes FITTINGS for MRM & MRC Series Molding
Fiber Optic Exterior Slack Storage Box 020-004-23 3, 1in. holes, Ivory and 4.8" L x 4.8" W x 2.2"D. Multilink’s OSP slack storage box is ideal for exterior slack storage applications using small diameter fiber cable. There are two stackable storage spools that allow storage of multiple single fiber cable drops. Both of these spools are removable, which allows additional storage under the spool. This includes three entry points sealed with removable cap plugs, or it can be ordered without holes. The diameter of each entry hole is 1". The box is equipped with a hex bolt, including a retainer that can be secured using a standard 216C type wrench. In addition to the above, the box is also equipped with a provision for a hasp lock. A built-in hinge allows captive and non-captive flexibility.
General Specifications Bend Radius 1.263" Fiber Specifications Cable Type 3mm Fiber Optic Cable Physical Specifications Width 4.8" Height 4.8" Depth 2.2" Color Ivory
