PLP 8003474 COYOTE RUNT ADSS MOUNTING BRACKET
Available*
Item # 51436200
Model # 8003474
$68.58
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
CLOSURES
Material and Supplies
Closures
Closure Mounting Hardware
Preformed Line Products
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

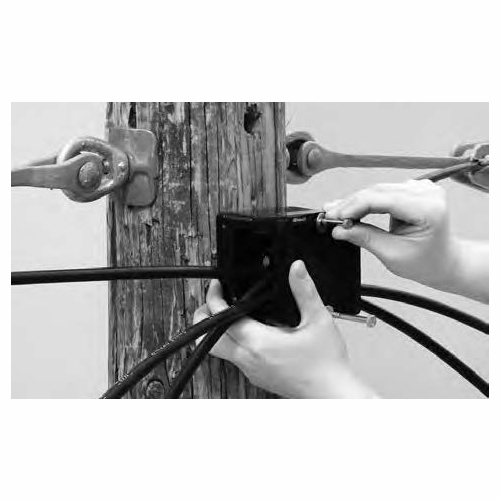

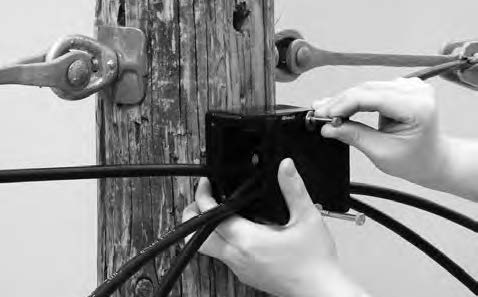

Preformed Line Products 8003474 Mounting Kit for COYOTE RUNT Closure
Kits include either the economical cable abrasion protectors or the low profile Uni-Group Cable Guide (UCG) for the cable passing by the pole. Cable abrasion protectors are 8" long polyethylene slit sleeves that slide over the cable – secure in place with 2 factory supplied cable straps. Two sizes of abrasion protectors are supplied to cover cables up to .5" diameter and from .501"-1.00". The UCG offers a controlled method of guiding the cable pass the pole in tight pole space applications. This guide will capture up to 5 each 1" diameter cables within a 4-1/4" pole space. Either method can be used for any structure application. The UCG includes lag bolts for wood pole applications and machine bolts for banded applications on steel or concrete poles. The UCG will accept a maximum 3/4" (19mm) wide band – band is not supplied. Cable straps are used to strap the cable to CLAS Storage brackets and cables together. Preformed Line Products offers Heavy Duty 1/2" wide UV resistant cable straps with the kits as an option
Kits include either the economical cable abrasion protectors or the low profile Uni-Group Cable Guide (UCG) for the cable passing by the pole. Cable abrasion protectors are 8" long polyethylene slit sleeves that slide over the cable – secure in place with 2 factory supplied cable straps. Two sizes of abrasion protectors are supplied to cover cables up to .5" diameter and from .501"-1.00". The UCG offers a controlled method of guiding the cable pass the pole in tight pole space applications. This guide will capture up to 5 each 1" diameter cables within a 4-1/4" pole space. Either method can be used for any structure application. The UCG includes lag bolts for wood pole applications and machine bolts for banded applications on steel or concrete poles. The UCG will accept a maximum 3/4" (19mm) wide band – band is not supplied. Cable straps are used to strap the cable to CLAS Storage brackets and cables together. Preformed Line Products offers Heavy Duty 1/2" wide UV resistant cable straps with the kits as an option
