RUIYAN RY-ID3306 LIVE FIBER IDENTIFIER WITH LOSS ESTIMATE
Available*
Item # 53287900
Model # RY-ID3306
$573.75
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
IDENTIFIER
Fiber Optic Products
OTDR- Power Meter- Light Source- Idenitifiers- VFL
Fiber Identifiers- VFL
Ruiyan Communications Equipment Co., Ltd
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

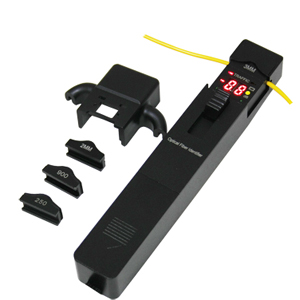

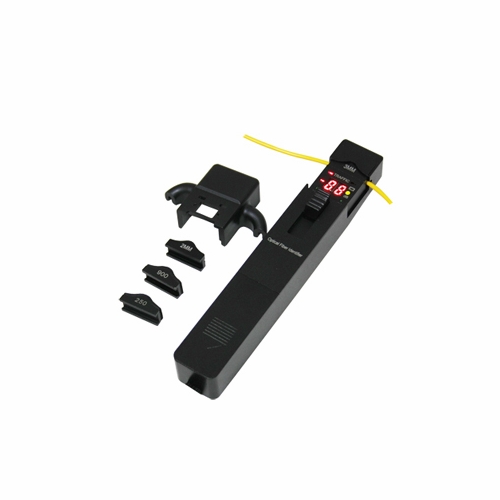

RUIYAN RY-ID3306 LIVE FIBER IDENTIFIER WITH LOSS ESTIMATE NEW RY-ID3306 Optical Fiber Identifier
Identified Wavelength Range 800-1700 nm
Identified Signal Type CW
270Hz+5%,1kHz+5%,2kHz+5%
Accurate test with Sunshade
-Easy-to-replace adaptors
-Lower power indication
-Efficient fiber identifier
-fiber tester
RY-ID3306 Optical Fiber Identifier can quickly identify the direction of transmitted fiber and display the relative core power without any damages to the bended fiber. When the traffic is present, the intermittently audible tone is activated. The WF3306B optical fiber identifier also recognize the modulation like,270Hz,1kHz and 2kHz .When they are used to detect the frequency, the continuously audible tone is activated. There are four adapter heads available: Ø0.25, Ø0.9, Ø2.0 and Ø3.0. The WF3306B optical fiber identifier is powered by a 9V alkaline battery.
Features -Easy-to-use with ??ONE KEY??operation. -Efficiently identifies the traffic direction and frequency tonel (270Hz, 1KHz, 2KHz) with audible warning. -Displays the relative core power. -More accurate test with Sunshade. -Easy-to-replace adaptors. -Durable metal housing and quality construction. -Lower power indication.
Specifications
Type RY- ID3306
Identified Wavelength Range 800-1700 nm
Identified Signal Type CW, 270Hz+5%,1kHz+5%,2kHz+5%
Detector Type Ø1mm InGaAs 2pcs
Adapter Type Ø0.25 (Applicable for Bare Fiber) Ø0.9 (Applicable for Ø0.9 Cable ) Ø2.0 (Applicable for Ø2.0 Cable ) Ø3.0 (Applicable for Ø3.0 Cable )
Signal Direction Left & Right LED
Singe Direction Test Range (dBm, CW/0.9mm bare fiber) -46~0(1310nm) -50~0(1550nm)
Signal Power Test Range (dBm, CW/0.9mm bare fiber) -50~10
Signal Frequency Display (Hz) 270, 1k, 2k
Frequency Test Range (dBm, Average Value) Ø0.9, Ø2.0, Ø3.0 -30~ (270Hz,1KHz) -25~ (2KHz) Ø0.25 25~ (1KHz,2KHz) -20~ (2KHz)
Insertion Loss(dB, Typical Value) 0.8 (1310nm) 2.5 (1550nm)
Alkaline Battery(V) 9
Operating Temperature -10-+60
Storage Temperature -25-+70
Dimension (mm) 196X30.5X27
Weight (g) 200
Standard Packages
MODEL INCLUDES RY-ID3306 RY- ID3306 Optical Fiber Identifier, 4pcs adapter heads, Sunshade, Alkaline battery, User Manual, Cotton Stick and Soft Carrying case
RY-ID3306 Optical Fiber Identifier can quickly identify the direction of transmitted fiber and display the relative core power without any damages to the bended fiber. When the traffic is present, the intermittently audible tone is activated. The WF3306B optical fiber identifier also recognize the modulation like,270Hz,1kHz and 2kHz .When they are used to detect the frequency, the continuously audible tone is activated. There are four adapter heads available: Ø0.25, Ø0.9, Ø2.0 and Ø3.0. The WF3306B optical fiber identifier is powered by a 9V alkaline battery.
Features -Easy-to-use with ??ONE KEY??operation. -Efficiently identifies the traffic direction and frequency tonel (270Hz, 1KHz, 2KHz) with audible warning. -Displays the relative core power. -More accurate test with Sunshade. -Easy-to-replace adaptors. -Durable metal housing and quality construction. -Lower power indication.
Specifications
Type RY- ID3306
Identified Wavelength Range 800-1700 nm
Identified Signal Type CW, 270Hz+5%,1kHz+5%,2kHz+5%
Detector Type Ø1mm InGaAs 2pcs
Adapter Type Ø0.25 (Applicable for Bare Fiber) Ø0.9 (Applicable for Ø0.9 Cable ) Ø2.0 (Applicable for Ø2.0 Cable ) Ø3.0 (Applicable for Ø3.0 Cable )
Signal Direction Left & Right LED
Singe Direction Test Range (dBm, CW/0.9mm bare fiber) -46~0(1310nm) -50~0(1550nm)
Signal Power Test Range (dBm, CW/0.9mm bare fiber) -50~10
Signal Frequency Display (Hz) 270, 1k, 2k
Frequency Test Range (dBm, Average Value) Ø0.9, Ø2.0, Ø3.0 -30~ (270Hz,1KHz) -25~ (2KHz) Ø0.25 25~ (1KHz,2KHz) -20~ (2KHz)
Insertion Loss(dB, Typical Value) 0.8 (1310nm) 2.5 (1550nm)
Alkaline Battery(V) 9
Operating Temperature -10-+60
Storage Temperature -25-+70
Dimension (mm) 196X30.5X27
Weight (g) 200
Standard Packages
MODEL INCLUDES RY-ID3306 RY- ID3306 Optical Fiber Identifier, 4pcs adapter heads, Sunshade, Alkaline battery, User Manual, Cotton Stick and Soft Carrying case
