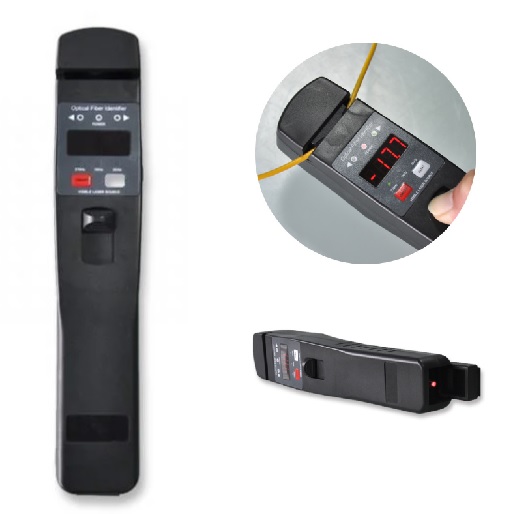

JW3306D LIVE FIBER IDENTIFIER WITH LOSS ESTIMATE
Available*
Item # 53287960
Model # JW3306D
$288.75
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
IDENTIFIER
Fiber Optic Products
OTDR- Power Meter- Light Source- Idenitifiers- VFL
Fiber Identifiers- VFL
Tribrer Best Sun Technology
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
JW3306D LIVE FIBER IDENTIFIER WITH LOSS ESTIMATE NEW
JW3306D LIVE FIBER IDENTIFIER WITH LOSS ESTIMATE NEW
JW3306D LIVE FIBER IDENTIFIER WITH LOSS ESTIMATE
Features Indicate the signal directions and power in fiber; Indicate the signal presence or absence(Live or dark fiber); Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) with audible warning; Displays the relative core power ; Easy-to-replace adaptors; Lower power indication; Build in VFL function.
Specifications Type
JW3306D
Identified Wavelength Range
750-1700 nm
Insertion Loss
1.0dB
Fiber Type
< 3mm Fiber
Identified Signal Type
270Hz/1KHz/2KHz
Display Type
LED
Detector Type
1mm InGaAs
Minimum detection power
-35dBm(1550nm)
-30dBm(1310nm)
Center Wavelength
650nm
Output Power
10mW
Alkaline Battery
2*AA
Battery Life
> 60H
Operating Temperature
0~+50?
Storage Temperature
-20~+60?
Dimension
25.5*8*5.5cm
Weight
0.3kg
JW3306D LIVE FIBER IDENTIFIER WITH LOSS ESTIMATE NEW
JW3306D LIVE FIBER IDENTIFIER WITH LOSS ESTIMATE
Features Indicate the signal directions and power in fiber; Indicate the signal presence or absence(Live or dark fiber); Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) with audible warning; Displays the relative core power ; Easy-to-replace adaptors; Lower power indication; Build in VFL function.
Specifications Type
JW3306D
Identified Wavelength Range
750-1700 nm
Insertion Loss
1.0dB
Fiber Type
< 3mm Fiber
Identified Signal Type
270Hz/1KHz/2KHz
Display Type
LED
Detector Type
1mm InGaAs
Minimum detection power
-35dBm(1550nm)
-30dBm(1310nm)
Center Wavelength
650nm
Output Power
10mW
Alkaline Battery
2*AA
Battery Life
> 60H
Operating Temperature
0~+50?
Storage Temperature
-20~+60?
Dimension
25.5*8*5.5cm
Weight
0.3kg
