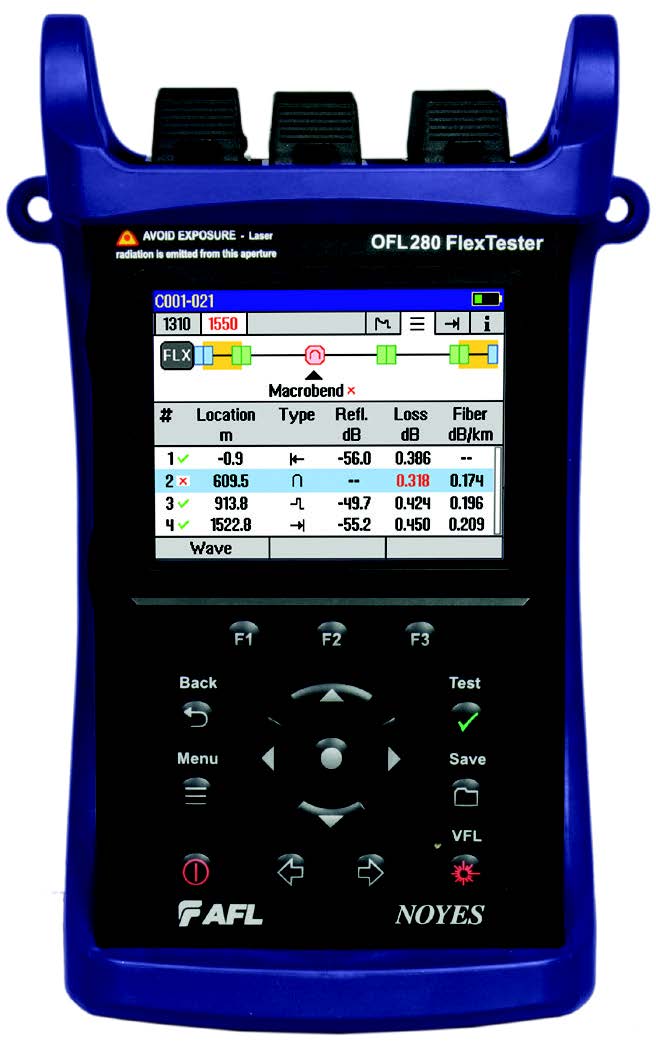

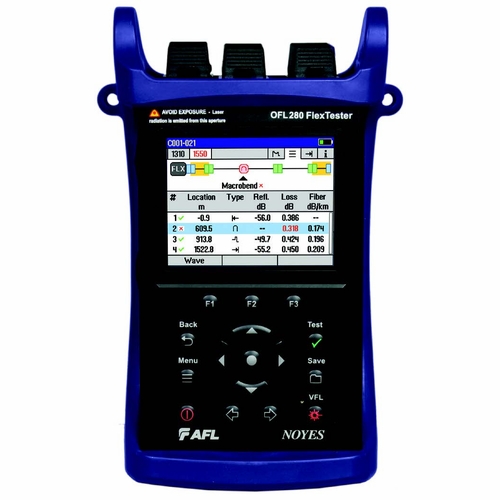

AFL OFL280-103U FLEX TESTER 1310/1550 SM PON OTDR 1310/1550/1625 (REFURBED)
Available*
Item # 53484755
Model # OFL280-103U-
$4,200.00
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
OTDR
Fiber Optic Products
OTDR- Power Meter- Light Source- Idenitifiers- VFL
Fiber OTDR- OSA
AFL Telecommunications
Fiber OTDR Singlemode
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
OFL280-103 FlexTester OTDR (refurbished) 13101-1550-1625 (filtered) in- or out- of service testing pt-pt or PON
The AFL OFL280-10x FlexTester family offers an unmatched combination of optical fiber test functions, ease-of-use, portability, and value. All OFL280 FlexTester models include an integrated single-mode 1310/1550 nm OTDR with PON-optimized and standard test modes, optical power meter, 1310/1550 nm laser source, and visual fault locator. With new LinkMap, pass/fail analysis, macro-bend and splitter detection, launch quality check, plus AFL’s unique ServiceSafe and Wave ID features, OFL280 FlexTesters enable even novice users to troubleshoot like pros. The OFL280 FlexTester family offers four models to best suit your application needs: OFL280-103: Verify both in-service and out-of-service FTTx networks from a single port. Includes 1310/1550/1625 nm live PON OTDR with integrated PON Power Meter. OFL280-102: Most complete out-of-service FTTx PON testing at all PON wavelengths (1310/1490/1550 nm). OFL280-100: Cost-effective 1310/1550 nm OTDR for out-of-service installation testing or troubleshooting both FTTx PON and pointto- point fiber optic networks. Over 1000 OTDR test results (Telcordia SR-4731 .SOR file format) may be saved in the OFL280’s internal memory. Stored OTDR and OPM results may be transferred to PC via wireless Bluetooth® or USB cable. Windows® compatible TRM 2.0® Test Results Manager software is included for OTDR and OPM results viewing, analysis, and professional report generation. Applications Cost-effective point-to-point and FTTH PON testing Troubleshoot in-service FTTH networks, including live PON power measurements plus PON OTDR testing at 1625 nm. Complete multi-wavelength insertion loss tests faster and eliminate setup errors using Wave ID source and power meter. Generate fiber-identifying tones and stable CW signals using integrated optical source. Trace fibers or locate faults using the Visual Fault Locator (VFL). Features Patented in- or out-of-service OTDR testing from a single port Icon-based LinkMap® display with pass/fail for easy network analysis ServiceSafe® live PON detection and OTDR test without service disruption Wave ID reduces insertion loss test time and eliminates setup errors 34/32 dB dynamic range at 1310/1550 nm Best-in-class 0.8/3.5 m event/attenuation dead zones Rugged, hand-held, lightweight (<1 kg) High-contrast, backlit display: Easily viewed, even in direct sunlight Industry-leading battery life: >12 hours continuous operation Instant On: Ready to test in <5 second
