OPTIX AMERICA WRX3000-S1 SM Single Mode OTDR
Available*
Item # 53761055
Model # WRX3000-S1
$1,417.50
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
OTDR
Fiber Optic Products
OTDR- Power Meter- Light Source- Idenitifiers- VFL
Fiber OTDR- OSA
Optix America
Fiber OTDR Singlemode
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

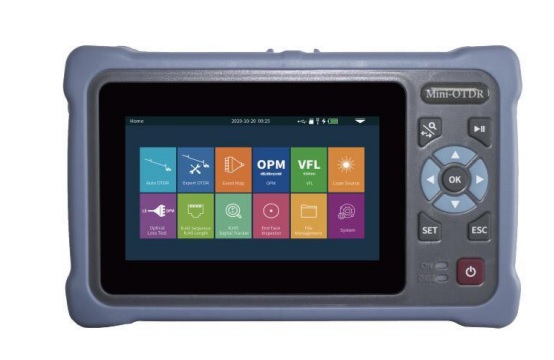

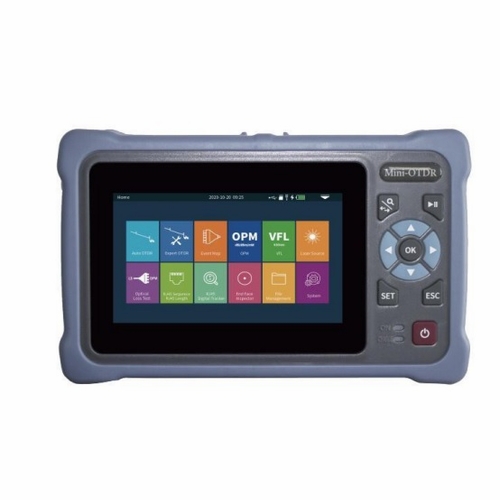

OPTIX AMERICA WRX3000-S1 SM Single Mode OTDR
OPTIX AMERICA WRX3000-S1 SM Single Mode OTDR
The WRX3000 series optical time domain reflectometer (OTDR) adopts a 4.3 inch capacitive touch screen and integrates twelve functions including auto OTDR, expert OTDR, event map, OPM, RJ45 cable tracker, and "computer level" file management to meet various test requirements. The OTDR has a maximum dynamic range of 26dB, 8G memory, and can store more than 200,000 curves. It is also equipped with a 4000mAh high density polymer lithium battery with intelligent power saving management providing up to twelve hours testing time. The WRX3000 series is used to measure the length, loss, and connection quality of optical fiber used in engineering construction, line maintenance & testing, emergency repair, and the development and production of optical fiber cables.
Ordering Information Part # WRX3000-S1 Wavelength 1310nm Dynamic Range 26dB Weight: 0.5kg (1.1 lbs) Size: 173mmx109mmx45mm (6.81 x 4.29 x 1.75 inches)
Included: Host OTDR (battery included) AC/DC Power Adapter 8GTF card (built-in OTDR, Analysis software, User's manual) SC Adapter Cotton piece Calibration certificate; Warranty card Instrument backpack
OPTIX AMERICA WRX3000-S1 SM Single Mode OTDR
The WRX3000 series optical time domain reflectometer (OTDR) adopts a 4.3 inch capacitive touch screen and integrates twelve functions including auto OTDR, expert OTDR, event map, OPM, RJ45 cable tracker, and "computer level" file management to meet various test requirements. The OTDR has a maximum dynamic range of 26dB, 8G memory, and can store more than 200,000 curves. It is also equipped with a 4000mAh high density polymer lithium battery with intelligent power saving management providing up to twelve hours testing time. The WRX3000 series is used to measure the length, loss, and connection quality of optical fiber used in engineering construction, line maintenance & testing, emergency repair, and the development and production of optical fiber cables.
Ordering Information Part # WRX3000-S1 Wavelength 1310nm Dynamic Range 26dB Weight: 0.5kg (1.1 lbs) Size: 173mmx109mmx45mm (6.81 x 4.29 x 1.75 inches)
Included: Host OTDR (battery included) AC/DC Power Adapter 8GTF card (built-in OTDR, Analysis software, User's manual) SC Adapter Cotton piece Calibration certificate; Warranty card Instrument backpack
