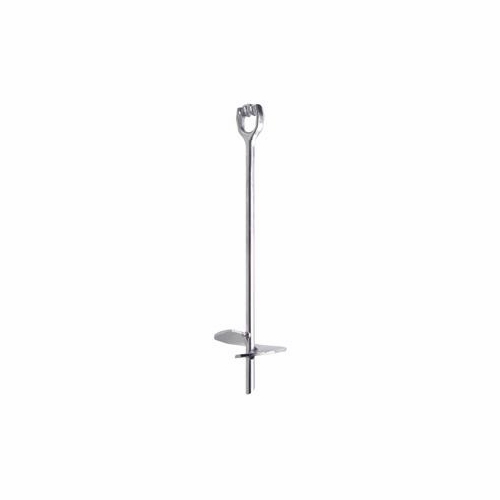

Hubbell 10146 Tripleye 10 Inch No Wrench Anchor With 1 Inch X66 Inch Rod

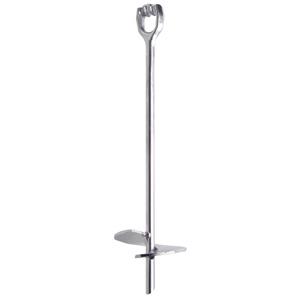

Hubbell Power Systems 10146 Tripleye 10" No Wrench Anchor With 1"X66" Rod Chance No-Wrench Screw Anchors May Be Installed By Hand Or Machine. The Thimbleyer Eye Or Tripleyer Eye On The Rod Has A Large Opening To Admit A Turning Bar For Screwing The Anchor Down. The Eye Will Also Fit Into An Adapter Available From Most Hole-Boring Machine Manufacturers So The Anchor May Be Power-Installed. The No-Wrench Screw Anchor Consists Of A Drop-Forged Steel Thimbleyer Eye Or Tripleyer Eye Rod Welded To A Steel Helix. The Entire Anchor Is Hot-Dip Galvanized For Long Resistance To Rust. No-Wrench Screw Anchors Can Be Installed To A Greater Depth To Reach A Firmer Soil By Using An Extension Rod, Available In Three Lengths Below. Maximum Installing Torque Is 2300 Ft.-Lbs. For 11.4" Diameter Rod. Catalog Numbers 4345, 6346 And Ps816 May Be Ordered With A Forged Thimbleyer Rod Rather Than The Standard Tripleyer Rod. To Order A Thimbleyer Rod Simply Add "1" To The Suffix Of The Catalog Number. Example: Catalog No. 63461.

Anchor Style No Wrench Screw Anchor Component No Wrench Screw Anchor Single Helix Diameter 10" (254 Mm) Number Of Helices 1 Eyenut Style Tripleye Rod Diameter 1.25" (31.7 Mm) Length 66" (1676 Mm) Torque Rating 2,300 Ft Lbs (3,118 N-M) Coating Galvanized Installation Tool E303-0255 Material Type Standard Upc Code 09635906805 Standard Package 1 Standard Package Unit Ea Min Order Qty 1 Weight / Ea. 30.38 Lbs
