HUBBELL R330 Rock Anchor Expanding 1.75 inch x 30inches Long Tripleye 096359051152 *** MIN 5 ***
Available*
Item # 54300200
Model # R330
$99.14
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
ANCHOR
Material and Supplies
Hardware- Screws- Bolts
Anchors- Pole Line
Hubbell Power Systems
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
*** MUST ORDER IN MULTIPLES OF 5 ONLY ***
HUBBELL R330 Rock Anchor Expanding 1.75 inch x 30inches Long Tripleye 096359051152 NEW
HUBBELL R330 Rock Anchor Expanding 1.75 inch x 30inches Long Tripleye 096359051152 NEW
Item # R330 HUBBELL Rock Anchor Expanding 1.75 inch x 30inches Long Tripleye UPC: 096359051152

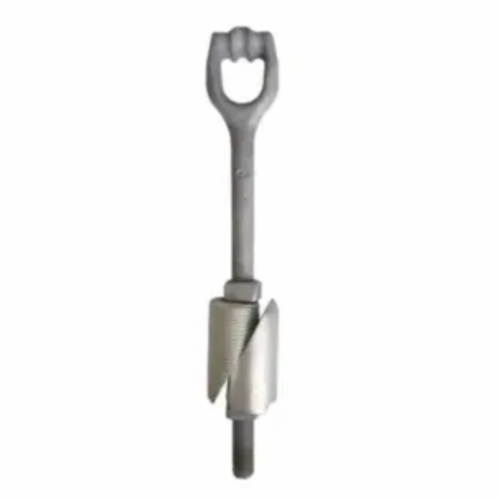

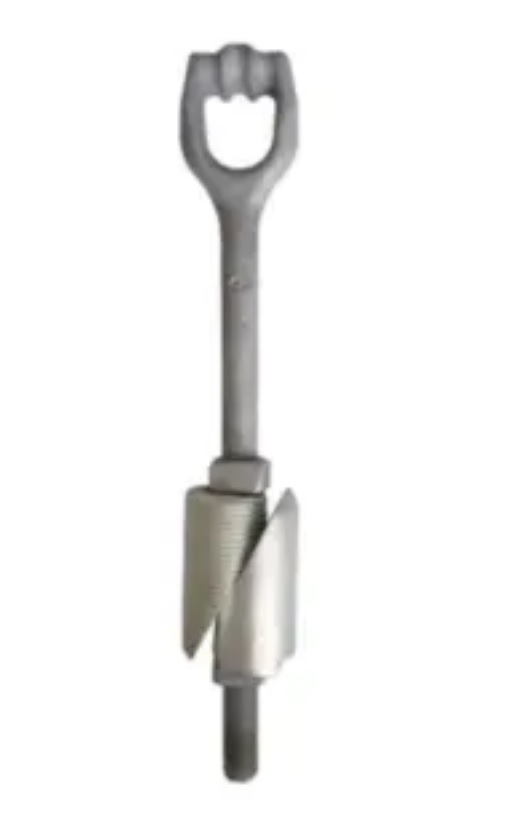

Expanding Rock Anchor 0.75" (19.1 mm) Diameter Rod, 30" (762 mm) long with Tripleye. Features Anchor expands and wedges against solid walls of rock The large drop-forged Tripleye® rod holds up to three guy strands Requires 2" diameter hole in competent rock a minimum depth of 12" Hot dipped galvanized per ASTM A153
General Application Earth Tension Anchoring Catalog Number R330 Coating Galvanized, ASTM A-153 Eyenut Style Tripleye Strength Note Ultimate strength ratings apply to properly installed anchors only. Failure to install within 5° of alignment with the guy load may significantly lower strength. Recommended minimum installation depth is 12" in solid rock. Tensile Strength 23000 lb. Type Rock Anchors UPC 096359051152
Dimensions Anchor Hole Size 2 in Diameter 1.75 in Dimensions 30.000 in x 2.250 in x 2.250 in Height 2.25 in Length 30 in Rod Diameter 0.75 in Weight 6.86 lb Width 2.25 in
Certifications And Compliance RUS Listed Reference z - Anchors, Rock
Logistics Pallet Quantity 50 Standard Package 5
