MACLEAN J6510 5/8 inch Eyenut, Thimbleye
Available*
Item # 54973605
Model # J6510
$7.56
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
NUT
Material and Supplies
Hardware- Screws- Bolts
Nuts - Bolts- Washers
Hubbell Power Systems
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
MACLEAN J6510 5/8 inch Eyenut, Thimbleye
MACLEAN J6510 5/8 inch Eyenut, Thimbleye
P/N J6510 MACLEAN 5/8 inch Eyenut Thimbleye
J1092, J1093, J6510 are RUS approved.
Thimble eyenuts are used for span, head and stub guying, twin eyenuts accomodate double guys. Features • Eyenuts are tapped to fi t hot dip galvanized bolts made to ANSI specifi cations • Designed to develop strength ratings consistent with the bolts with which they are used - i.e. 1/2" = 85000 lbs, 5/8" = 13,550 lbs, 3/4" = 20,050 lbs, 1" = 33,500 lbs Material Steel hot dip galvanized

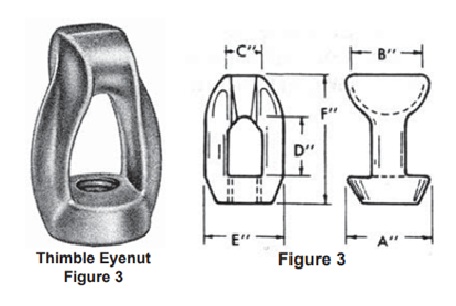

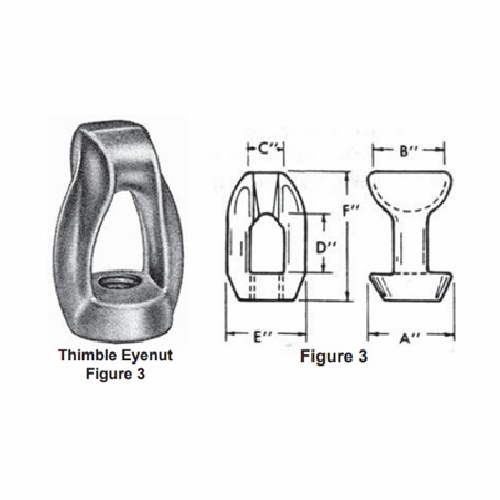

P/N J6510 Figure 3 Bolt Size 5/8 inch A 1 1/2 B 1 1/2 C 7/8 D 1 3/8 E 1 7/8 F 3 Weight/100 (lbs) 100
MACLEAN J6510 5/8 inch Eyenut, Thimbleye
P/N J6510 MACLEAN 5/8 inch Eyenut Thimbleye
J1092, J1093, J6510 are RUS approved.
Thimble eyenuts are used for span, head and stub guying, twin eyenuts accomodate double guys. Features • Eyenuts are tapped to fi t hot dip galvanized bolts made to ANSI specifi cations • Designed to develop strength ratings consistent with the bolts with which they are used - i.e. 1/2" = 85000 lbs, 5/8" = 13,550 lbs, 3/4" = 20,050 lbs, 1" = 33,500 lbs Material Steel hot dip galvanized
P/N J6510 Figure 3 Bolt Size 5/8 inch A 1 1/2 B 1 1/2 C 7/8 D 1 3/8 E 1 7/8 F 3 Weight/100 (lbs) 100
