EMC EM3955-10S BSW CONN W/6 inch number 10AWG WIRE AND YOKE
Available*
Item # 55098750
Model # EM3955-10S
$10.79
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
CLAMP
Material and Supplies
Bonding- Grounding
Clamps
EMC Electric Motion Company
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

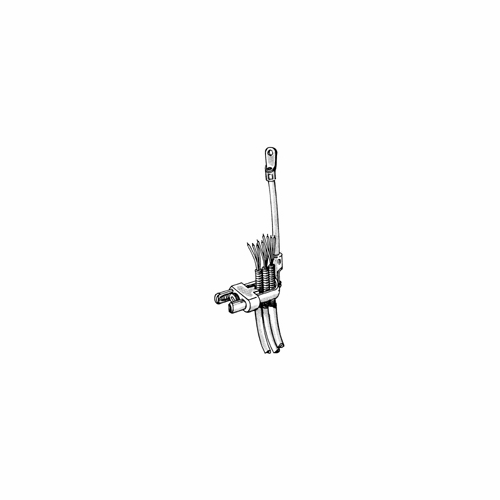

ELECTRIC MOTION COMPANY EM3955-10S BSW CONN W/6" #10AWG WIRE AND YOKE NEW EM3955-10S — BSW connector with 6 inches of #10 AWG lead wire and 1-inch long yoke for one or two service wires. 10/bg, 100/bx, 11 lb/bx....
An assembly consisting of a "U"-shaped shield connector and bonding harness. For bonding and grounding buried service wire shields in pedestals. Long version of connector allows the installer to stack multiples of buried service wires. Connector screw end is removable to allow easy adding of new buried service wires or easy toning. #6 AWG allows maximum current capacity. Flexible lead allows for bonds to float so connection will not loosen. UL and RUS listed for safety.
EM3955-6L/8100-15 — Connector assembly with 15" #6 AWG lead. 100/bx, 23 lb/bx.
EM3955-6L/8100-36 — Connector assembly with 36" #6 AWG lea.d 100/bx, 39 lb/bx.
EM3956-6L— Shield connector with 6 inches of #6 AWG lead wire and long yoke (for one or multiple BSW shields together). 10/bg, 100/bx, 14 lb/bx.
EM3956-10S — BSW shield connector with 6 inches of #10 AWG lead wire. 10/bg, 100/bx, 7 lb/bx.
EM3955-10S — BSW connector with 6 inches of #10 AWG lead wire and 1-inch long yoke for one or two service wires. 10/bg, 100/bx, 11 lb/bx.
An assembly consisting of a "U"-shaped shield connector and bonding harness. For bonding and grounding buried service wire shields in pedestals. Long version of connector allows the installer to stack multiples of buried service wires. Connector screw end is removable to allow easy adding of new buried service wires or easy toning. #6 AWG allows maximum current capacity. Flexible lead allows for bonds to float so connection will not loosen. UL and RUS listed for safety.
EM3955-6L/8100-15 — Connector assembly with 15" #6 AWG lead. 100/bx, 23 lb/bx.
EM3955-6L/8100-36 — Connector assembly with 36" #6 AWG lea.d 100/bx, 39 lb/bx.
EM3956-6L— Shield connector with 6 inches of #6 AWG lead wire and long yoke (for one or multiple BSW shields together). 10/bg, 100/bx, 14 lb/bx.
EM3956-10S — BSW shield connector with 6 inches of #10 AWG lead wire. 10/bg, 100/bx, 7 lb/bx.
EM3955-10S — BSW connector with 6 inches of #10 AWG lead wire and 1-inch long yoke for one or two service wires. 10/bg, 100/bx, 11 lb/bx.
