GENERAL WIRE 21523 56 PAIR 24 AWG PLENUM REEL/1000 foot SPECIAL CAP T1 CABLE
Available*
Item # 55300000
Model # 1x BRIDLE WIRE
$6,453.00
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
BRIDLE WIR
Wire and Cable
Wire- Inside Wiring
Jumper
AT&T
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

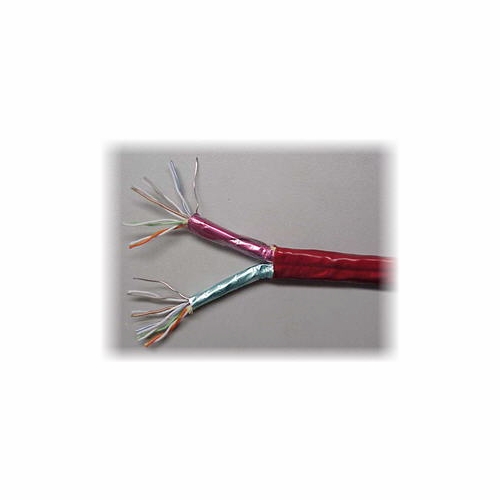

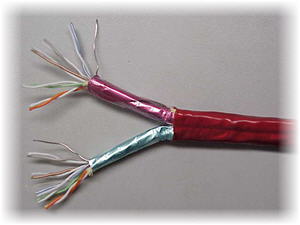

GENERAL WIRE 21523 56 PAIR 24 AWG PLENUM REEL/1000' SPECIAL CAP T1 CABLE 56 PR #24 T-1 Plenum Special Cap
T-Screen Cables
The cable products outlined here are designed for a multitude of telecommunications uses, including T-1, T-3, HI-CAP, Primary rate ISDN, DSL, HDSL, ADSL, SDSL, VDSL and Central Office Interconnects.
The product line is offered in Plenum, Riser and General Rated Safety Compliance so it is suitable for any installation environment. All of these cables are in stock from 2 Twisted Pairs to 56 Twisted Pairs.
T-Screen Cables - Key Features 1.Termination Compatibility - Wire wrap, Punch down Block and RJ 45 connectorization compatibility. 2.Cat 5 type electrical characteristics that provide the widest signal bandwidth and future application upgrade potential. 3.Excellent impedance stability across transmission frequency spectrum. 4.Complete send and receive signal isolation 5.Full safety compliance 6.The shields of the send and receive groups are color coded, making for faster, easier, more accurate termination and eliminating the need to continuity test. 7.Cables are sequentially marked for footage. This coupled with the send and receive groups under one jacket eliminates the need for cutting and paralleling prior to installation. This feature also eliminates mismatched lengths and other waste generating mistakes. Ripcords under jackets provide termination ease and accuracy.
Performance Compliance
Bellcore TA-TSY-000131 Customer Premises Plenum Cables and Wire Bellcore TA-TSY-000132 Customer Premise Shielded Station Wire Bellcore TA-TSY-0000140 Standard Shielded Twisted Pair Cables
Safety Compliance
Underwriters Lab- Subject 13, 444, 910 and 1581 Canadian Standards Association - PCC FT 6 National Electric Code- Article 800 CPM(Plenum) CMR(Riser) CM(General)
Physical and Environmental Characteristics
The best materials have been selected for this family of cables. They are designed to stand up to any physical or environmental setting that could be encountered in normal applications and installs.
Description Conductor AWG #24 Tinned Copper Melting Point 275 Degrees C Flashpoint 655 Degrees C Degradation Temperature 425 Degrees C Embrittlement Temperature -196 Degrees C Fuel Value >2200, < 6600 C NET Corrositivity < 15 Abrasion Resistance Coefficient <833 Scrapes/Mil
These Plenum rated cables have excellent characteristics for Physical, Environmental, Chemical, Aliphatic Hydrocarbon and Solvent Resistance, as well as being flame proof.
Non-Plenum rated cables are more flexible. However, due to their PVC jacketing compounds, the physical and environmental characteristics are not as favorable.
Electrical Characteristics
The cables are designed and manufactured utilizing Category 5 principles and material selection to produce the widest bandwidth possible.
Description Characteristic Impedance 100 +/-4 Ohms @ 772 kHz
Attenuation 6.7 db/1000 Ft @ 772 kHz
Near End Crosstalk 80 db @ 1.544 MHz 85 db @ 722 kHz
Far End Crosstalk 85 db @ 1.544 MHz 90 db @ 772 kHz
Insertion Loss <10 db/1000 @ 1.544 MHz < 7 db @ 772 kHz
Capacitance 15 Picofareds/Foot Max
DC Resistance < 28.6 Ohms/1000 Ft
T-1 Distance 480 Ft
The family of T-1 cables is ideal for telecommunications interconnects including T-1, HI CAP, Digitized Subscriber Lines, Primary Rate ISDN or Central Office Applications. In the final analysis, these cables are the most cost/benefit effective was to provide long term interconnects in the central office environment.
PLENUM T-1 Cables
21531 2 PR #24 T-1 Plenum Special Cap
21545 6 PR #24 T-1 Plenum Special Cap
21518A 10 PR #24 T-1 Plenum Special Cap
21519A 16 PR #24 T-1 Plenum Special Cap
21522A 28 PR #24 T-1 Plenum Special Cap
21523 56 PR #24 T-1 Plenum Special Cap
PVC T-1 Cables
21551 2 PR #24 T-1 PVC Special Cap
21612 6 PR #24 T-1 PVC Special Cap
21613 10 PR #24 T-1 PVC Special Cap
21614 16 PR #24 T-1 PVC Special Cap
21615 28 PR #24 T-1 PVC Special Cap
21743 56 PR #24 T-1 PVC Special Cap
