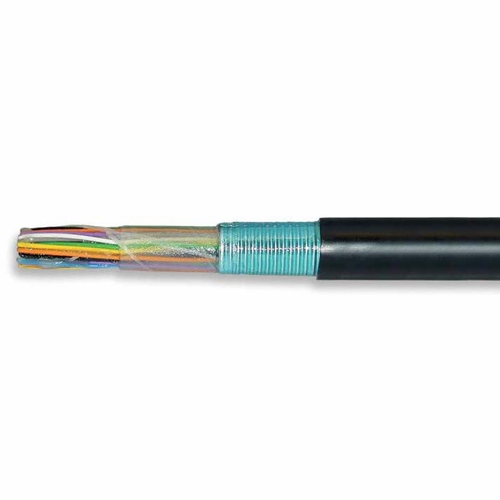

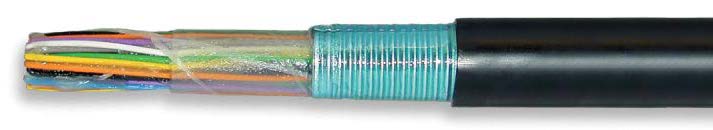

SUPERIOR PE89 6PR 22AWG SEALPIC-FSF 5000 FEET

Product Description SEALPICŪ-FSF Cables are designed for low risk direct burial or duct applications where protection from moisture is required and aluminum shielding is desired. SEALPIC-FSF may be used aerially, but must be attached to a support strand. Applications Low risk direct burial Underground conduit Lashed aerial

Features Benefits Twisted into pairs with varying lay lengths Minimizes crosstalk Core wrap Provides thermal protection Filled core Moisture resistant Fully flooded shield interfaces Inhibits corrosion and water migration Black, polyethylene jacket Provides a tough, protective covering designed to withstand exposure to direct sunlight, atmospheric temperature changes and stresses expected in standard installations

Specifications Conductor Solid annealed copper Insulation Dual insulation consisting of an inner layer of foamed, natural polyolefin over which is applied a solid (skin) layer of polyolefin colored in accordance with industry standards Twisted Pairs Individual insulated conductors; twisted into pairs with varying lay lengths; specific color combinations provide pair identification . 25-Pair Core Pairs are assembled into a cylindrical core > 25-Pair Core Cables larger than 25-pair are assembled into units, which are then used to assemble the core; units are identifiable using color-coded binders Filling Compound 80‹C ETPR compound, completely filling the interstices between the pairs and under the core wrap Core Wrap Non-hygroscopic, dielectric tape applied over the core Shield Corrugated, copolymer coated, 8 mil aluminum tape applied longitudinally with an overlap; flooded shield interfaces Jacket Black, polyethylene Jacket Marking Identifying information includes a telephone handset, cable code, pair count, AWG, date of manufacture and sequential length markings at 2 foot intervals Standards Compliance ANSI/ICEA S-84-608-2007 RDUP 7 CFR 1755.890 (PE-89) RoHS-compliant
