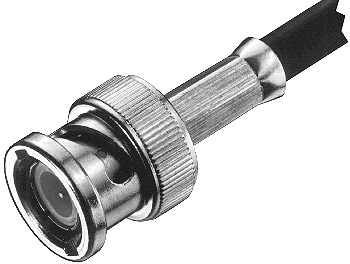

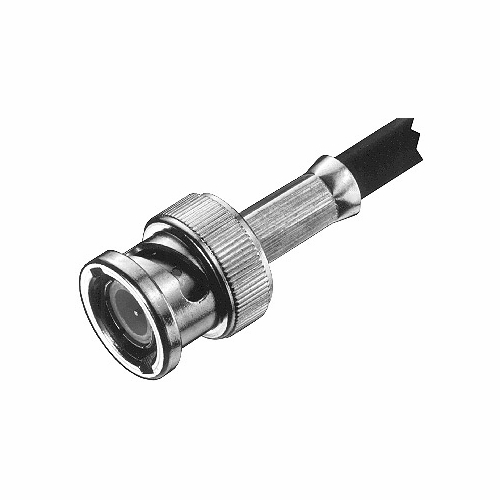

AMP 1-221128-1 RG62 TWIST LOCK CONNECTOR

AMP 1-221128-1 RG62 TWIST LOCK CONNECTOR NEW The AMP BNC RF connector family with bayonet locking coupling provides highly reliable, quick connect /disconnect coaxial connections. Exclusive single and O crimp terminations allow positive insulation grip and require absolutely no soldering, providing terminations at a very low overall applied cost. Available in both 50 and 75 ohm versions, these connectors feature numerous styles including cable plugs and jacks, adapters and printed circuit board connectors. In addition to a variety of crimp type terminations, connectors are furnished in field replaceable and twist-on styles. These connectors accept a wide range of coaxial cables and are intermateable with industry standard connectors designed to MIL-C-39012 specifications.

AMP can also supply low cost alternatives with an extensive commercial type product line. A lower cost consumer series product offers the capability to supply center contacts in strip form and allow for automated center contact crimp technology. All connectors are designed around the mil-specifications, but utilize low-cost materials, offering comparable mechanical and electrical performance.

Amp straight Connector Plug Coaxial Cable Crimp on (hex tyoe) for Coaxial Cable Type (RG/U or Mfg.): 58, 58A, 58B, 58C . Commercial garde, 50 Ohms
