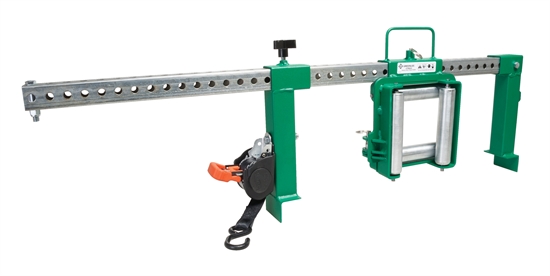

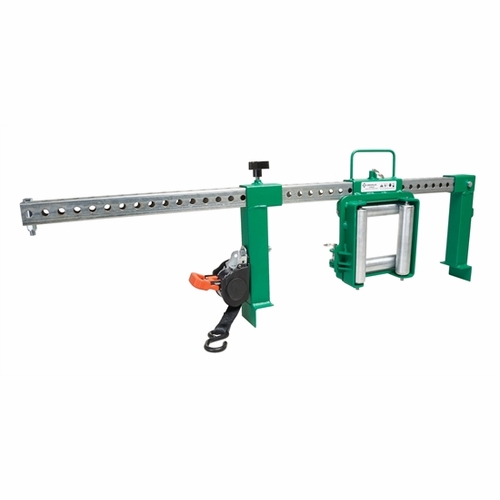

GREENLEE CTR200 ROLLER CABLE - HEAVY DUTY (PKGD) 783310027973 /52067733
Available*
Item # 79992582
Model # 783310027973
$1,075.20
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
TUGGERS
Tools
Line Construction- Placing
Puller- Tuggers- Winches
Greenlee Textron
Puller Parts
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
GREENLEE CTR200 ROLLER,CABLE - HEAVY DUTY (PKGD) 783310027973 /52067733 NEW
DESCRIPTION:
No loose pieces
Adjustable legs to fit onto tray width sizes of 12" (304.8 mm) to 36" (914.4 mm)
Mounting system above tray
4 conveyer roller guide with 2 retained spring pull-pin release to easily remove cable from both sides
Closed conveyer roller guide that traps cable within guide without damaging cable jacket
6' (1.8 m) long durable retractable ratchet strap for sturdy assembly onto tray
Easily handle forces of up to 200 lbs (45.4 kg)
Designed and Assembled in USA
SPECIFICATIONS:
Application : Use to assist pulling cables along non basket-style cable trays. Designed to aid load forces during cable pulls especially right before 90ø bends and offsets without taking space up inside the tray.
Cable Size : 4" (101 mm)
Capacity : 200 lb (90 kg)
Height : 14-1/4" (362 mm)
Length : 42-3/4" (1085.9 mm)
Overall Height : 14-1/4" (362 mm)
Overall Length : 42-3/4" (1085.9 mm)
Pulling Capability : 200 lb (90 kg)
Roller Opening Size : 4" (101.6 mm) square
Weight : 19.9 lb (9 kg)
Width : 4-1/4" (108 mm)
Cat No: CTR200
UPC No: 783310027973
PRODUCTS > Pulling > PULLING ACCESSORIES > Tray Rollers > ROLLER,CABLE - HEAVY DUTY (PKGD)
