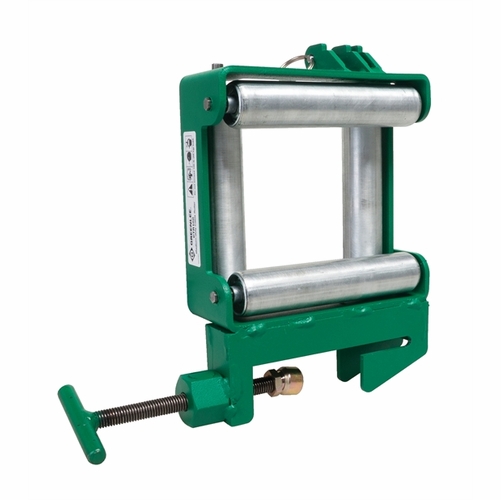

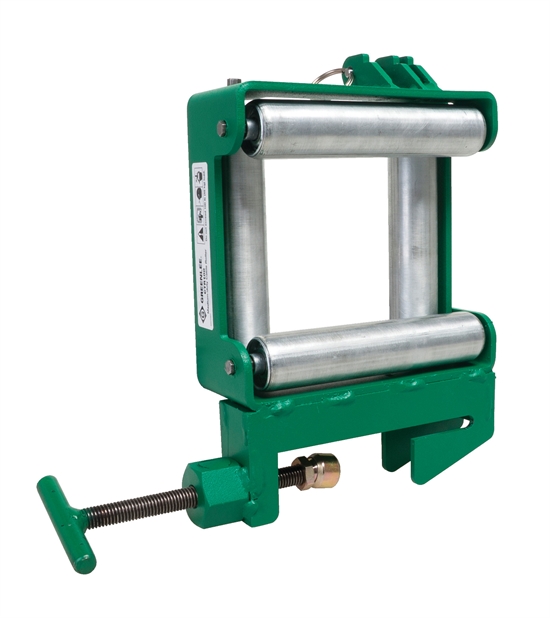

GREENLEE CTR100 ROLLER CABLE - MEDIUM DUTY (PKGD) 783310028109 /52067765
Available*
Item # 79992584
Model # 783310028109
$664.15
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
TUGGERS
Tools
Line Construction- Placing
Puller- Tuggers- Winches
Greenlee Textron
Puller Parts
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
GREENLEE CTR100 ROLLER, CABLE - MEDIUM DUTY (PKGD) 783310028109 /52067765 NEW
DESCRIPTION:
2x faster setup and disconnect
No loose pieces
Quick adjust push button to tightly fasten onto tray
4 conveyer roller guide with retained spring pull-pin release to easily remove cable
Closed conveyer roller guide that traps cable within guide without damaging cable jacket
Easily handle forces of up to 100 lbs (45.4 kg)
Designed and Assembled in USA
SPECIFICATIONS:
Application : Use to assist pulling cables along non basket-style cable trays. Designed to aid load forces during cable pulls especially right before 90 degree bends and offsets.
Cable Size : 4" (101 MM)
Capacity : 100 lb (45 kg)
Height : 11-1/8" (282.6 mm)
Length : Retracted: 9-1/4" (235 mm) Extended: 13-3/4" (349.3 mm)
Overall Height : 11-1/8" (282.6 mm)
Overall Length : Retracted: 9-1/4" (235 mm) Extended: 13-3/4" (349.3 mm)
Pulling Capability : 100 lb (45 kg)
Roller Opening Size : 4" (101.6 mm) square
Weight : 9 lb (4 kg)
Width : 3-1/2" ( mm)
Cat No: CTR100 UPC No: 783310028109
PRODUCTS > Pulling > PULLING ACCESSORIES > Cable Roller Guides > ROLLER, CABLE - MEDIUM DUTY (PKGD)
DESCRIPTION:
2x faster setup and disconnect
No loose pieces
Quick adjust push button to tightly fasten onto tray
4 conveyer roller guide with retained spring pull-pin release to easily remove cable
Closed conveyer roller guide that traps cable within guide without damaging cable jacket
Easily handle forces of up to 100 lbs (45.4 kg)
Designed and Assembled in USA
SPECIFICATIONS:
Application : Use to assist pulling cables along non basket-style cable trays. Designed to aid load forces during cable pulls especially right before 90 degree bends and offsets.
Cable Size : 4" (101 MM)
Capacity : 100 lb (45 kg)
Height : 11-1/8" (282.6 mm)
Length : Retracted: 9-1/4" (235 mm) Extended: 13-3/4" (349.3 mm)
Overall Height : 11-1/8" (282.6 mm)
Overall Length : Retracted: 9-1/4" (235 mm) Extended: 13-3/4" (349.3 mm)
Pulling Capability : 100 lb (45 kg)
Roller Opening Size : 4" (101.6 mm) square
Weight : 9 lb (4 kg)
Width : 3-1/2" ( mm)
Cat No: CTR100 UPC No: 783310028109
PRODUCTS > Pulling > PULLING ACCESSORIES > Cable Roller Guides > ROLLER, CABLE - MEDIUM DUTY (PKGD)
