Product Description

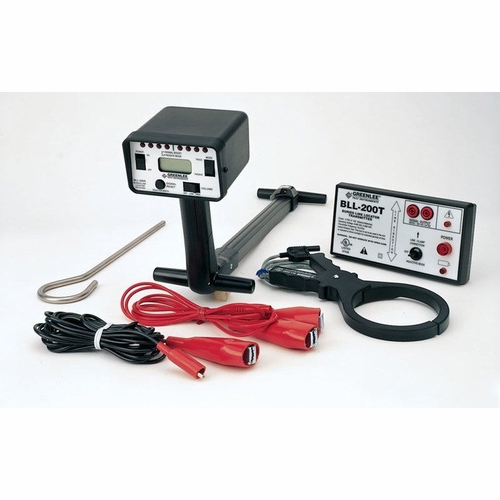

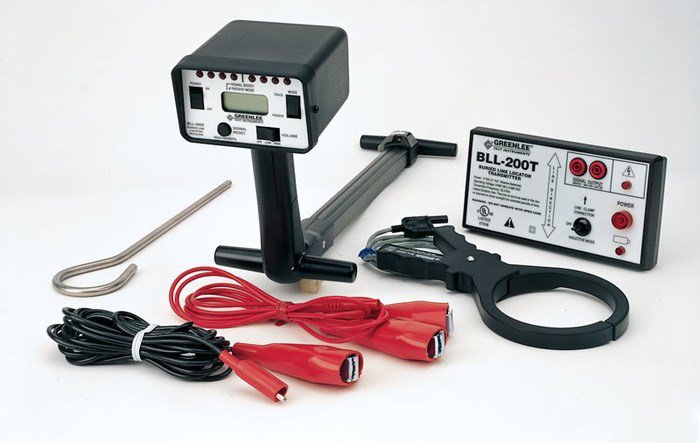

Greenlee Bll-200 Locator-Buried Line 50077961/783310077961 New
Description: Locator-Buried Line
Led And Lcd Signal Strength Indicators Make It Quick And Easy To Find Exact Line Location
Lightweight And Ergonomically Balanced
Automatic Signal Boost Makes It Easy To Trace Lines, Even Those With Very Weak Signals
Receiver May Be Used In Active Or Passive Mode
Receiver Locates Multiple Passive Frequencies With A Single Setting
Receiver Automatically Locks Out Passive Range When It Detects A Transmitter Signal, Reducing The Chance Of Tracing Other Lines Carrying Weaker Signals
Microprocessor-Based Circuitry Delivers Increased Accuracy And Features Auto-Gain Control In All Environments
Traces 20 Ft (6 M) Underground And Provides Depth Readings Up To 15 Ft (4.57 M)
Transmitter Can Be Connected To Live Lines Up To 600V
Molded Carrying Case Included
Specifications:
Battery : 6 V 4 Aa Transmitter, Receiver
Current : 13 Milamp (Open Line), 150 Milamp (Live Or Shorted Line) Transmitter
Depth Range : 0 - 15.000 Ft Measures (Plus Or Minus 10 Pct Reading + 0.200 Ft), 0 - 20.000 Ft Traces (Plus Or Minus 10 Pct Reading + 0.200 Ft) Receiver
Depth Resolution : 0.100 Ft Increments
Dimensions : 7.500 In (190.500 Mm) X 4.000In (101.600 Mm) X 2.100 In (53.000 Mm) Transmitter, 4.100 In (104.100 Mm) X 8.500 In (215.900 Mm) X 38.000 In (965.200 Mm) Receiver
Frequency : 33.3 Khz Transmitter
Operating Voltage : 0 - 600 Vac, 0 - 300 Vdc Transmitter
Passive Trace Frequency : 12 Hz - 24 Khz
Storageoperatingtemperature : 0 - 270 Deg F (-17 To 50 Deg C) Transmitter And Receiver
Weight:
? 15.000 Oz (425.000 Gm) With Batteries And Clamp Transmitter
? 1.750 Lb (794.000 Gm) Receiver
Cat #: Bll-200 Upc #: 50077961/783310077961
