CIRCA 1360-30 30V Solid State Station Protector
Available*
Item # 10953730
Model # 801008
$12.18
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
FUSES
Material and Supplies
Network Interface Device- NIDS
Network Interface Device
Circa Telecom USA Inc
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

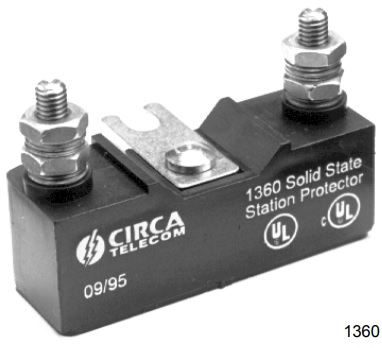

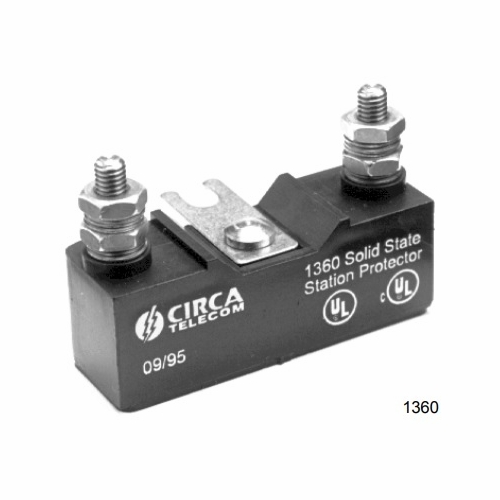

CIRCA 1360-30 30V Solid State Station Protector
CIRCA TELECOM 1360-30 30V Solid State Station Protector 801008
Model # 1360-30 Order # 801008 Breakdown Volts 30V Dimensions (HxWxD) 1.2 x 2.25 x 1.5 inches
The models 1360 and 1360B are designed to provide superior transient and power fault protection for most standard station protection applications. The characteristics of the solid state protector are far superior to gas tube technology in speed of response to faults and are virtually immune to overshoot, aging, and repeated tripping within rated limits. The balanced configuration (model 1360B) provides the best protection against line to line metallic surges where the transient on one side slightly lags the other. A surge on either side of the line will cause both sides of the device to fire, providing simultaneous grounding. Nominal breakdown voltage for both devices is 300VDC. All station protectors come with an external fail-safe mechanism that ensures safe operation even under the most adverse conditions. Under continuous surge conditions, the device will short both sides of the circuit to ground
CIRCA TELECOM 1360-30 30V Solid State Station Protector 801008
Model # 1360-30 Order # 801008 Breakdown Volts 30V Dimensions (HxWxD) 1.2 x 2.25 x 1.5 inches
The models 1360 and 1360B are designed to provide superior transient and power fault protection for most standard station protection applications. The characteristics of the solid state protector are far superior to gas tube technology in speed of response to faults and are virtually immune to overshoot, aging, and repeated tripping within rated limits. The balanced configuration (model 1360B) provides the best protection against line to line metallic surges where the transient on one side slightly lags the other. A surge on either side of the line will cause both sides of the device to fire, providing simultaneous grounding. Nominal breakdown voltage for both devices is 300VDC. All station protectors come with an external fail-safe mechanism that ensures safe operation even under the most adverse conditions. Under continuous surge conditions, the device will short both sides of the circuit to ground
