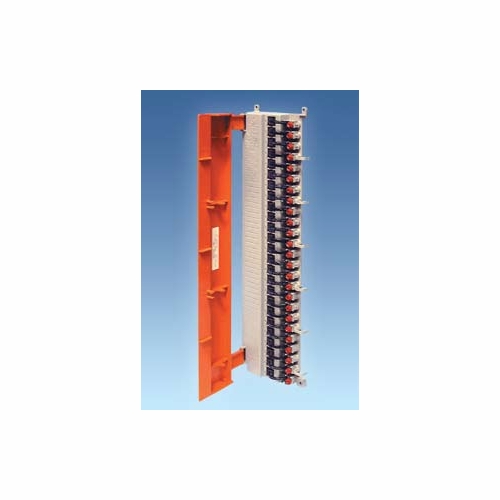

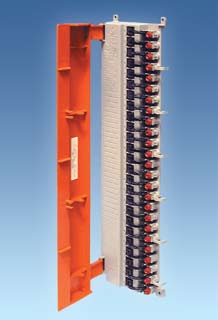

Afl Sni-2125-2H-1 25 Pair Network Interface Device ***Minimum Order Is 10***

Afl Telecommunications Sni-2125-2H-1 25 Pair Network Interface Device ***Minimum Order Is 10*** The Sni-2125 Is A Compact Network Interface Device (Nid) Designed For 25-Pair Indoor Applications. Constructed Of A Thermoplastic Alloy And The Highest Quality Components, The Sni-2125 Is Designed To Provide Years Of Uninterrupted Service. The Sni-2125 Is Provided With A Male 50-Pin Connector For The Network Connection (66-Type Punchdown Clips Are Optional) And Press-Fit Wiring Bridges Featuring Multi-Washer Screws On The Subscriber Side. The Sni-2125 Can Be Stacked Vertically For Greater Than 25-Pair Applications. The Unit Is Available Without The Subscriber Wiring Bridges For Use As A 50-Pin To Rj-11 Adapter Or Patch Block. Specifications Parameter Value Construction Precision Injection-Molded From Rugged Engineering Thermoplastic Plugs And Jacks 50 Micro Inches Of Hard Gold Over 100 Micro Inches Of Nickel-Plated Phosphor Bronze Terminal Screws Plastic Head, Stainless Steel 1.4" Hex-Slotted Multi-Washer (Brass) Screws Mounting Wall Or Backboard Via Mounting Feet Benefits Dimensions (H X W X D) 16.25？ X 5.13？ X 1.63？ . 25-Pair Network Interface . Optional Remote Half Ringer Electronics . Rugged Thermoplastic Alloy Housing . 50-Pin Connector Or Optional 66-Type Punchdown On Network Side . Multi-Washer Screws On Subsciber Side . Field Replaceable Wiring Bridges . Stack Units Vertically Sni-2125 Sni-2125 Basic Unit 1 1 = Male 50-Pin Connector On Network Side, Screw Terminals On Subscriber Side 2H = 66 Clips On Network Side (3/8？ Cover Fastener), Screw Terminals On Subscriber Side 2S = 66 Clips On Network Side (Security Cover Fastener), Screw Terminals On Subscriber Side 5 = Male 50-Pin Connector On Network Side, No Wiring Bridge On Subscriber Side Termination 1 Type Of Electronics 1 = Interface Module Only 2 = Half Ringer Equivalence Example: Sni-2125 . 1 . 1 This Model Number Indicates That The Following Has Been Ordered: Sni-2125 Multiline Network Interface Device, Male 50-Pin Connector On Network Side, Screw Terminals On Subscriber Side, Interface Only. Snir-2125 25-Pair Network Interface Device Standard Configurations Model # Part # Sni-2125 Consult Customer Service C 2002-2008, Afl Telecommunicationstelecommunications, All Rights Reserved. Revision 1.1, 12.08.08 Specifications Are Subject To Change Without Notice. Custom
