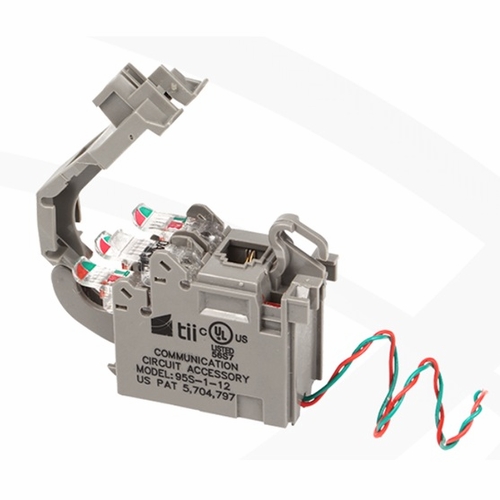

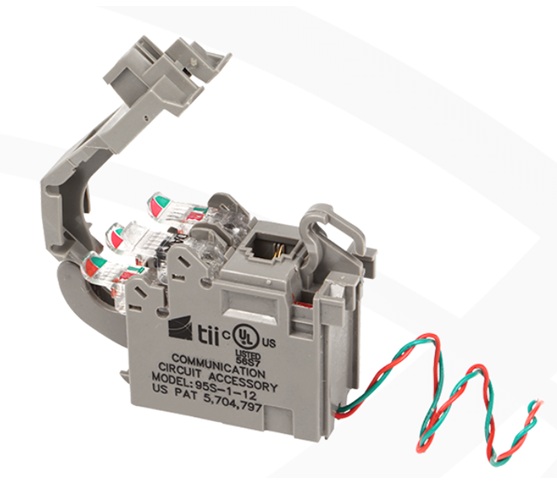

Tii 95S-1-12 Sealed Adsl Pots Splitter Mod New
Available*
Item # 11116550
Model # 95S-1-12
$27.00
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Nids
Material and Supplies
Network Interface Device- NIDS
Network Interface Device
Corning Inc
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
Tii 95S-1-12 Sealed Adsl Pots Splitter Mod New
Tii 95S-1-12 Sealed Adsl Pots Splitter Mod New
P/N 95S-1-12 Tii Sealed Adsl Pots Splitter Module Description: Vdsl2/Asdl2+ Pots Splitter With Wire Leads
The 95S Series Dsl Pots Splitter Splits The Combined Voice And Data Signals Carried On Telephone Lines Providing Separate Outputs For Both Phone And Data Services. The 95S-1-12 Utilizes Enhanced Circuit Components To Meet Vdsl2/Adsl2+ Splitter Specifications For Advanced Data And Iptv Deployments.
Key Product Benefits X Module’S Unique Design Provides Customer Bridging And Dsl Pots Splitting In One Product X Module Easily Snaps In And Out Of The Customer Side Of The Nid And Occupies Only One Position, Thereby Not Compromising The Nid’S Overall Capacity X Designed For Use In A Wide Variety Of Network Interface Devides (Nids) At The Customer Premises And Compatible With 5100, 3700, 3600, And 9600 Footprints. X The Tii Splitter Design Makes It Possible To Use A Single Phone Line To Provide Triple Play Services Including Vdsl2/Adsl2+ And Iptv X With Module Installed, An Additional Standard Pots Line Module Is Not Needed X Module Includes Tii’S Unique Patented Switchable Rj-11 Jack (Auto-Jack®). The Auto-Jack® Does Not Require And Rj-11 Plug For Normal Operation And Delivers Unparalleled Reliability X When Engaged, The Tii Auto-Jack® Connects The Rj-11 Test Plug Contacts To The Central Office (Co) For Dial Tone Validation While Diconnecting The Cutomer From The Circuit X Auto-Jack® Assembly Includes A Sealed Test Point Access Feature, Which Allows The Craft To Test Subscriber Wiring Even While A Test Plug Is Mated Into The Auto-Jack® Receptacle. This Greatly Facilitates The Testing Process X Standard Features Such As Customer Locking/Telco Bypass, And Hinged Covers Are Available When Installed In A Tii Nid
Industry Standards X Telcordia Third Party Tested X Ansi T1.424 To 30Mhz And G.993.2 Compliant X Auto-Jack® Rj-11 Unit Exceeds Telcordia Gr-49 Core Requirements For Severe Climatic Conditions, Both First And Second Level Lightning Surge Requirements In The Open And Short Circuit Mode X Compliant To Gr49, Gr1089, Gr3167, Tr-Nwt-001195 X Listed To Ul1863
Tii 95S-1-12 Sealed Adsl Pots Splitter Mod New
P/N 95S-1-12 Tii Sealed Adsl Pots Splitter Module Description: Vdsl2/Asdl2+ Pots Splitter With Wire Leads
The 95S Series Dsl Pots Splitter Splits The Combined Voice And Data Signals Carried On Telephone Lines Providing Separate Outputs For Both Phone And Data Services. The 95S-1-12 Utilizes Enhanced Circuit Components To Meet Vdsl2/Adsl2+ Splitter Specifications For Advanced Data And Iptv Deployments.
Key Product Benefits X Module’S Unique Design Provides Customer Bridging And Dsl Pots Splitting In One Product X Module Easily Snaps In And Out Of The Customer Side Of The Nid And Occupies Only One Position, Thereby Not Compromising The Nid’S Overall Capacity X Designed For Use In A Wide Variety Of Network Interface Devides (Nids) At The Customer Premises And Compatible With 5100, 3700, 3600, And 9600 Footprints. X The Tii Splitter Design Makes It Possible To Use A Single Phone Line To Provide Triple Play Services Including Vdsl2/Adsl2+ And Iptv X With Module Installed, An Additional Standard Pots Line Module Is Not Needed X Module Includes Tii’S Unique Patented Switchable Rj-11 Jack (Auto-Jack®). The Auto-Jack® Does Not Require And Rj-11 Plug For Normal Operation And Delivers Unparalleled Reliability X When Engaged, The Tii Auto-Jack® Connects The Rj-11 Test Plug Contacts To The Central Office (Co) For Dial Tone Validation While Diconnecting The Cutomer From The Circuit X Auto-Jack® Assembly Includes A Sealed Test Point Access Feature, Which Allows The Craft To Test Subscriber Wiring Even While A Test Plug Is Mated Into The Auto-Jack® Receptacle. This Greatly Facilitates The Testing Process X Standard Features Such As Customer Locking/Telco Bypass, And Hinged Covers Are Available When Installed In A Tii Nid
Industry Standards X Telcordia Third Party Tested X Ansi T1.424 To 30Mhz And G.993.2 Compliant X Auto-Jack® Rj-11 Unit Exceeds Telcordia Gr-49 Core Requirements For Severe Climatic Conditions, Both First And Second Level Lightning Surge Requirements In The Open And Short Circuit Mode X Compliant To Gr49, Gr1089, Gr3167, Tr-Nwt-001195 X Listed To Ul1863
