INDUSTRIAL TECHNOLOGY THROWMASTER 102A REPAIRED (TEMPO)(GREENLEE)
Available*
Item # 22940000
Model # 102A
$682.50
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
TEST
Test Equipment
Transfer- Throw Sets
One Pair
Greenlee Textron
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
INDUSTRIAL TECHNOLOGY THROWMASTER 102A REPAIRED (TEMPO)(GREENLEE)
INDUSTRIAL TECHNOLOGY THROWMASTER 102A REPAIRED FOR TESTING AND TRANSFER OF METALLIC TELEPHONE CABLE PAIRS

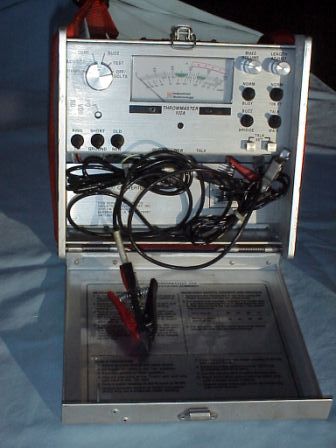

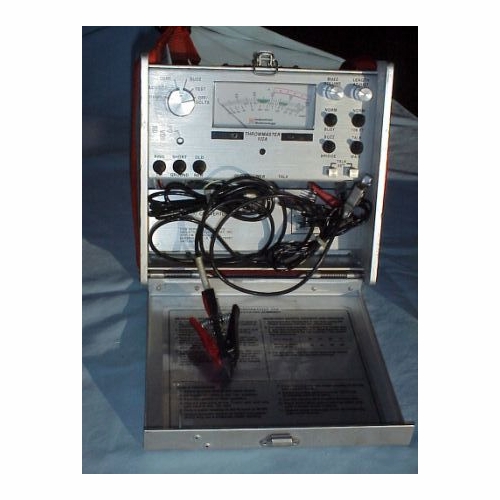

The Throwmaster Cable Test Set 102A is a portable, battery powered instrument for field testing telephone cable pairs. It is normally used by technicians as their primary test set. All functions normally associated with the testing of wire pairs and transfer of service may be accomplished using the Throwmaster 102A.
Accurately measures opens (up to 100,000 feet) as well as voltage, resistance.
Supplies talk battery-Using a unique signaling function, talk battery is supplied and communication established. Handsets or headsets may be used at both ends.
Tests Spare Pairs-Utilizing the same functions as a field test board, tests may be made for shorts, grounds, crosses, opens, splits and high resistance faults.
Tests Working Lines-Working lines may be tested for status of busy, idle, reversed, or special voltage.
Sends simplex 577 Hz tone for pair identification which is silent to subscribers.
Tone Buzz Around-Normally used prior to pair transfers, the Buzz feature allows technicians to test old and new pairs simultaneously for defects and continuity.
Cut Closed (No Break) Cable Transfers-Service may be transferred from one pair to another even while the subscriber is using the phone. There is no interruption of service.
When used as a cut closed transfer set, the 102A BUZZ tone verifies that both the old pair and the new pair are fault free, verifies that the jumper is connected properly, and holds the line in service while the actual wire work is done. The transfer operation may proceed even if the subscriber is on the phone! Operation of the BUZZ tone is completely silent to the subscriber.
The Throwmaster 102A can perform a metallic cable section throw in the same manner as a transfer
Ordering Information
Throwmaster Cable Test Set, Model 102A: Measures in feet and calibrated for AWG wire sizes.
Throwmaster Cable Test Set, Model 102AM: Measures in meters and calibrated for metric wire sizes.
Throwmaster Cable Test Set, Model 102AS: Spanish version of 102AM.
All versions are shipped complete with batteries and cords.
Specifications
`Unit Size: 8.5 x 8 x 3 inches (21.6 x 20.3 x 7.6cm) Weight: 6 lbs (2.7kg) Shipping Weight: 7lbs (3.2kg)
Optional Accessories Soft-Pak Carrying Case (P/N 1400-0135): A durable nylon case that protects the Throwmaster 102A from scuffs and scratches. Handy pockets provide space for paperwork, manuals, and extra leads.
INDUSTRIAL TECHNOLOGY THROWMASTER 102A REPAIRED FOR TESTING AND TRANSFER OF METALLIC TELEPHONE CABLE PAIRS
The Throwmaster Cable Test Set 102A is a portable, battery powered instrument for field testing telephone cable pairs. It is normally used by technicians as their primary test set. All functions normally associated with the testing of wire pairs and transfer of service may be accomplished using the Throwmaster 102A.
Accurately measures opens (up to 100,000 feet) as well as voltage, resistance.
Supplies talk battery-Using a unique signaling function, talk battery is supplied and communication established. Handsets or headsets may be used at both ends.
Tests Spare Pairs-Utilizing the same functions as a field test board, tests may be made for shorts, grounds, crosses, opens, splits and high resistance faults.
Tests Working Lines-Working lines may be tested for status of busy, idle, reversed, or special voltage.
Sends simplex 577 Hz tone for pair identification which is silent to subscribers.
Tone Buzz Around-Normally used prior to pair transfers, the Buzz feature allows technicians to test old and new pairs simultaneously for defects and continuity.
Cut Closed (No Break) Cable Transfers-Service may be transferred from one pair to another even while the subscriber is using the phone. There is no interruption of service.
When used as a cut closed transfer set, the 102A BUZZ tone verifies that both the old pair and the new pair are fault free, verifies that the jumper is connected properly, and holds the line in service while the actual wire work is done. The transfer operation may proceed even if the subscriber is on the phone! Operation of the BUZZ tone is completely silent to the subscriber.
The Throwmaster 102A can perform a metallic cable section throw in the same manner as a transfer
Ordering Information
Throwmaster Cable Test Set, Model 102A: Measures in feet and calibrated for AWG wire sizes.
Throwmaster Cable Test Set, Model 102AM: Measures in meters and calibrated for metric wire sizes.
Throwmaster Cable Test Set, Model 102AS: Spanish version of 102AM.
All versions are shipped complete with batteries and cords.
Specifications
`Unit Size: 8.5 x 8 x 3 inches (21.6 x 20.3 x 7.6cm) Weight: 6 lbs (2.7kg) Shipping Weight: 7lbs (3.2kg)
Optional Accessories Soft-Pak Carrying Case (P/N 1400-0135): A durable nylon case that protects the Throwmaster 102A from scuffs and scratches. Handy pockets provide space for paperwork, manuals, and extra leads.
